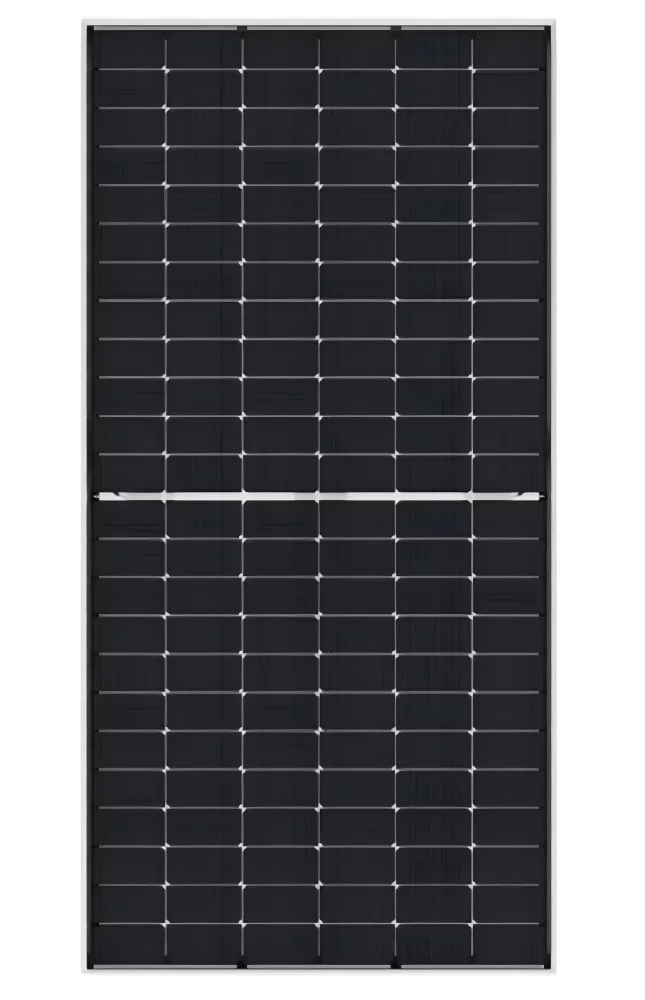

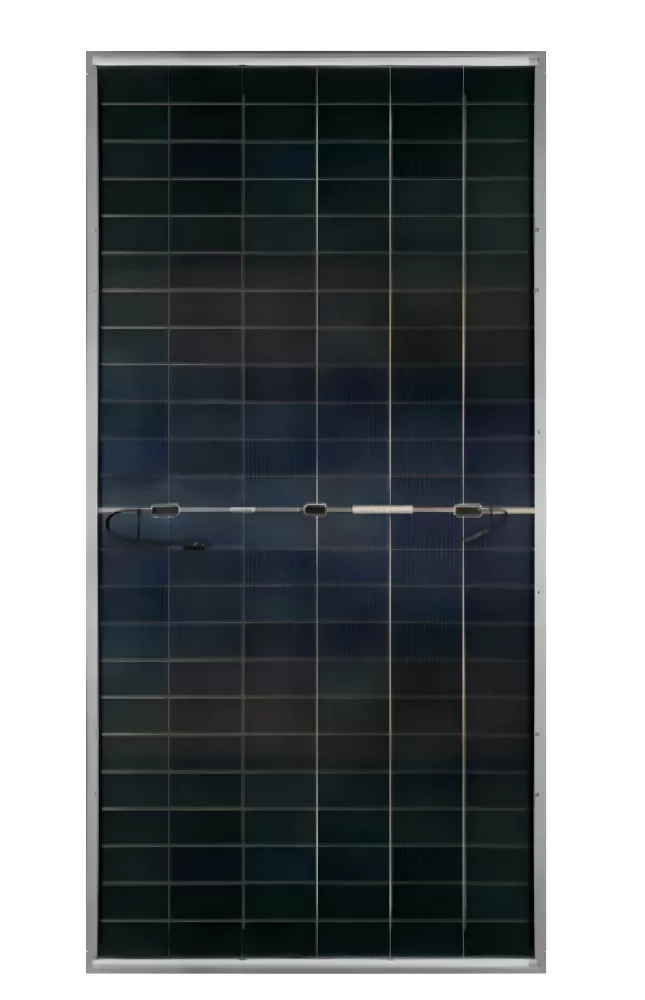

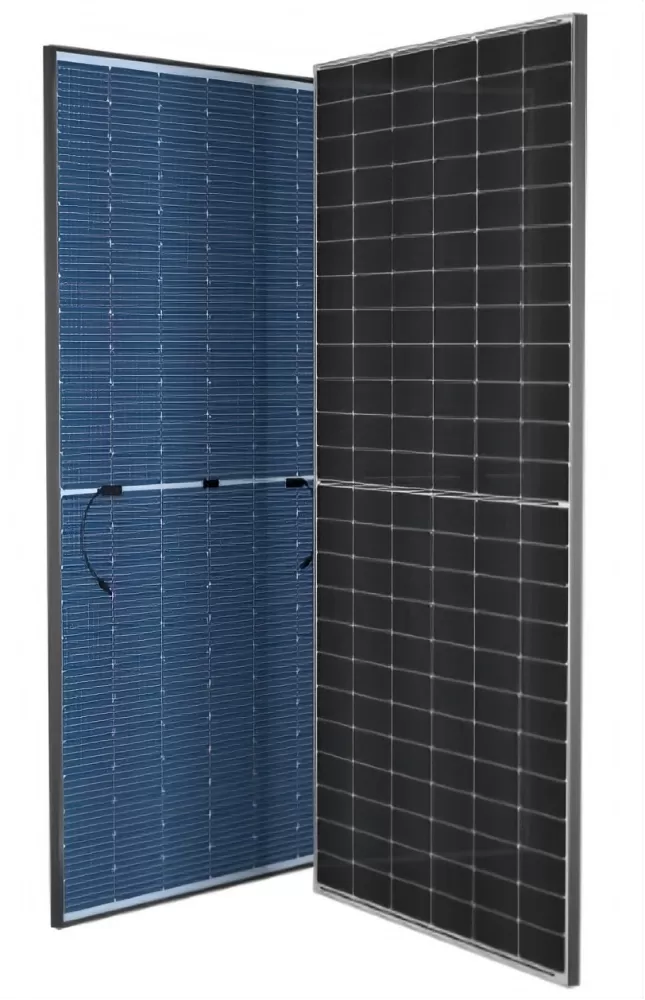

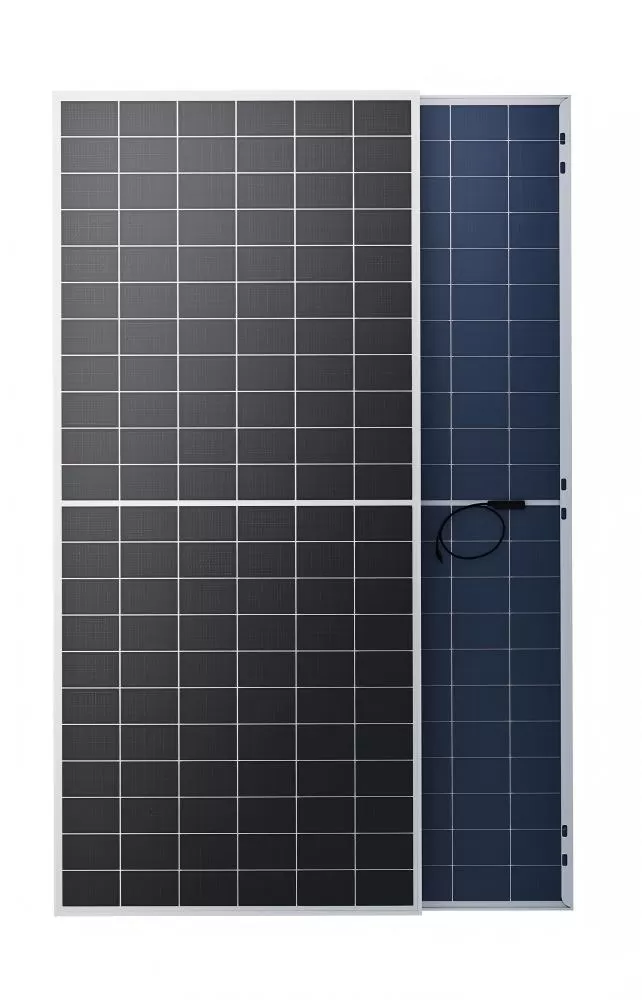

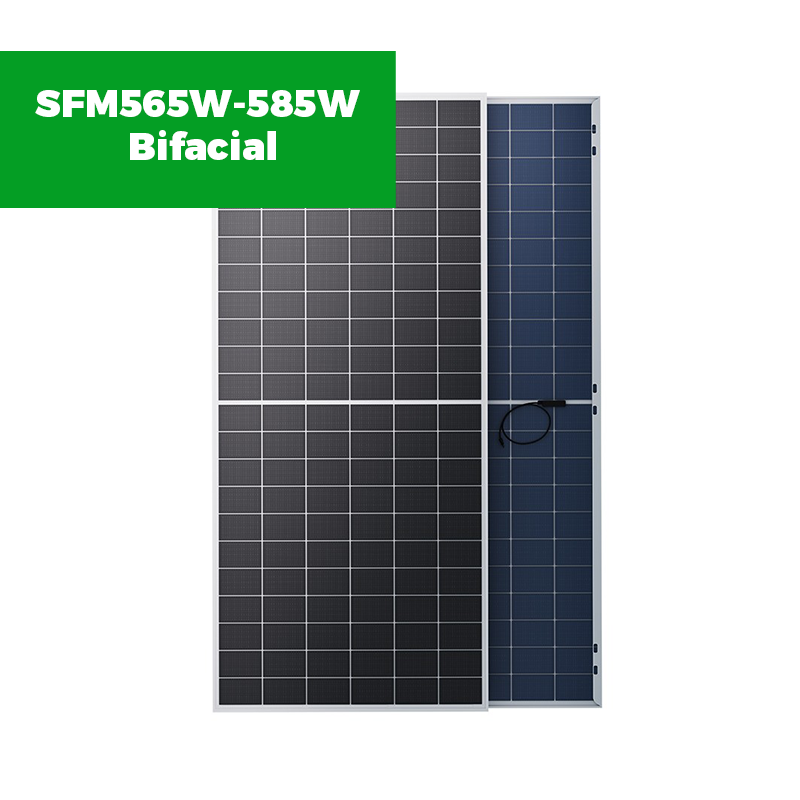

SFM565W-585W Bifacial Solar Panels Monocrystalline Half Cell Panel

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

Get a Quote Next Product

SF1-460W Solar Panels Monocrystalline Half Cell Panel

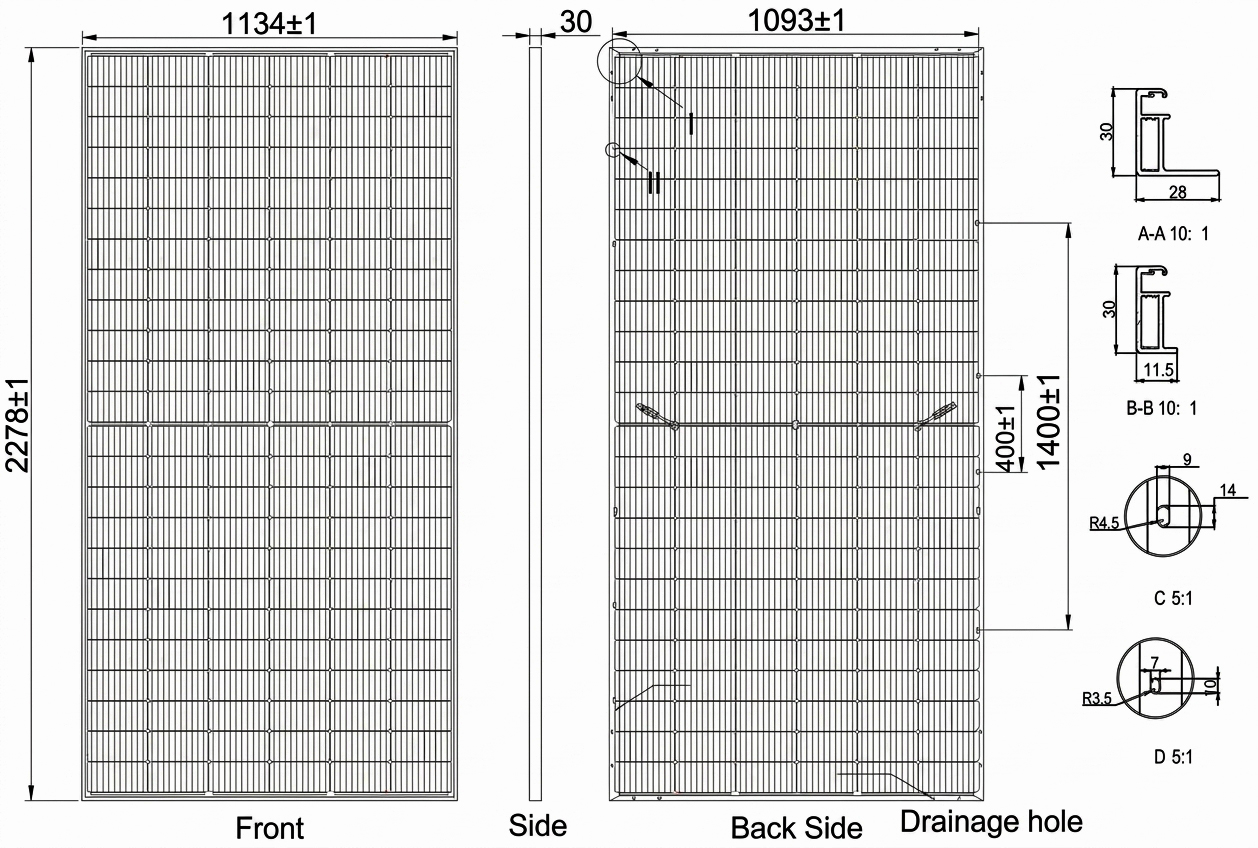

Mechanical Characteristics

Cell Type	Monocrystal 144
No. of Cells	144(72× 2)

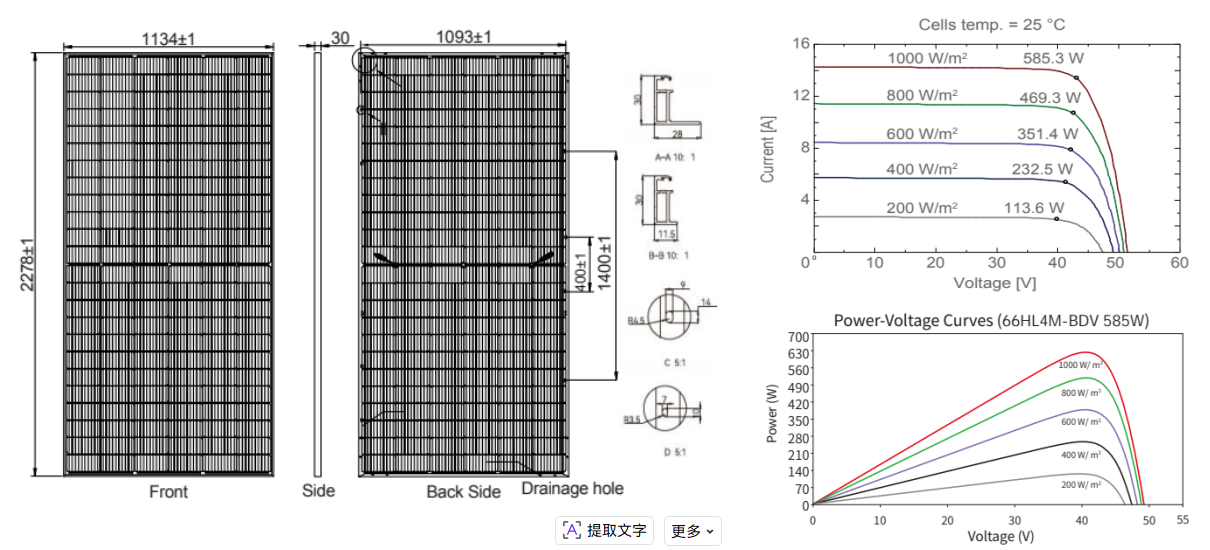

Module Dimension	2278mm1134mm30mm
Net Weight	31kgs
Front Glass	2.0 mm, Anti-reflection Coating
Back Glass	2.0 mm, Heat Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class II
IEC Fire Type	Class C
Connector Type	MC4 compatible
Output Cables	4.0 mm ² (+): 400 mm , (-): 200 mm or Customized Length

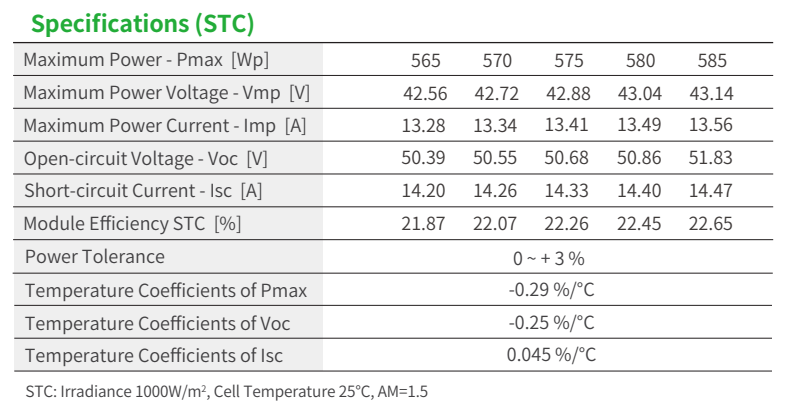

Specifications（STC）

Maximum Power - Pmax [Wp]	565	570	575	580	585
Maximum Power Voltage - Vmp [V]	42.56	42.72	42.88	43.04	43.14
Maximum Power Current - Imp [A]	13.28	13.34	13.41	13.49	13.56
Open-circuit Voltage - Voc [V]	50.39	50.55	50.68	50.86	51.83
Short-circuit Current - Isc [A]	14.20	14.26	14.33	14.40	14.47
Module Efficiency STC [%]	21.87	22.07	22.26	22.45	22.65
Power Tolerance	0 ~ + 3 %
Temperature Coefficients of Pmax	-0.29 %/°C
Temperature Coefficients of Voc	-0.25 %/°C
Temperature Coefficients of Isc	0.045 %/°C
