Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.
With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability.
Technical Data | |
| Cell Type | Monocrystal 182 |
| No. of Cells | 132(66× 2) |
| Module Dimension | 2382mm*1134mm*30mm |
| Net Weight | 32.5kg |
| Maximum power (Pmax/W) | 630W |
| Open Circuit Voltage-Voc(V) | 49.48 |
| Short Circuit Current-lsc(A) | 16.20 |
| Maximum Power Voltage (Vmp/V) | 41.02 |
| Maximum Power Current (Imp/A) | 15.36 |
Higher output power
More reliable, more stable
power generation
Less shading effect
Lower temperature coefficient
Your Best Choice for C&I Projects
High customer value
High power up to 580W
High reliability
High energy yield

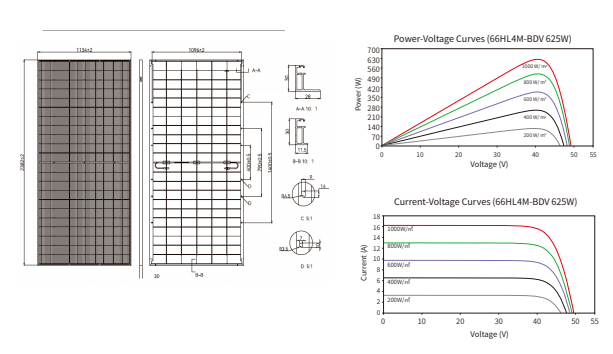

Mechanical Parameters
Cell Type: N-type PERC Monocrystalline
Number of Half Cells: 132 (66x2)
Module Size: 2382mmx1134mm x 30mm
Weight: 32.5kg
Maximum System Voltage: 1500V
Glass: 2.0mm Coated tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP68 standard
Output Cable: 4mm2
Connector: MC4 or JK03M
Electrical specifications (STC)
| Module type | SF2-605-630W | |||||
| Maximum power (Pmax/W) | 605 | 610 | 615 | 620 | 625 | 630 |
| Open Circuit Voltage-Voc(V) | 48.48 | 48.68 | 48.88 | 49.08 | 49.28 | 49.48 |
| Short Circuit Current-lsc(A) | 15.90 | 15.96 | 16.02 | 16.08 | 16.14 | 16.20 |
| Maximum Power Voltage (Vmp/V) | 40.31 | 40.46 | 40.60 | 40.74 | 40.88 | 41.02 |
| Maximum Power Current (Imp/A) | 15.01 | 15.08 | 15.15 | 15.22 | 15.29 | 15.36 |
| Module Efficiency (%) | 22.40 | 22.58 | 22.77 | 22.95 | 23.14 | 23.32 |
Electrical specifications (BNPI):
| Nominal max. power | Pmax(Wp) | 668 | 674 | 679 | 685 | 690 | 696 |
| Maximum operating voltage | Vmp(V) | 40.29 | 40.46 | 40.59 | 40.75 | 40.88 | 41.04 |
| Maximum operating current | Imp(A) | 16.58 | 16.66 | 16.73 | 16.81 | 16.88 | 16.95 |
| Open-circuit voltage | Voc(V) | 48.46 | 48.66 | 48.86 | 49.06 | 49.26 | 49.46 |
| Short-circuit current | Isc(A) | 17.56 | 17.64 | 17.70 | 17.77 | 17.83 | 17.90 |
Temperature characteristics
NOCT | 45±2°C | Temp Coefficient of Isc | +0.045%/°C |
Temp Coefficient of Voc | -0.250%/°C | Temp Coefficient of Pmax | -0.290%/°C |
Packing configuration
Packaging box dimensions (L*W*H) | 2405mm*1110mm*1260mm | Box weight | 1188kg |
Modules/Pallet | 36 Pieces | Modules/40’Container | 720 Pieces |
