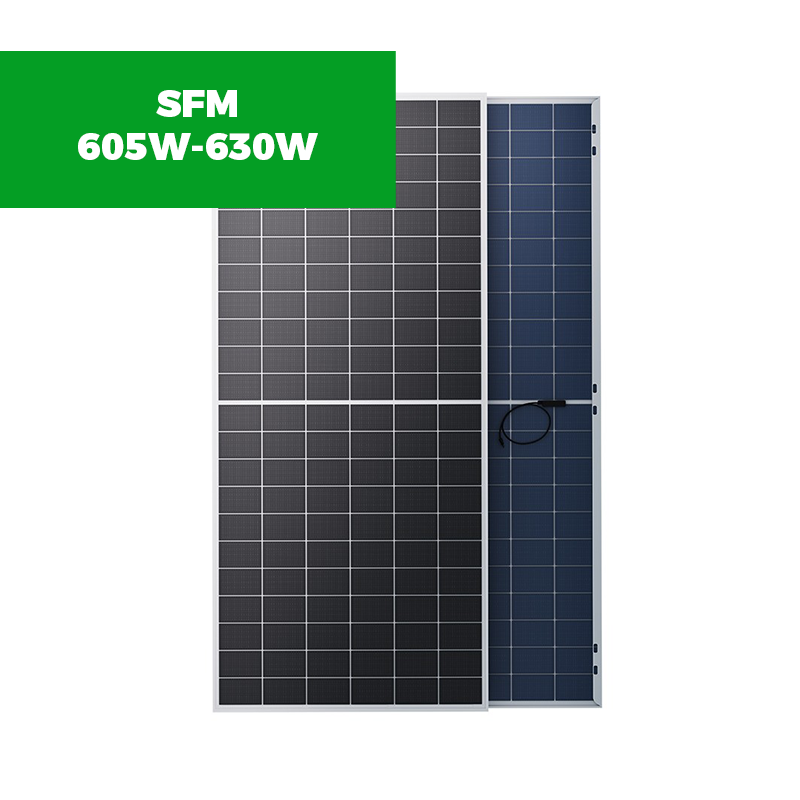

SFM605W-630W Solar Panels Monocrystalline Half Cell Panel

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

SF1-460W Solar Panels Monocrystalline Half Cell Panel

Mechanical Characteristics

No. of cells	132（ 66×2 )
Dimensions	2382×1134×30 mm
Weight	32.5 kg
Front Glass	2.0 mm, Anti-reflection Coating
Back Glass	2.0 mm, Heat Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class II
IEC Fire Type	Class C
Connector Type	MC4 compatible
Output Cables	4.0 mm ² (+): 400 mm , (-): 200 mm or Customized Length

Specifications

Maximum Power - Pmax [Wp]	605	610	615	620	625	630
Maximum Power Voltage - Vmp [V]	40.31	40.46	40.60	40.74	40.88	41.02
Maximum Power Current - Imp [A]	15.01	15.08	15.15	15.22	15.29	15.36
Open-circuit Voltage - Voc [V]	48.48	48.68	48.88	49.08	49.28	49.48
Short-circuit Current - Isc [A]	15.90	15.96	16.02	16.08	16.14	16.20
Module Efficiency STC [%]	22.40	22.58	22.77	22.95	23.14	23.32
Power Tolerance	0 ~ + 3 %
Temperature Coefficients of Pmax	-0.29 %/°C
Temperature Coefficients of Voc	-0.25 %/°C
Temperature Coefficients of Isc	0.045 %/°C

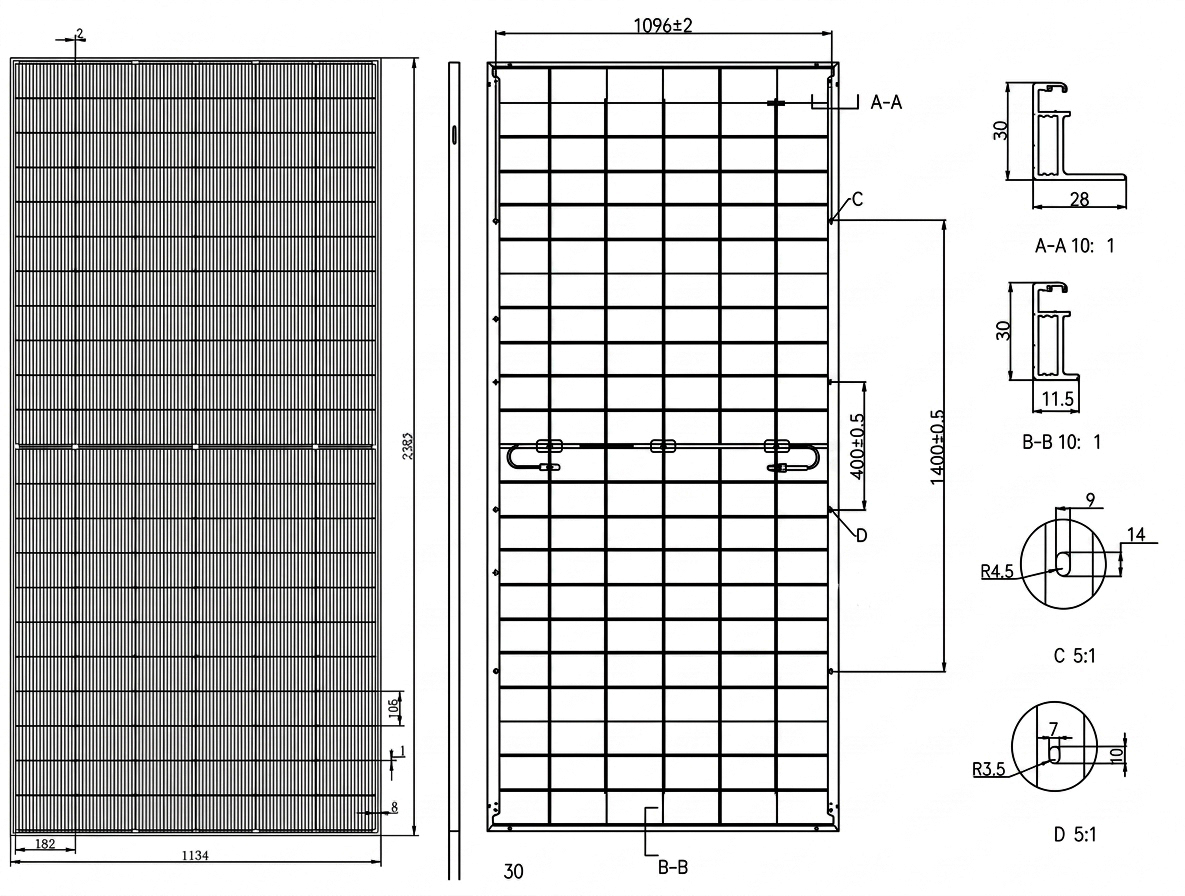

Engineering Drawings


Mechanical Parameters

Cell Type: N-type PERC Monocrystalline

Number of Half Cells: 132 (66x2)

Module Size: 2382mmx1134mm x 30mm

Weight: 32.5kg

Maximum System Voltage: 1500V

Glass: 2.0mm Coated tempered glass

Frame: Anodized aluminum alloy

Junction Box: IP68 standard

Output Cable: 4mm²

Connector: MC4 or JK03M

Electrical specifications (STC)

Module type	SF2-605-630W
Maximum power (Pmax/W)	605	610	615	620	625	630
Open Circuit Voltage-Voc(V)	48.48	48.68	48.88	49.08	49.28	49.48
Short Circuit Current-lsc(A)	15.90	15.96	16.02	16.08	16.14	16.20
Maximum Power Voltage (Vmp/V)	40.31	40.46	40.60	40.74	40.88	41.02
Maximum Power Current (Imp/A)	15.01	15.08	15.15	15.22	15.29	15.36
Module Efficiency (%)	22.40	22.58	22.77	22.95	23.14	23.32

Electrical specifications (BNPI):

Nominal max. power	Pmax(Wp)	668	674	679	685	690	696
Maximum operating voltage	Vmp(V)	40.29	40.46	40.59	40.75	40.88	41.04
Maximum operating current	Imp(A)	16.58	16.66	16.73	16.81	16.88	16.95
Open-circuit voltage	Voc(V)	48.46	48.66	48.86	49.06	49.26	49.46
Short-circuit current	Isc(A)	17.56	17.64	17.70	17.77	17.83	17.90

Temperature characteristics

NOCT	45±2°C	Temp Coefficient of Isc	+0.045%/°C
Temp Coefficient of Voc	-0.250%/°C	Temp Coefficient of Pmax	-0.290%/°C

Packing configuration

Packaging box dimensions

(L*W*H)

2405mm*1110mm*1260mm

Box weight

1188kg

Modules/Pallet

36 Pieces

Modules/40’Container

720 Pieces
