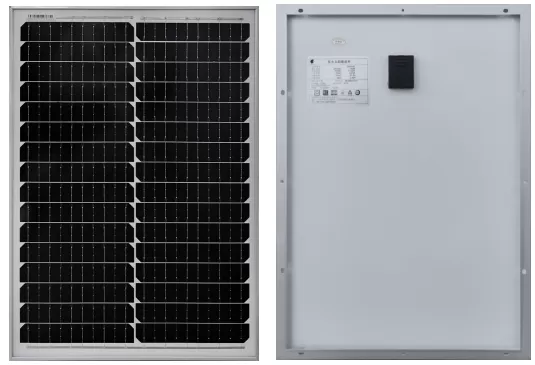

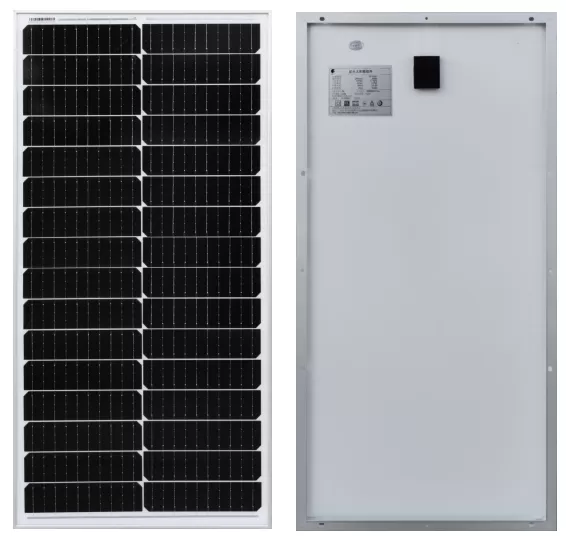

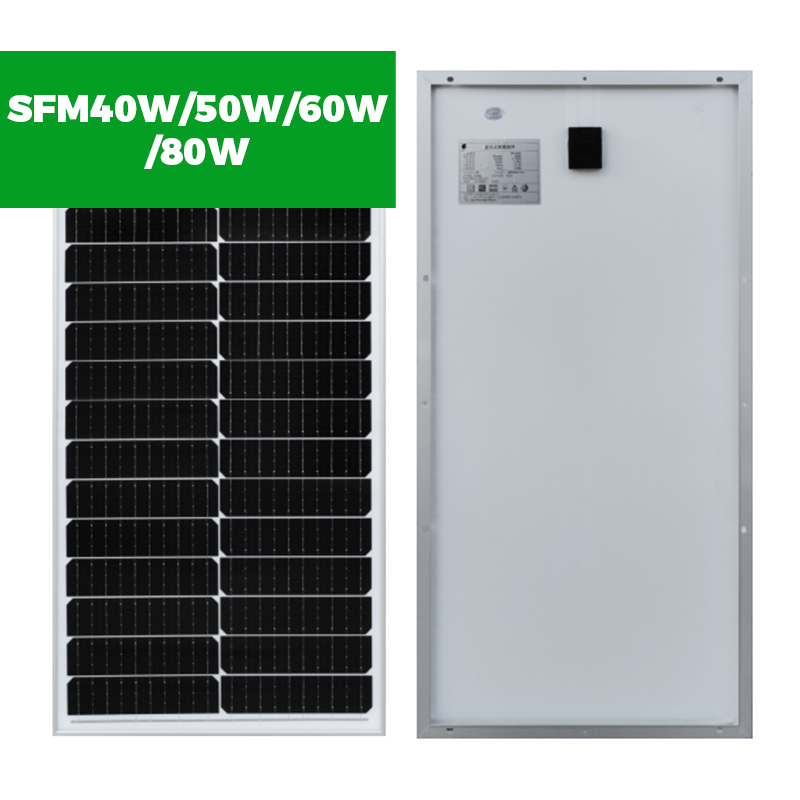

SFM40W/50W/60W/80W Solar Panels Monocrystalline Multi-busbar Solar Module

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

Get a Quote Next Product

OVERVIEWDATASHEET DOWNLOAD

SF1-80W Solar Panels Monocrystalline Multi-busbar Solar Module Cell182 卖点.png

Mechanical Characteristics

Power	40W	50W	60W	80W
No. of Cell	32（2*16）	32（2*16）	32（2*16）	32（4*8）
Dimension	56040017mm	66040017mm	80040017mm	55076017mm
Weight	1.57 Kgs	1.86 Kgs	2.23 Kgs	2.85 Kgs
Front Glass	2.0 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	PV-SY017 rated，IP64

Specifications

Model Type	SFM-40	SFM-50	SFM-60	SFM-80
Maximum Power	40W	50W	60W	80W
Optimum Operating Voltage	17.92V
Open - Circuit Voltage	21.5V
Optimum Operating Current	2.23A	2.79A	3.35A	4.46A
Short - Circuit Current	2.46A	3.07A	3.68A	4.91A
Maximum System Voltage	1000 VDC

Project Cases

Singfo solar case (2).jpg

Singfo solar case (1).jpg
