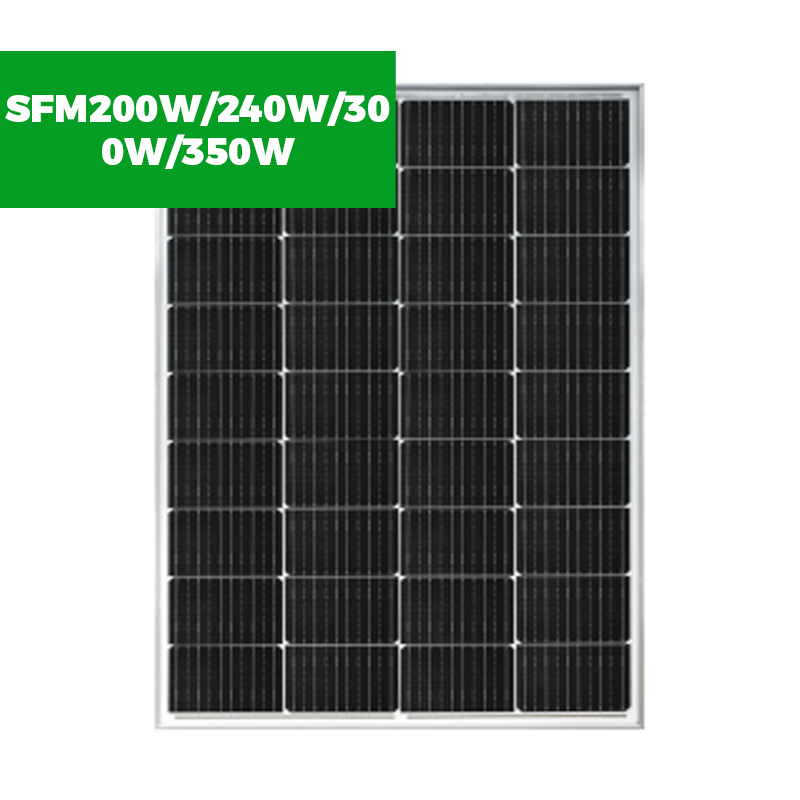

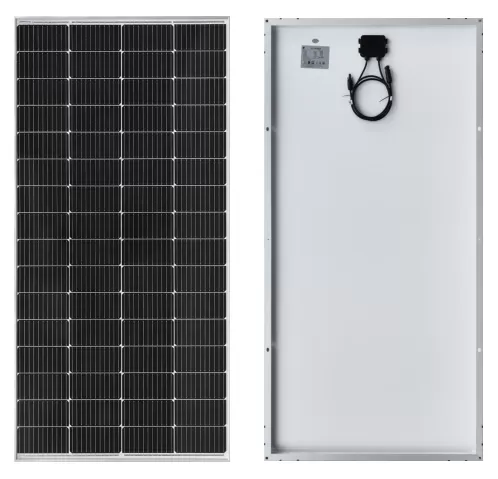

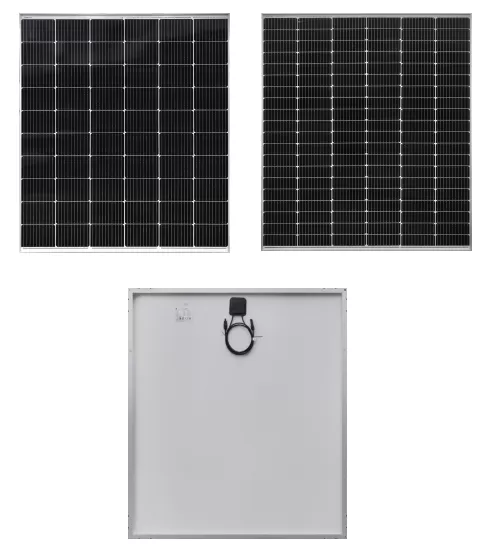

SFM200W/240W/300W/350W Solar Panels Monocrystalline Multi-busbar Solar Module

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

Get a Quote Next Product

OVERVIEWDATASHEET DOWNLOAD

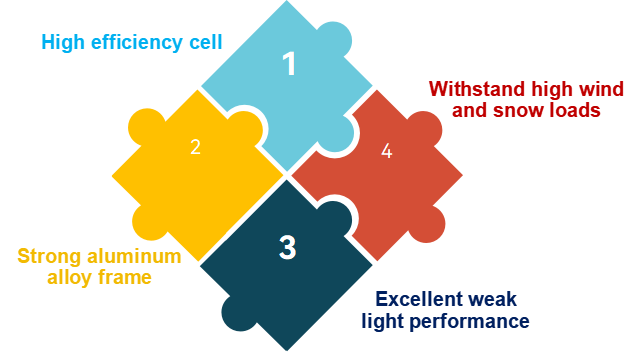

SF1-80W Solar Panels Monocrystalline Multi-busbar Solar Module Cell182 卖点.png

Mechanical Characteristics

Power	200W	240W	300W	350W
No. of Cell	36(49)/72(418)	64(4*16)	60(610)/120(620)	70(5*14)
Dimension	117078030mm	153576030mm	1290113430mm	178096030mm
Weight	8.55Kgs	11.45Kgs	14.85Kgs	16.5Kgs
Front Glass	3.2 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	SY-005 rated，IP65		SY-019 rated，IP68

Specifications

Model Type	SFM-200	SFM-240	SFM-300	SFM-350
Maximum Power	200W	240W	300W	350W
Optimum Operating Voltage	18V	35.84V	33.6V	39.2V
Open - Circuit Voltage	21.6V	43.0V	40.32V	47.04V
Optimum Operating Current	11.11A	6.70A	8.93A	8.93A
Short - Circuit Current	12.22A	7.37A	9.82A	9.82A
Maximum System Voltage	1000 VDC

Project Cases

Singfo solar case (2).jpg

Singfo solar case (1).jpg

WANT TO SPEAK TO US?

We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.

Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
