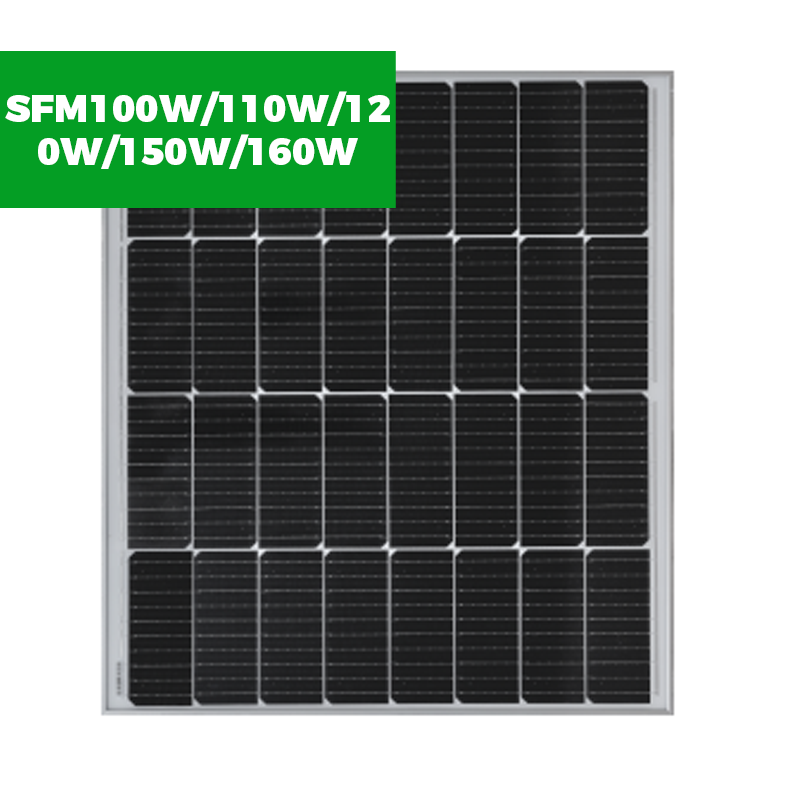

SFM100W/110W/120W/150W/160W Solar Panels Monocrystalline Multi-busbar Solar Module

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.

Get a Quote Next Product

OVERVIEWDATASHEET DOWNLOAD

SF1-80W Solar Panels Monocrystalline Multi-busbar Solar Module Cell182 卖点.png

Mechanical Characteristics

Power	100W	110W	120W	150W	160W
No. of Cell	32(4*8)	30(3*10)	32(4*8)	36(4*9)	32(48)/64(416)
Dimension	76065025mm	97058025mm	80076030mm	89078030mm	104076030mm
Weight	3.75Kgs	4.25Kgs	6.14Kgs	7Kgs	8.14Kgs
Front Glass	2.0 mm tempered glass		3.2 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	SY-005 rated，IP65

Specifications

Model Type	SFM-100	SFM-110	SFM-120	SFM-150	SFM-160
Maximum Power	100W	110W	120W	150W	160W
Optimum Operating Voltage	17.92V	16.8V	17.92V	18V	17.92V
Open - Circuit Voltage	21.5V	20.16V	21.5V	21.6V	21.5V
Optimum Operating Current	5.58A	6.55A	6.70A	8.33A	8.93A
Short - Circuit Current	6.14A	7.20A	7.37A	9.16A	9.82A
Maximum System Voltage	1000 VDC

Project Cases

Singfo solar case (2).jpg

Singfo solar case (1).jpg

WANT TO SPEAK TO US?

We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.

Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.

GET IN TOUCH
