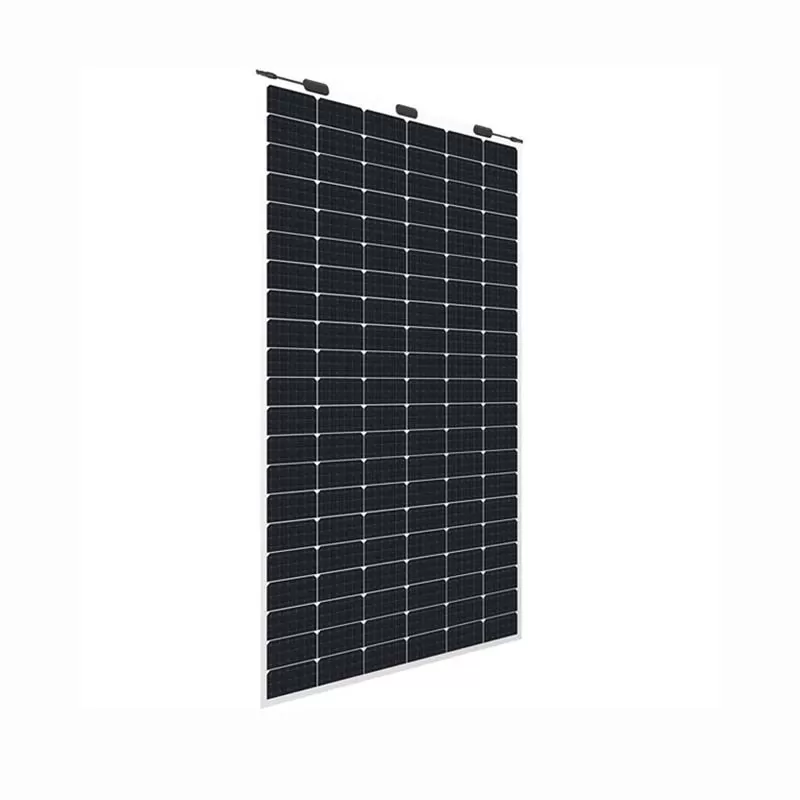

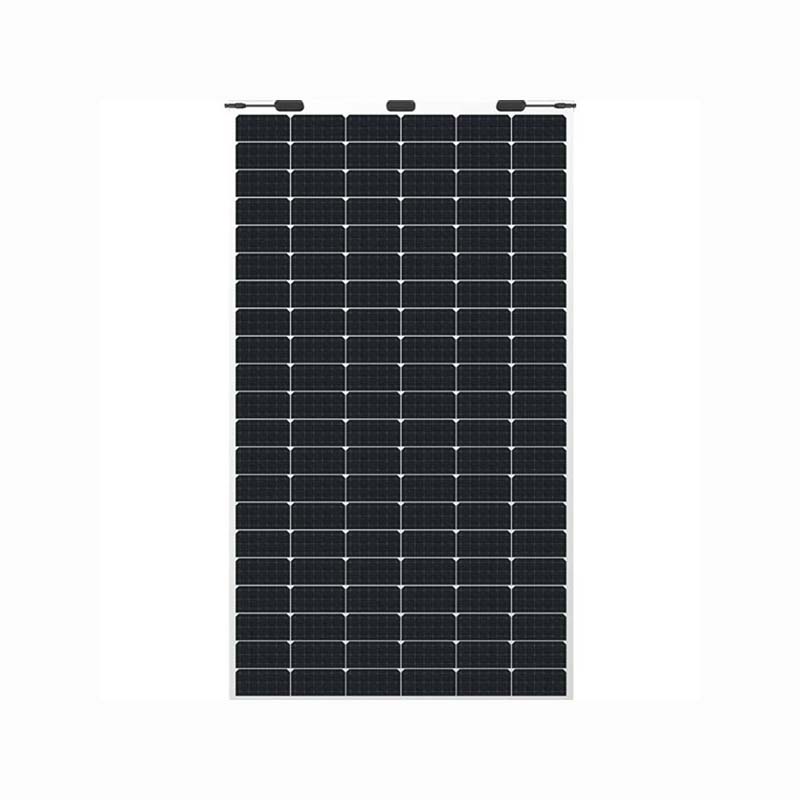

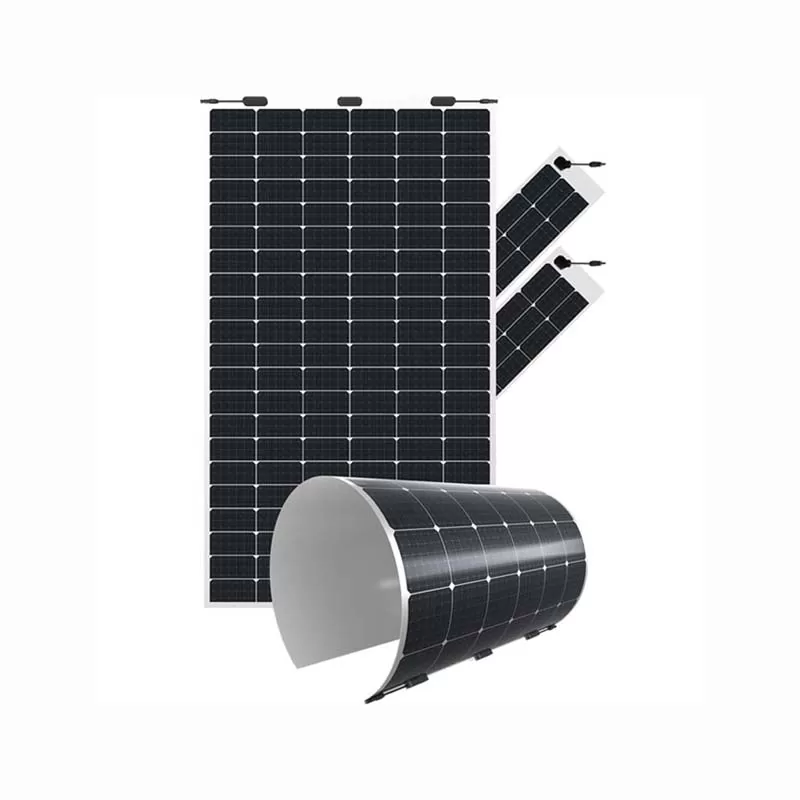

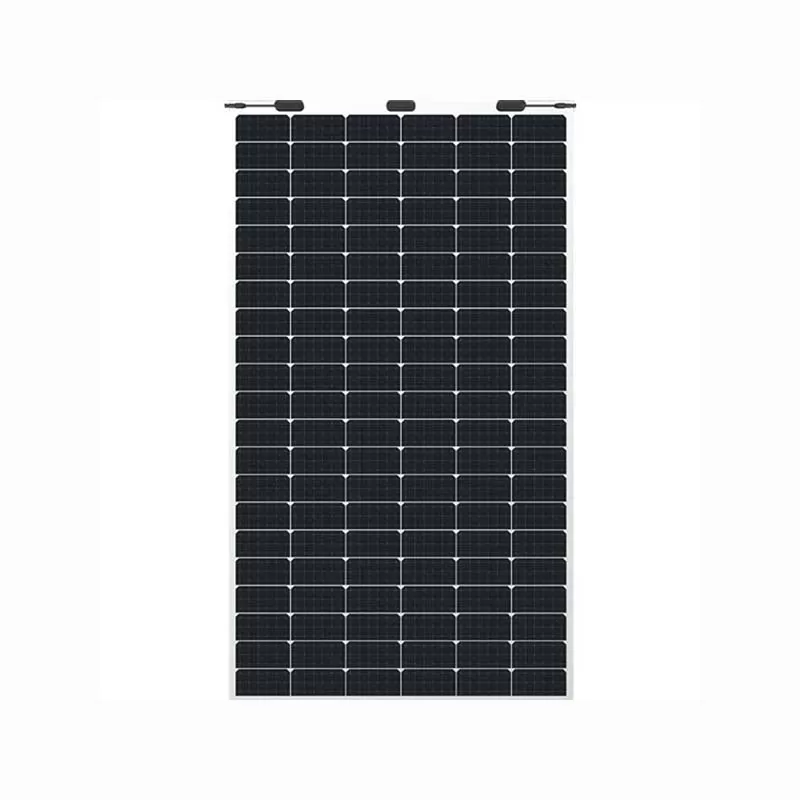

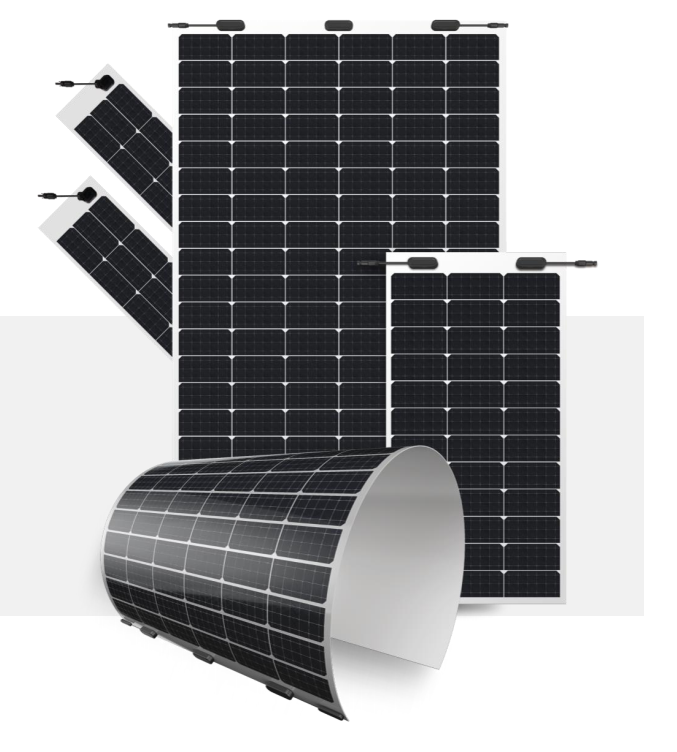

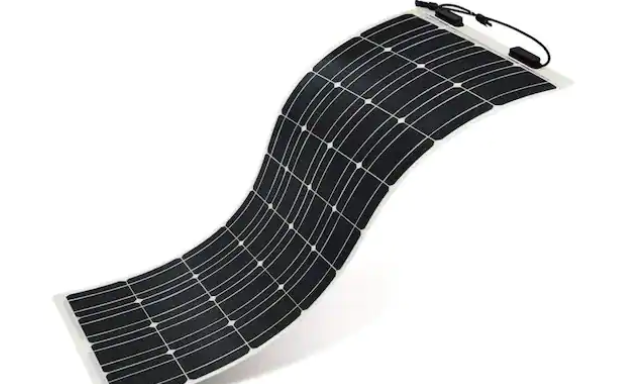

S-Flex solar module --Developed specifically for distributed photovoltaics. The weight is only 30% of conventional glass solar module and the installation efficiency is increased by 60%, which effectively solved the load bearing problems of the roof top.

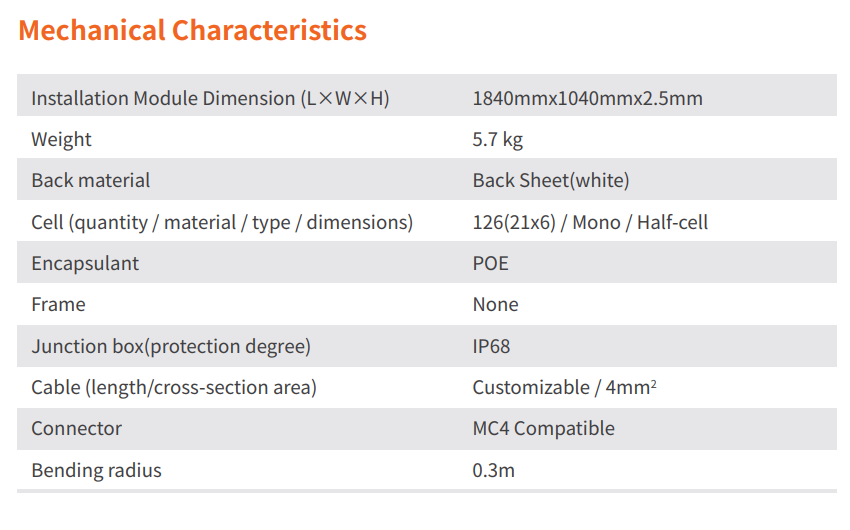

| Technical Data | |
| Cell Type | Monocrystal 166 |
| No. of Cells | 126(21×6) |

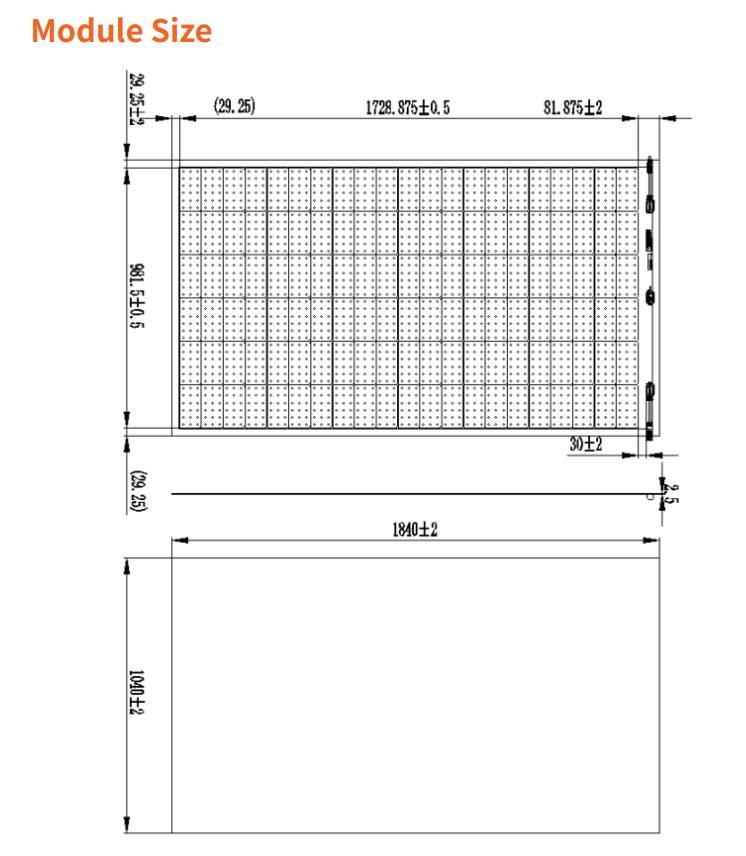

| Module Dimension | 1840*1040*2.5mm |
| Net Weight | 5.7Kgs |
| Maximum power (Pmax/W) | 370W |
| Open Circuit Voltage-Voc(V) | 43.1 |
| Short Circuit Current-lsc(A) | 11.02 |
| Maximum Power Voltage (Vmp/V) | 35.2 |
| Maximum Power Current (Imp/A) | 10.52 |

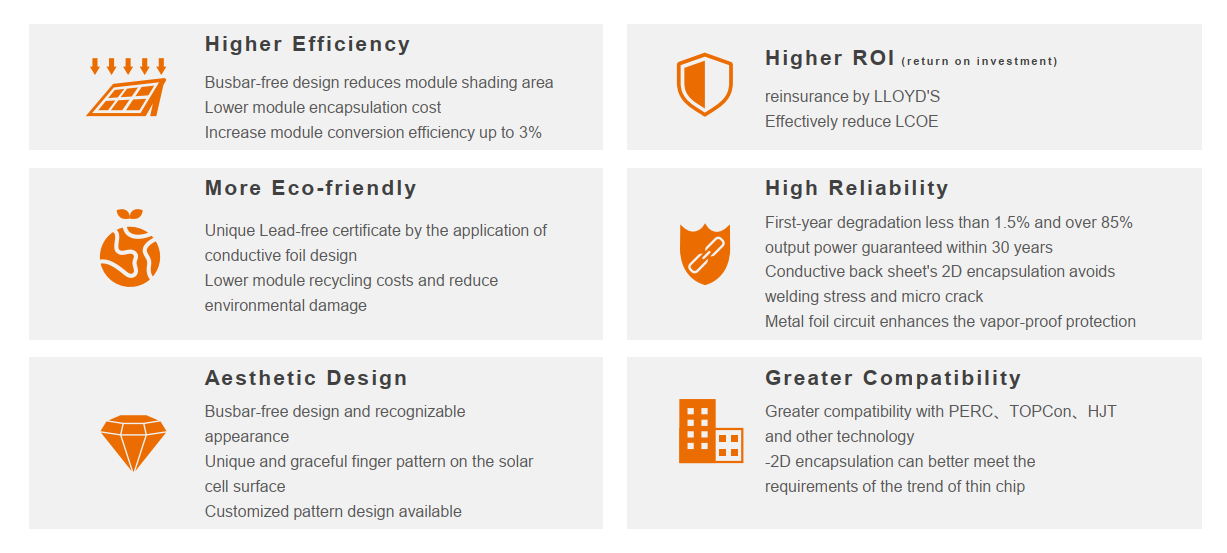

Excellent anti-LeTID &anti-PID performance. Low power degradation, high energy yield
Better choice for ultra thin wafer applications
Aesthetic Design, lead free contamination

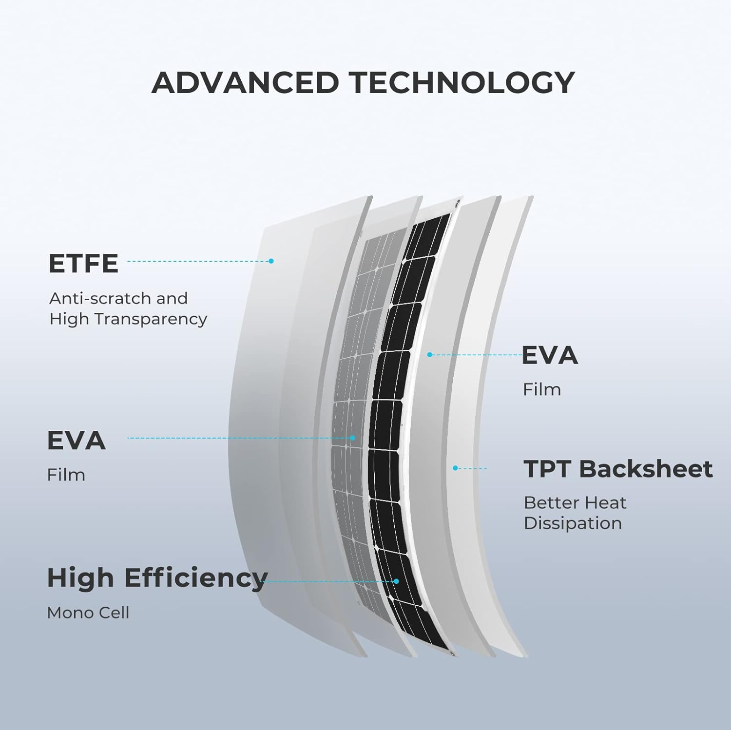

Lower encapsulation loss, and increase module efficiency
Lower operating temperature, higher output

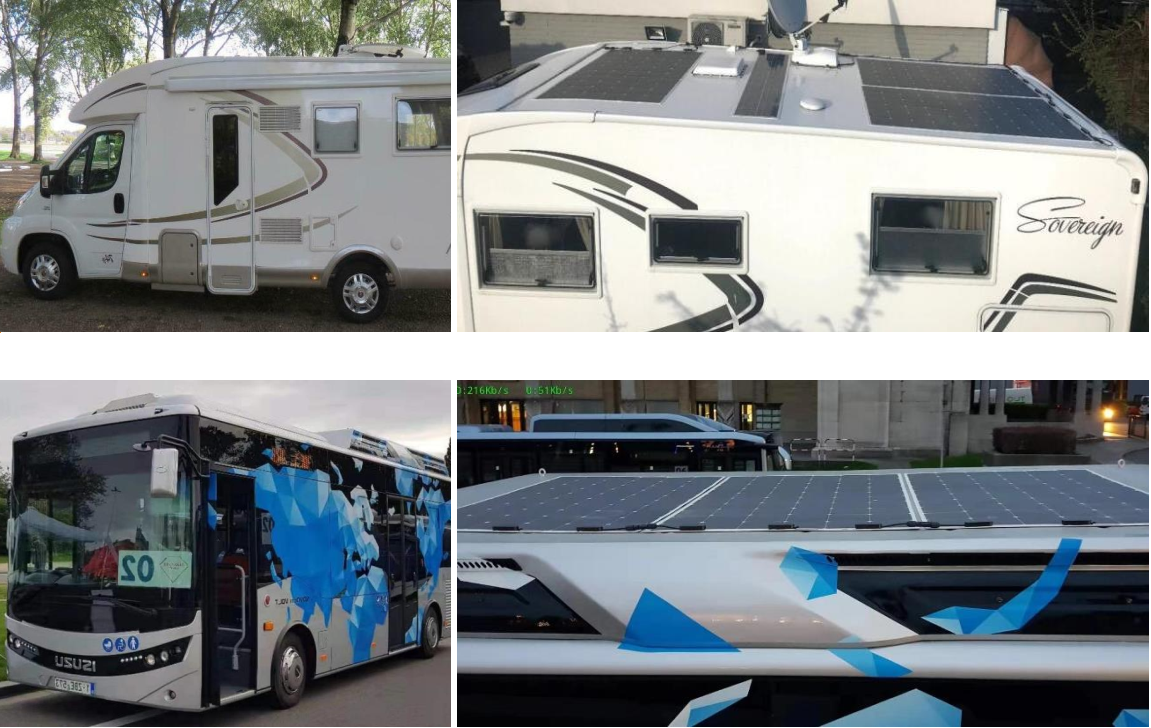

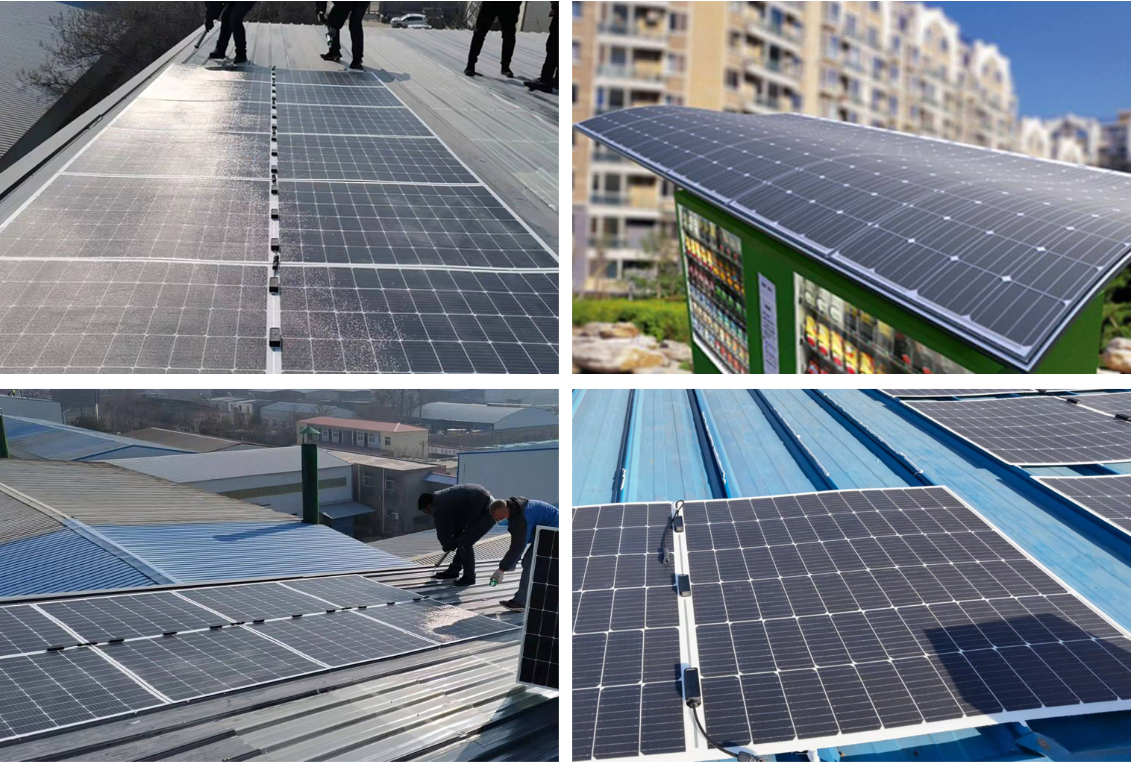

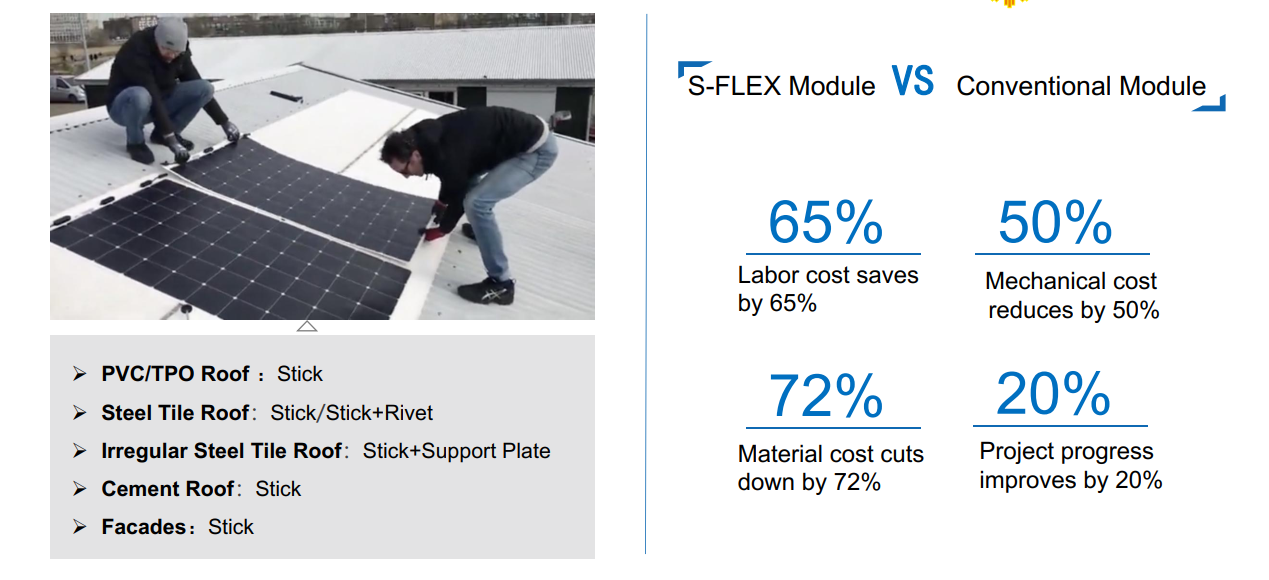

Project Cases
ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF3-355-375W | |||||
| Maximum power (Pmax/W) | 355 | 360 | 365 | 370 | 375 | |
| Open Circuit Voltage-Voc(V) | 42.5 | 42.7 | 42.9 | 43.1 | 43.3 | |
| Short Circuit Current-lsc(A) | 10.76 | 10.85 | 10.94 | 11.02 | 11.09 | |
| Maximum Power Voltage (Vmp/V) | 34.6 | 34.8 | 35.0 | 35.2 | 35.4 | |
| Maximum Power Current (Imp/A) | 10.27 | 10.36 | 10.44 | 10.52 | 10.06 | |
| Module Efficiency (%) | 20.9 | 21.2 | 21.5 | 21.8 | 22.1 | |
WANT TO SPEAK TO US?
We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.
Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
