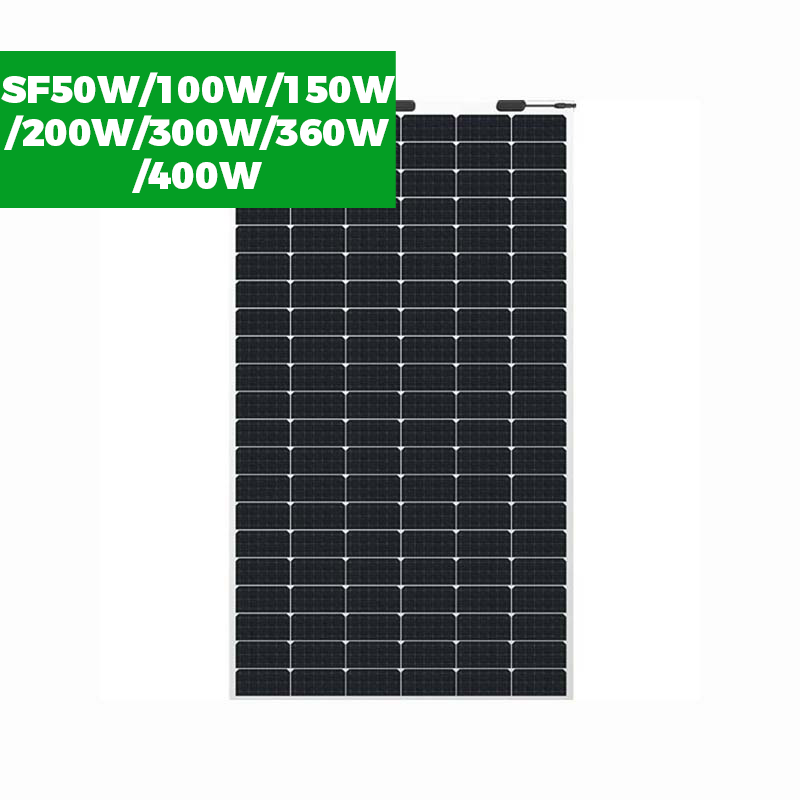

SF50W/100W/150W/200W/300W/360W/400W Flexible Solar Panels Monocrystalline PERC Lightweight Module

S-Flex solar module --Developed specifically for distributed photovoltaics. The weight is only 30% of conventional glass solar module and the installation efficiency is increased by 60%, which effectively solved the load bearing problems of the roof top.

Specification

Power	50W	100W	150W	200W	300W	360W	400W
Power Tolerance	±5%
Operating Voltage	18V
Lifespan	Lifespan5 year，1 year warranty
Operating Voltage	18±0.1V
Operating Current	2.7A±0.5A	5.5A±0.5A	8.3A±0.5A	11A±0.5A	16.6A±0.5A	20A±0.5A	22.2A±0.5A
Short-circuit Current	3.14A±0.5A	6.04A±0.5A	9.14A±0.5A	11.74A±0.5A	17.14A±0.5A	20.98A±0.5A	22.98A±0.5A
Open-circuit Voltage	21.6V±0.8V
Temperature Coefficient Voltage	(0.065±0.015)%/℃
Maximum System Voltage	1000V
Dimension	6405402mm	10305202mm	11306802mm	15206802mm	152010102mm	19509802mm	202010102mm
Efficiency	14.47%	18.67%	19.52%	19.35%	19.54%	18.84%	19.6%


SF3-370W Flexible Solar Panels Monocrystalline PERC Lightweight Module

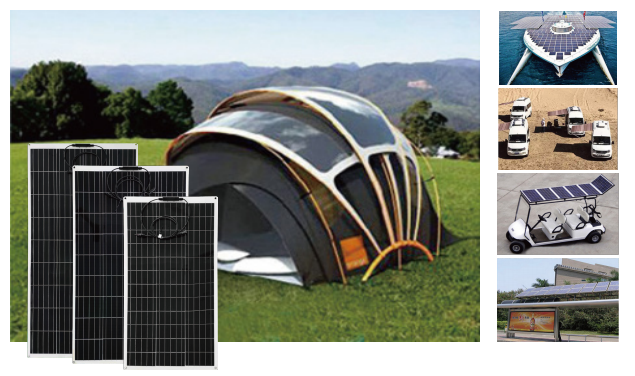

Project Cases

SF3-370W Flexible Solar Panels Monocrystalline PERC Lightweight Module

ELECTRIC CHARACTERISTICS (STC Test)

Module type	SF3-355-375W
Maximum power (Pmax/W)	355	360	365	370	375
Open Circuit Voltage-Voc(V)	42.5	42.7	42.9	43.1	43.3
Short Circuit Current-lsc(A)	10.76	10.85	10.94	11.02	11.09
Maximum Power Voltage (Vmp/V)	34.6	34.8	35.0	35.2	35.4
Maximum Power Current (Imp/A)	10.27	10.36	10.44	10.52	10.06
Module Efficiency (%)	20.9	21.2	21.5	21.8	22.1
