| Technical Data | |
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |

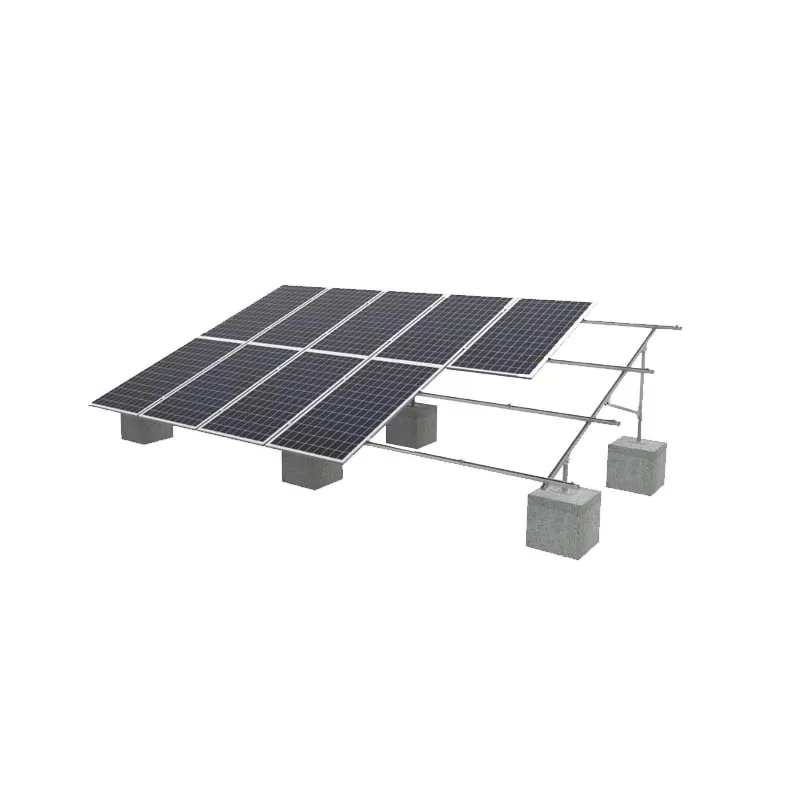

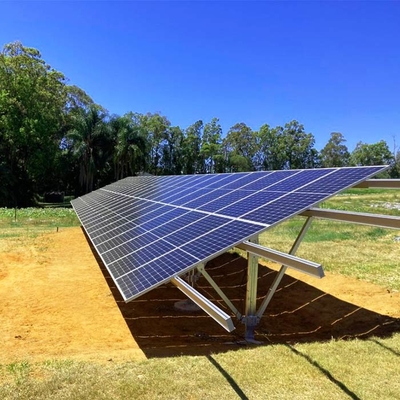

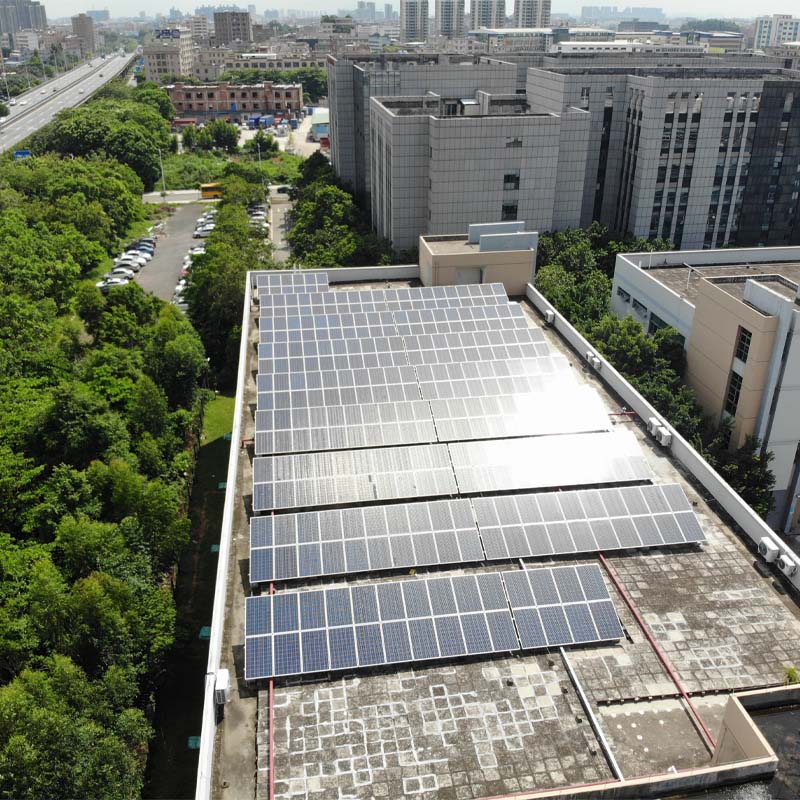

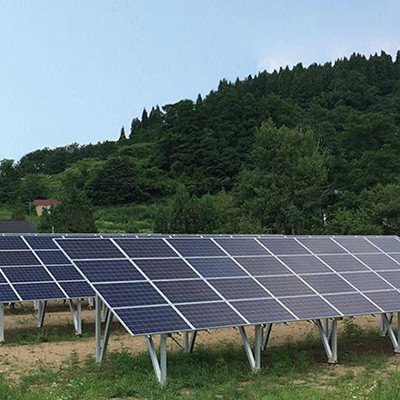

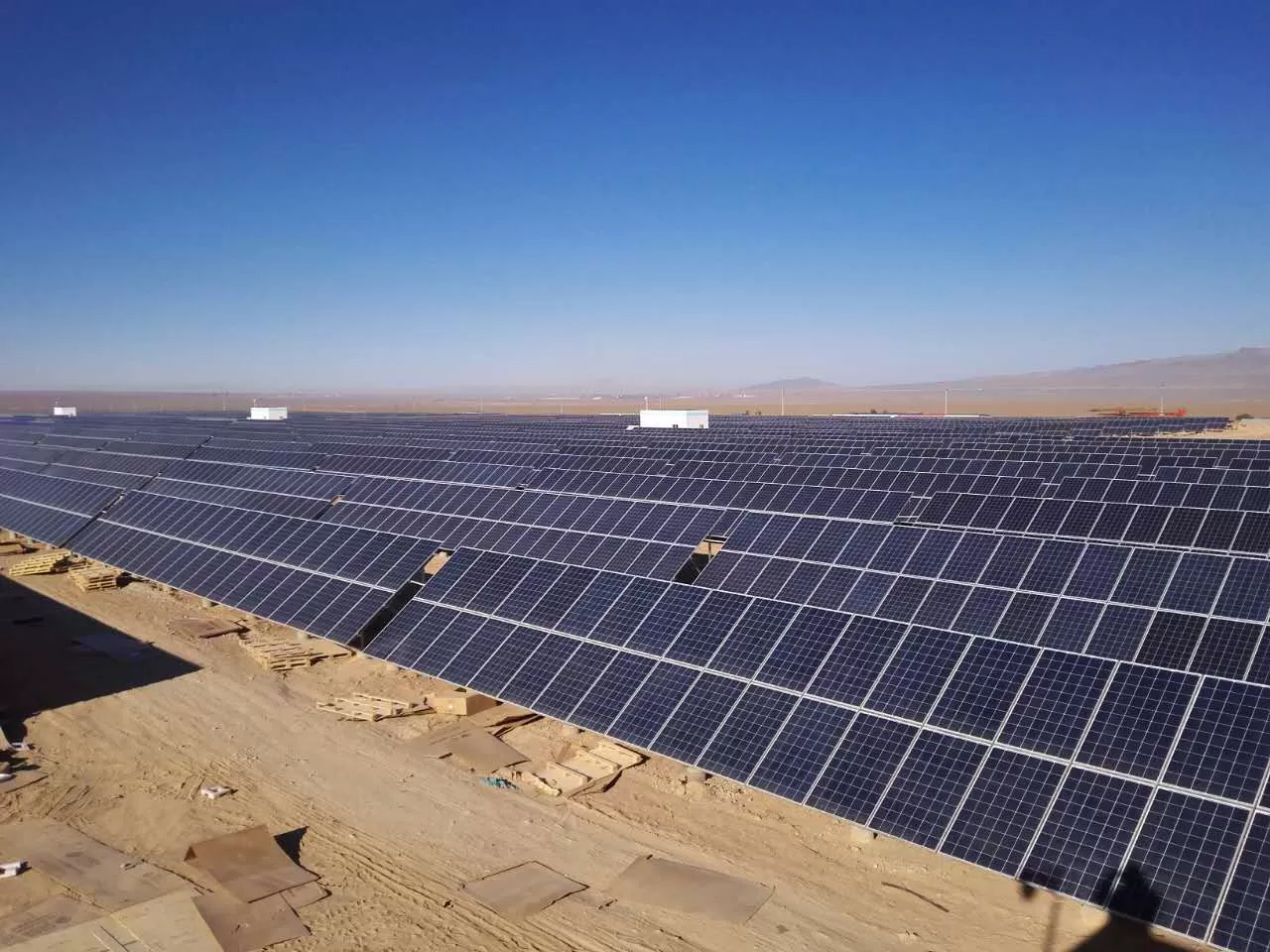

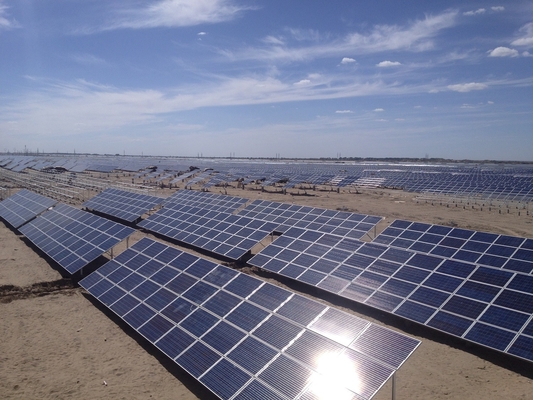

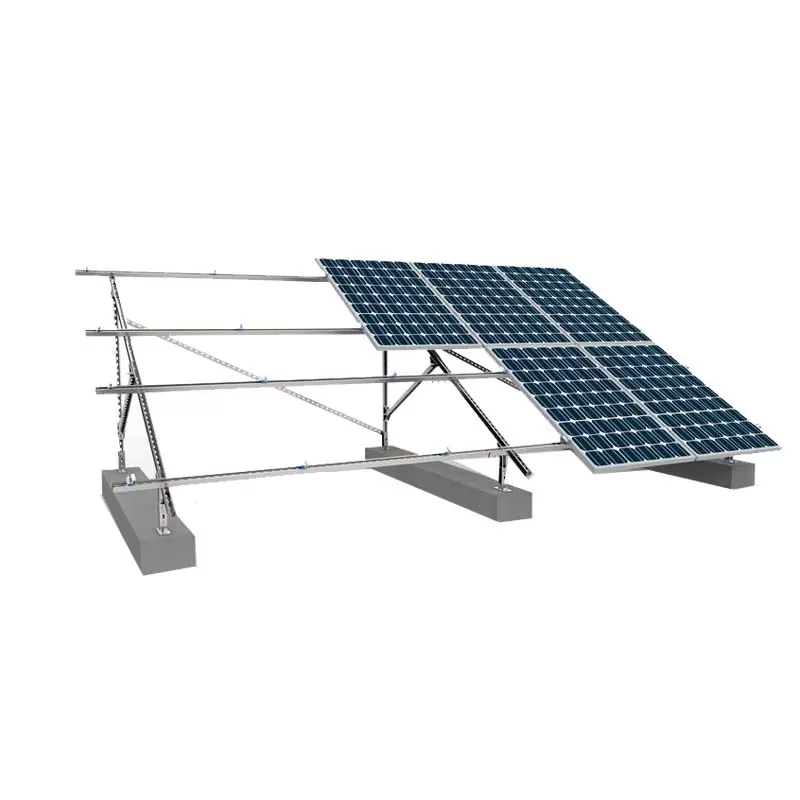

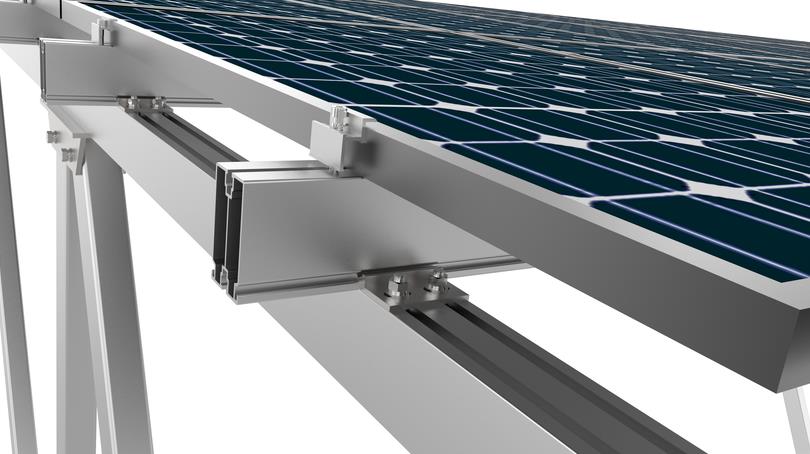

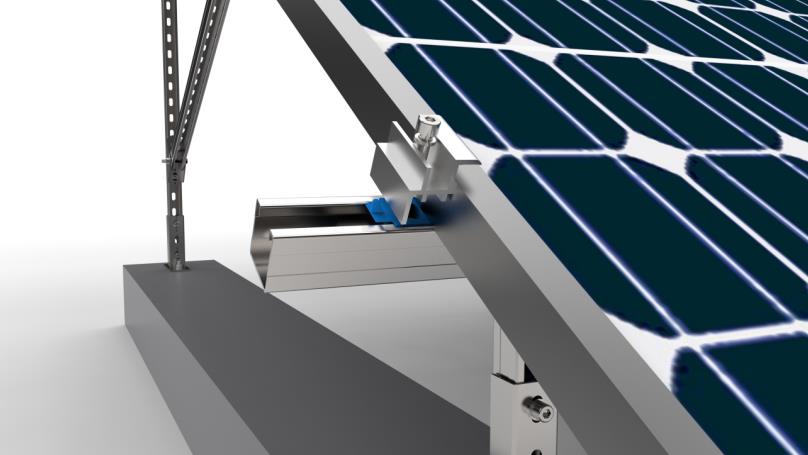

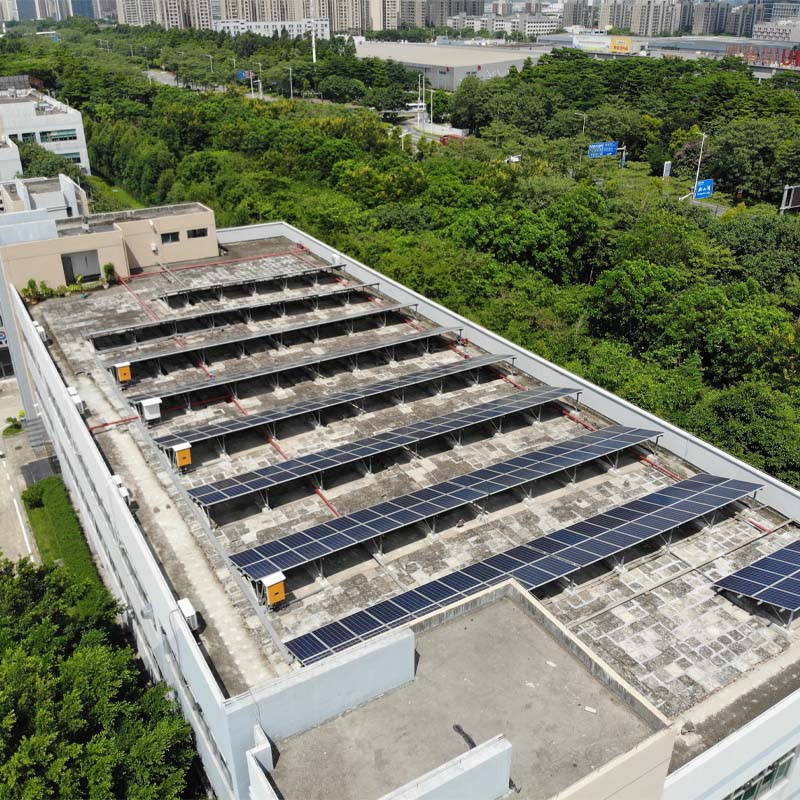

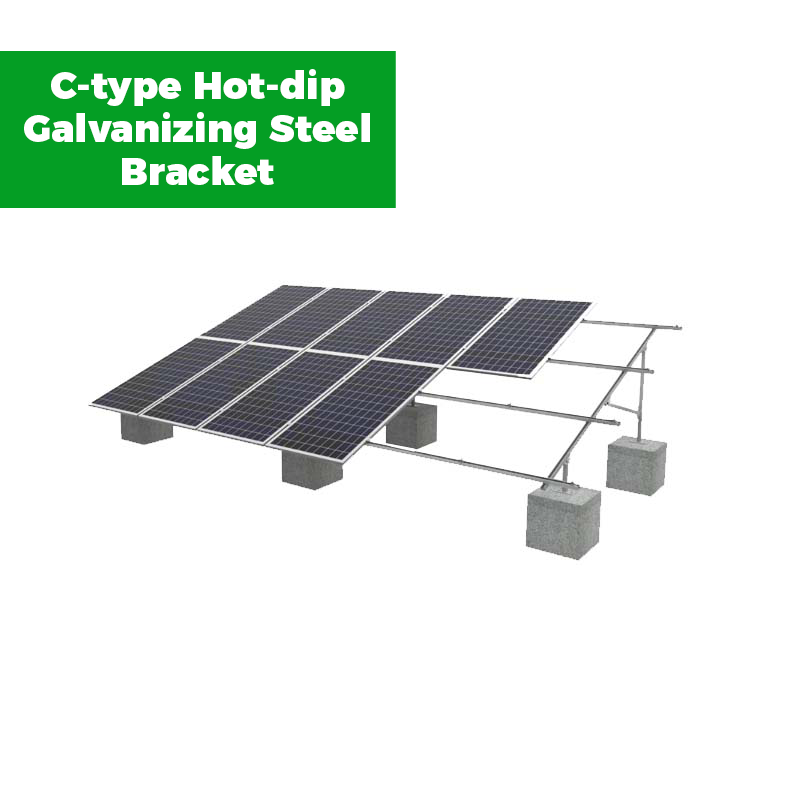

Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high corrosion resistance performance, the structure strength and the appearance.
Depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.
