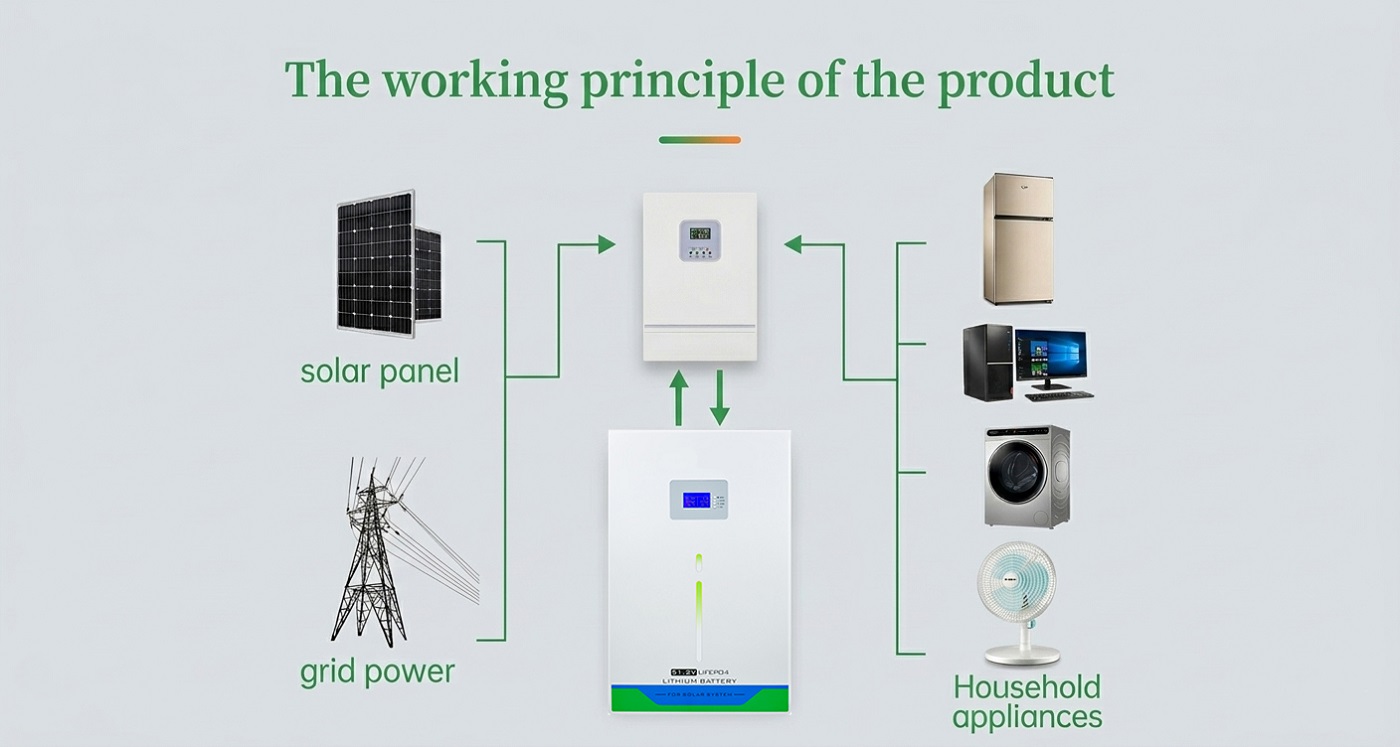

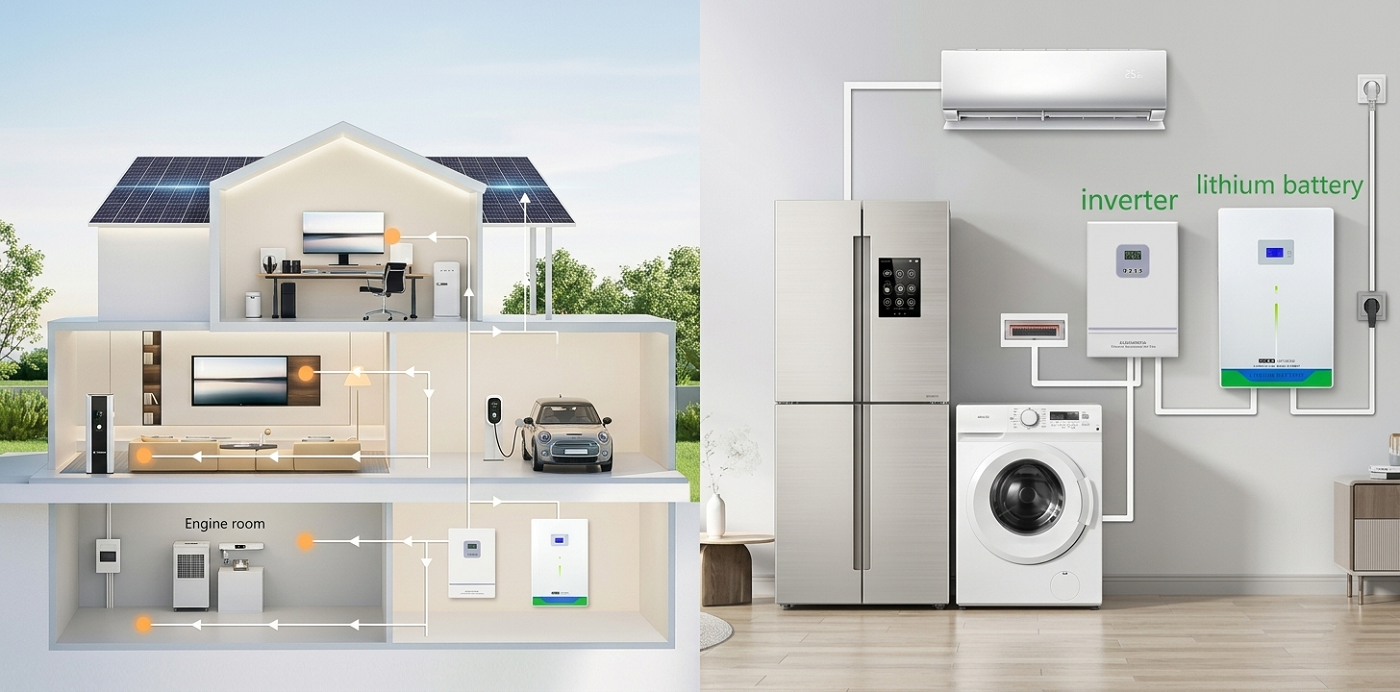

Covering 2.56V-51.2V voltage, with a capacity of 2.56kWh-14.3kWh, it is designed for home energy storage, off-grid photovoltaic and emergency power supply. LiFePO4 cells are used, with a cycle life of ≥ 5000 times (standard charging and discharging at room temperature), supporting 100A-200A high-current charging and discharging, and adapting to high-power loads.

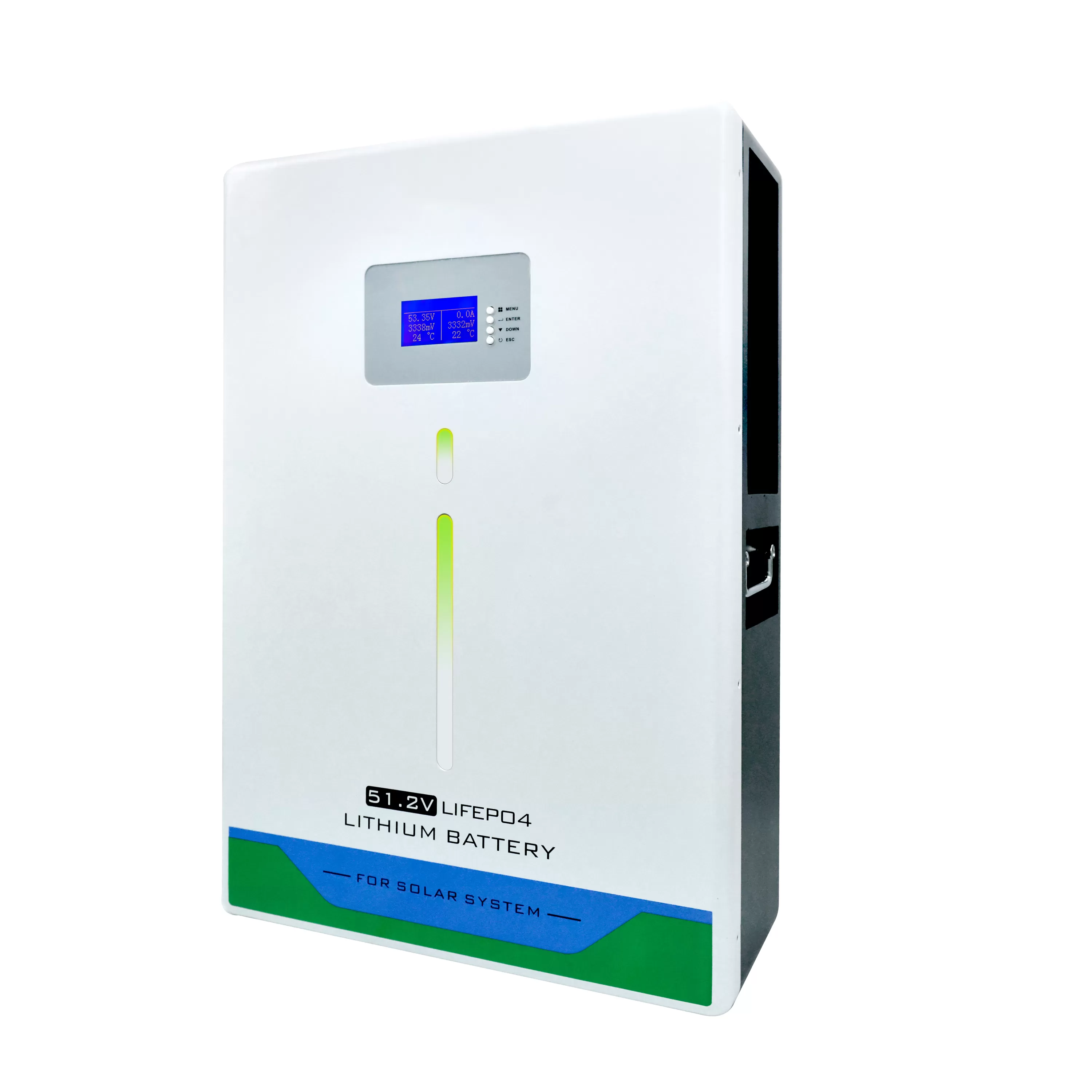

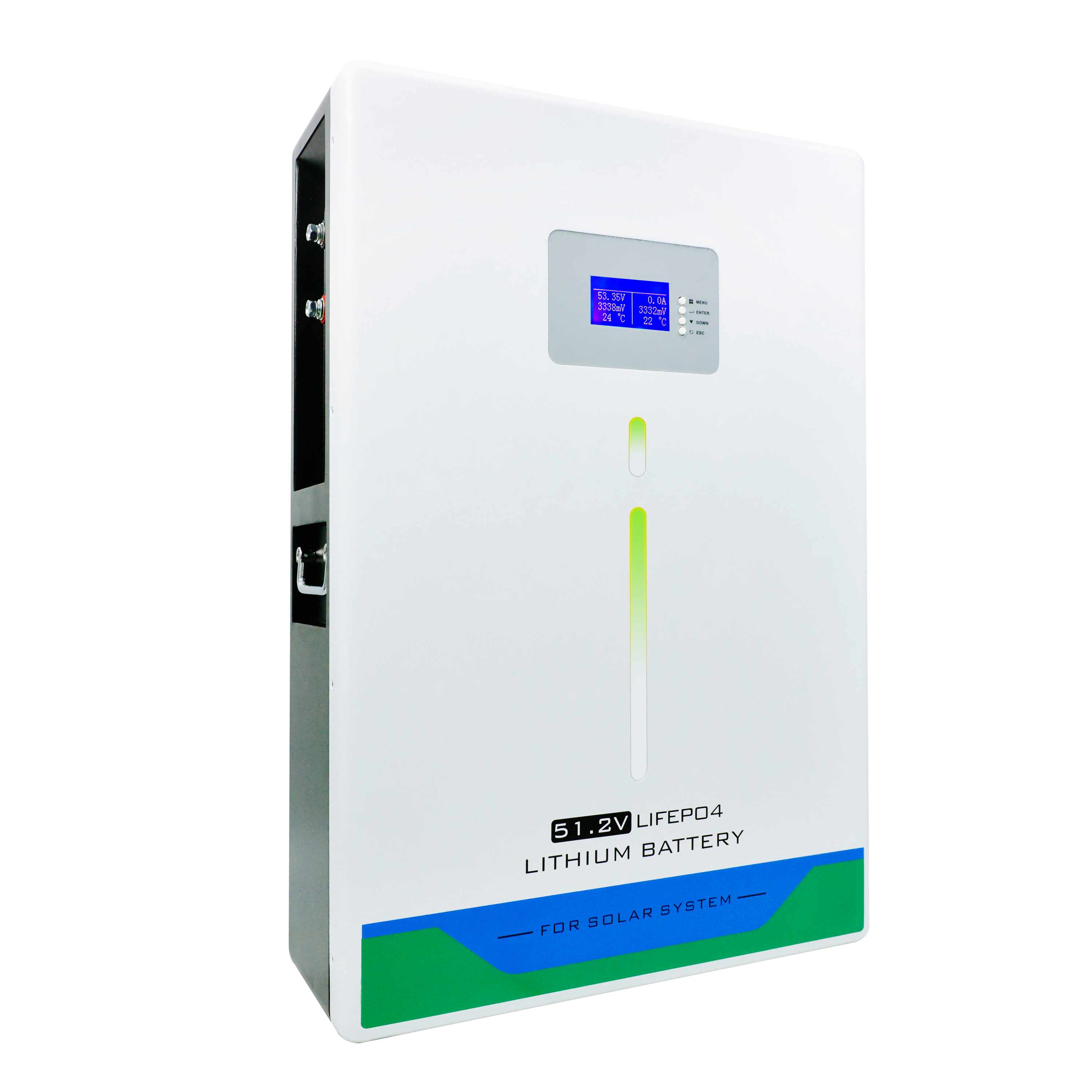

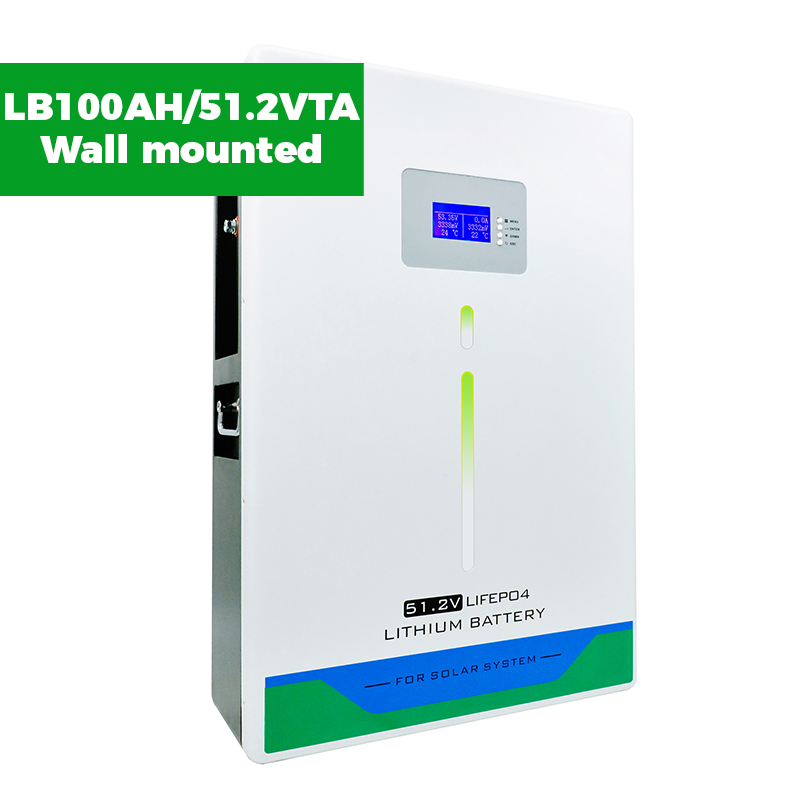

| Model | LB100AH/51.2VTA | |||
| Cell chemical formula | LiFePO4 | |||
| Maximum continuous discharge current | 100A | |||
| Available capacity | 5120wh | |||
| Rated voltage | 51.2VDC | |||
| Voltage range | 43.2V-58.4VDC | |||
| Maximum output power | 5120W | |||
| Maximum charging voltage | 58.4V±0.2VDC | |||
| Recommended charging voltage | 57.6V± 0.2VDC | |||
| Recommended charging current | 100A | |||
| Number of cycles (standard charge and discharge at room temperature | ≥5000 times | |||
| Low power mode | Work self depletion ≤50mA，Low power mode<200uA | |||
| Communication | （Standard configuration) RS232、RS485、CAN | |||
| Battery discharge depth (DOD) | ≥95% | |||
| Modules connect | 1-5 | |||

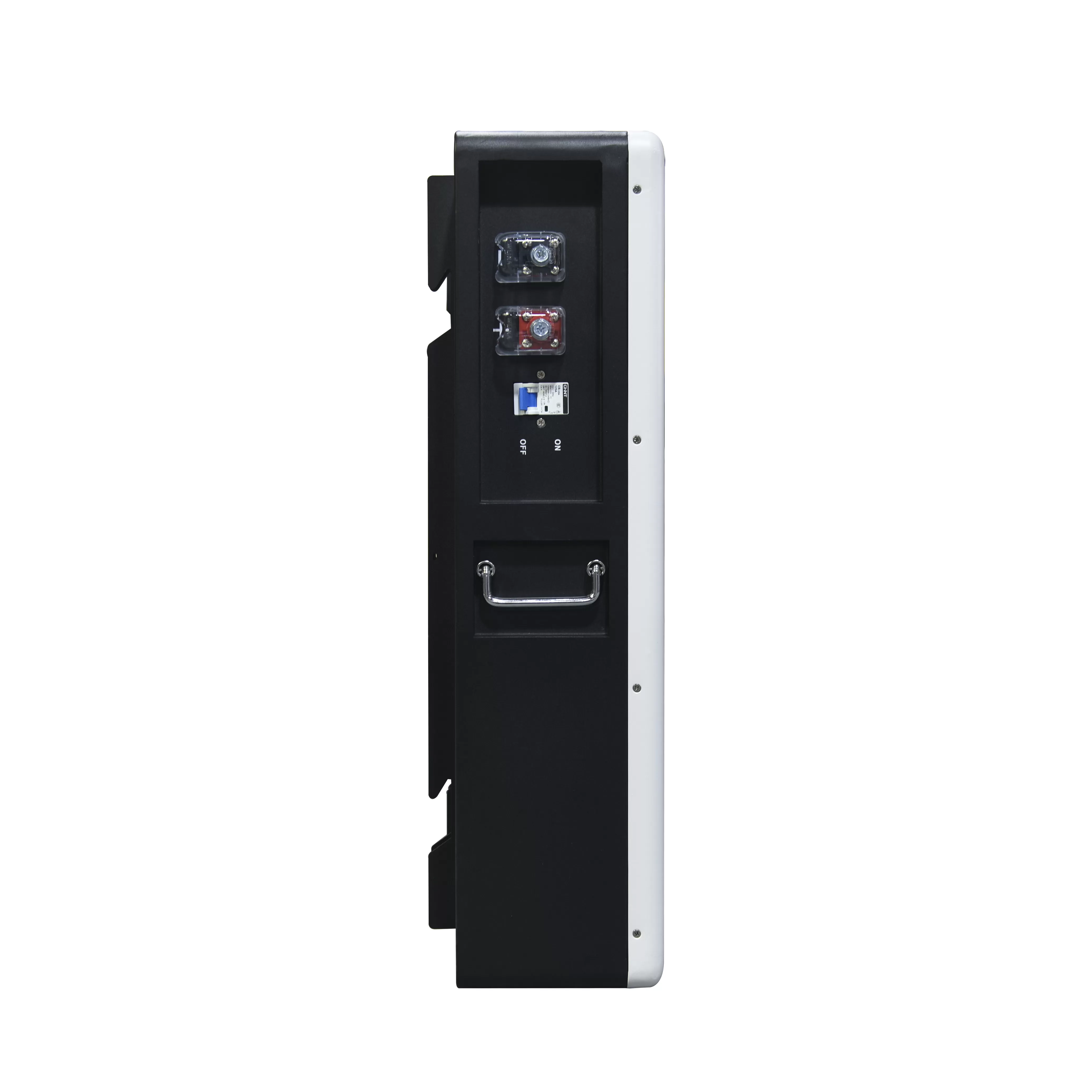

| Terminal type | M8 | |||

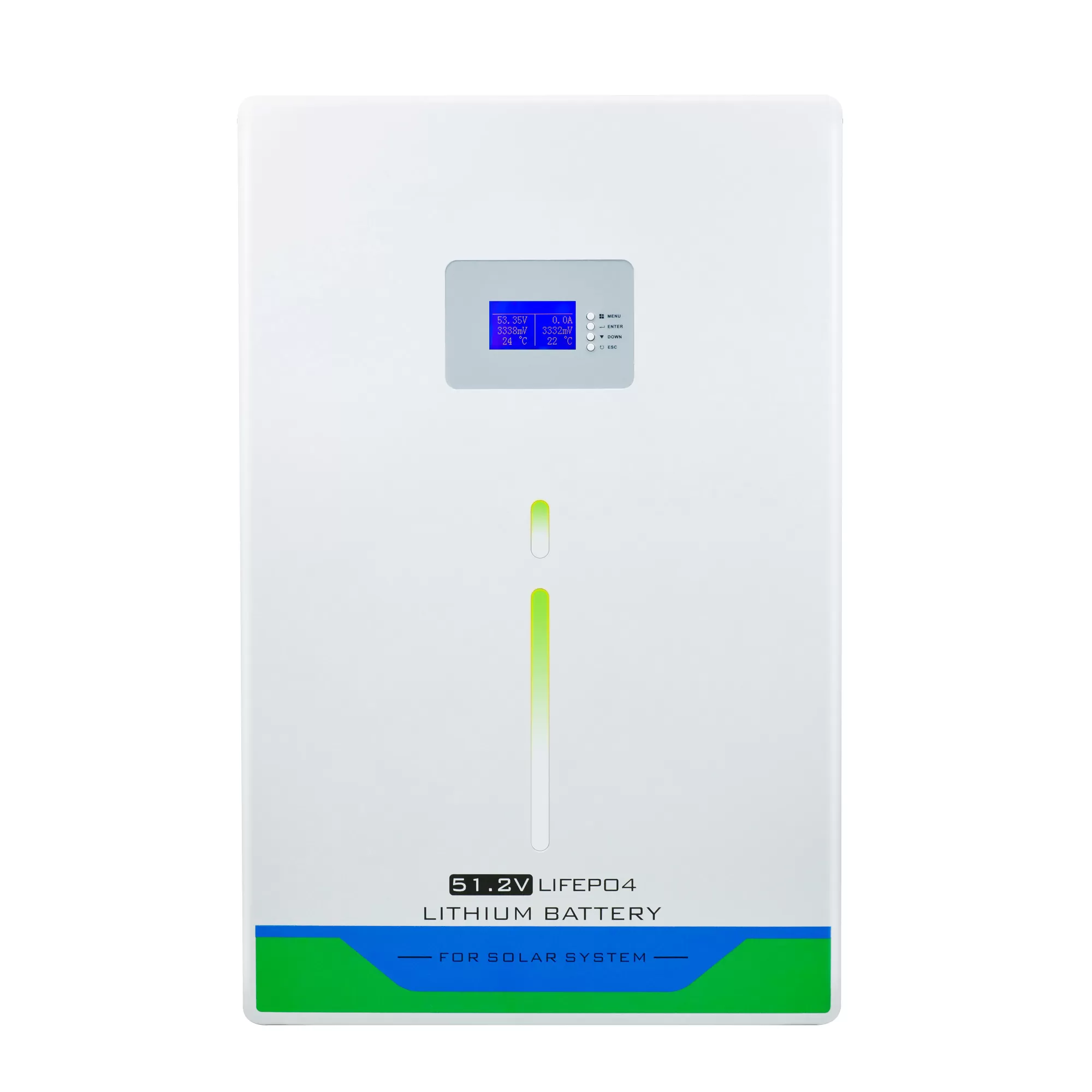

| Display screen | LED Light strip display + LCD display | |||
| Operating temperature range | Discharge：-10C-+50℃；Charge：+0℃-+60℃ | |||
| Storage temperature | > 1 month，0-35°C； ≤ 1 month，-20-45°C | |||
| N.W/KG | 54.5kg | |||
| L*W*H(mm) | 720*480*170mm | |||
