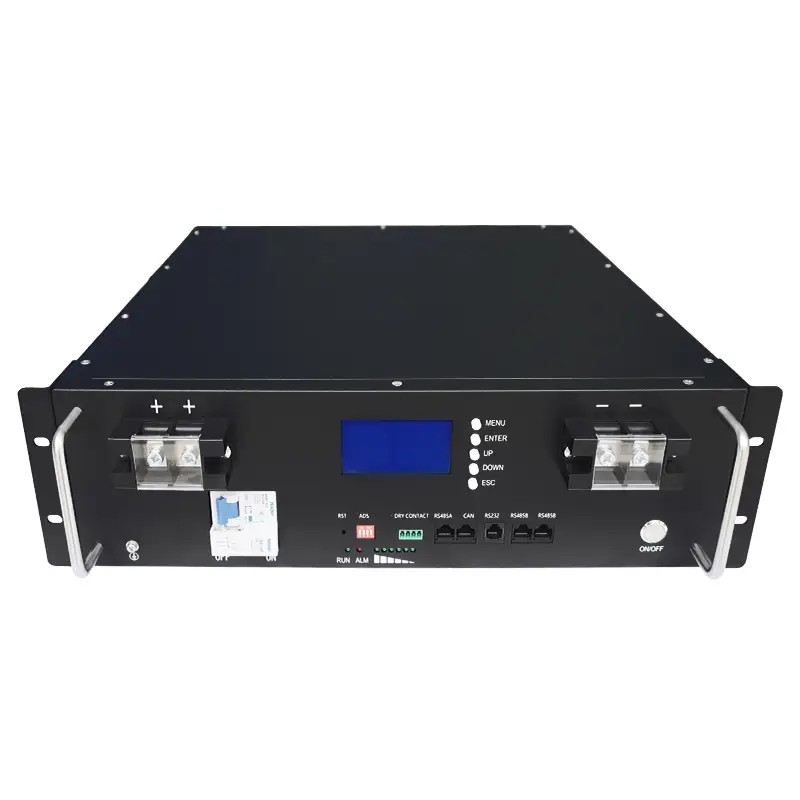

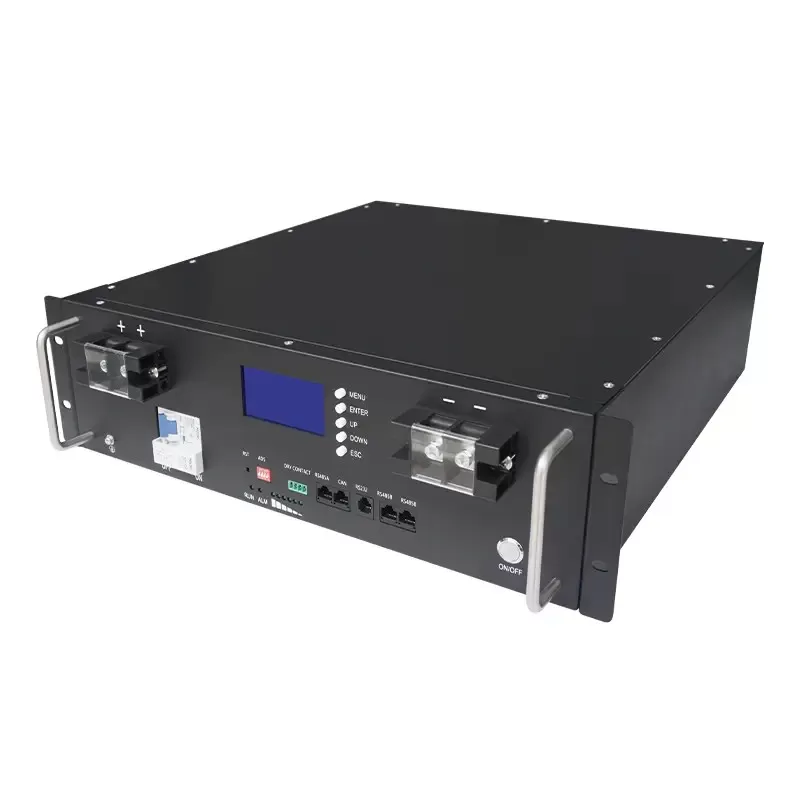

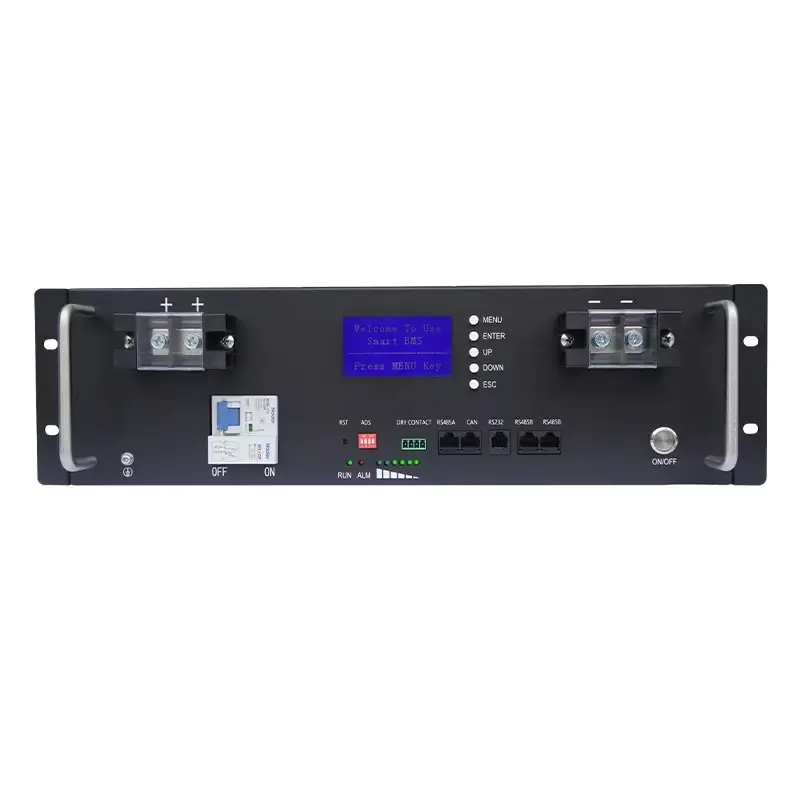

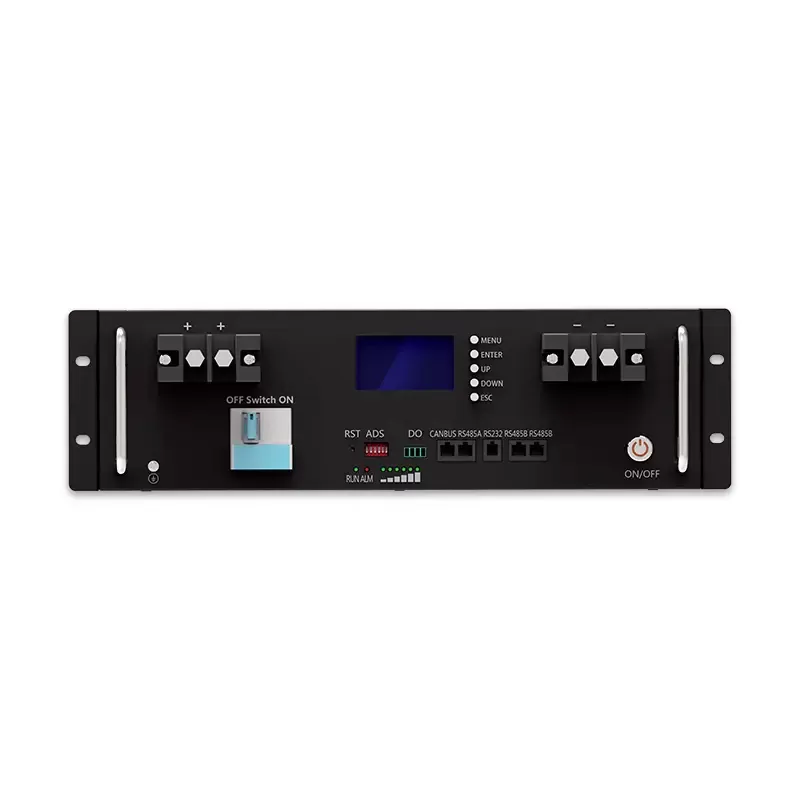

Lithium Battery-Rack Mount SF-48100-3U is Safe and reliable, BMS and circuit breaker secondary overcurrent protection; TUV certified, compliant with battery IEC/UL standards; High compatibility, compatible with most inverter brands on the market; Flexible expansion coverage, 5kwh/10kwh modular design, can be expanded from 5° to 100°.

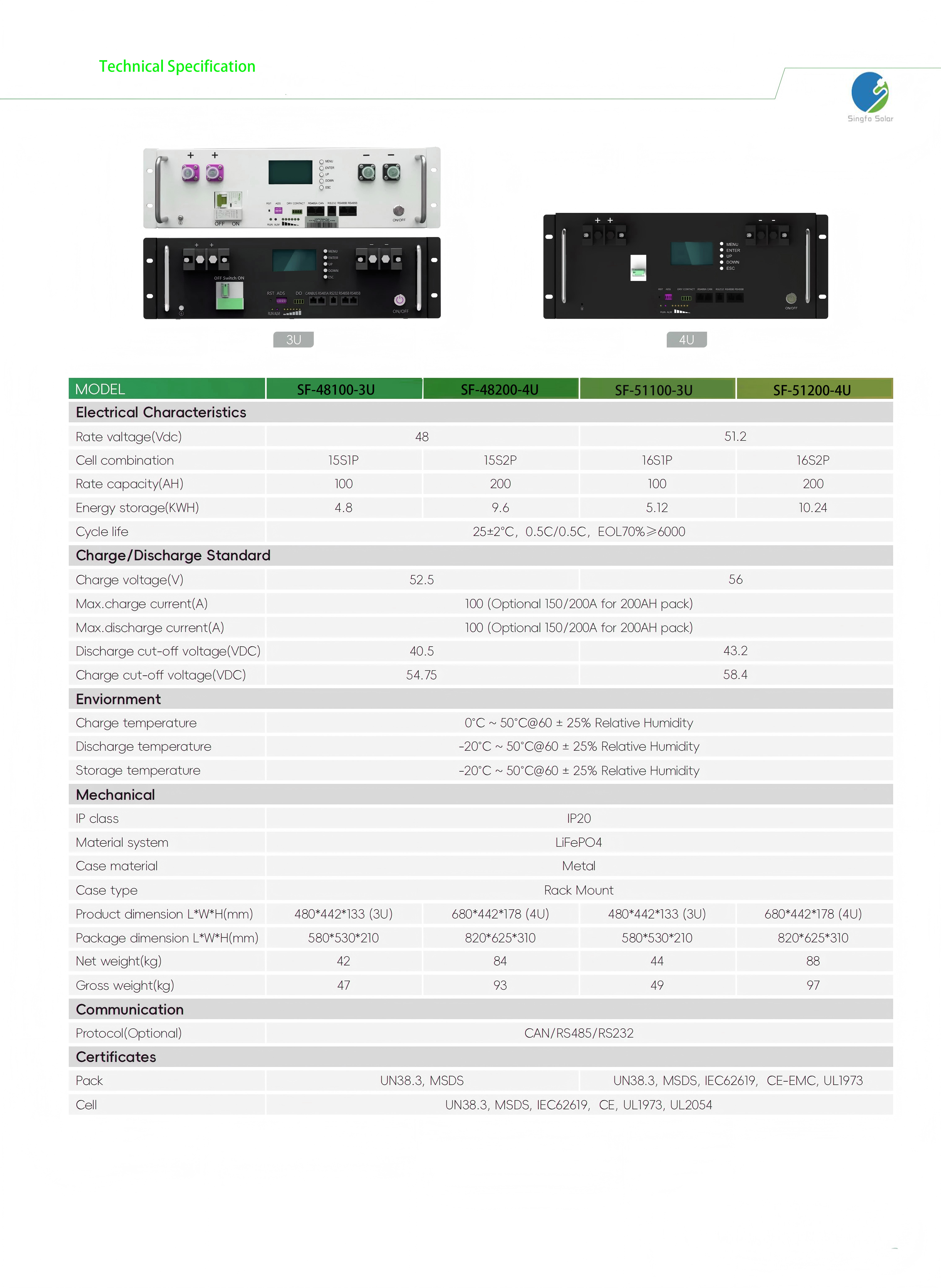

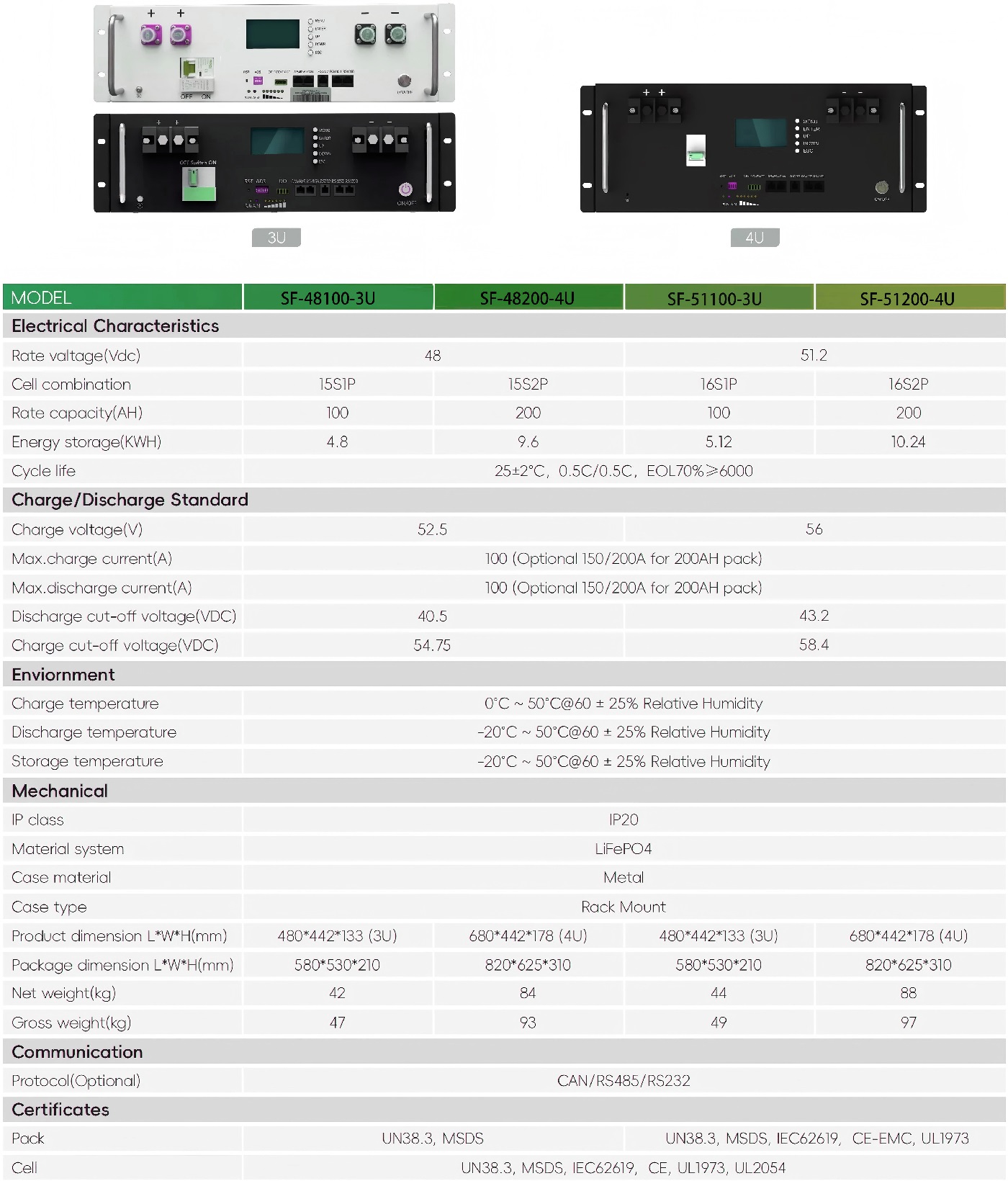

| Model | SF-48100-3U |
| Electrical Characteristics | |
| Rate valtage(Vdc) | 48 |
| Cell combination | 15S1P |
| Rate capacity(AH) | 100 |
| Energy storage(KWH) | 4.8 |
| Cycle life | 25±2℃,0.5C/0.5C,EOL70%≥6000 |
| Charge/Discharge Standard | |
| Charge voltage(V) | 52.5 |
| Max.charge current(A) | 100(Optional 150/200A for 200AH pack) |
| Max.discharge current(A) | 100(Optional 150/200A for 200AH pack) |
| Discharge cut-off voltage(VDC) | 40.5 |
| Charge cut-off voltage(VDC) | 54.75 |
| Enviornment | |
| Charge temperature | 0℃~50℃@60±25%Relative Humidity |
| Discharge temperature | -20℃~50℃@60±25%Relative Humidity |
| Storage temperature | -20℃~50℃@60±25%Relative Humidity |
| Mechanical | |
| IP class | IP20 |
| Material system | LiFePO4 |
| Case material | Metal |
| Case type | Rack Mount |
| Product dimension L*W*H(mm) | 480*442*133(3U) |
| Package dimension L*W*H(mm) | 580*530*210 |
| Net weight(kg) | 42 |
| Gross weight(kg) | 47 |
| Communication | |
| Protocol(Optional) | CAN/RS485/RS232 |
| Certificates | |
| Pack | UN38.3,MSDS |
| Cell | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
