Product Details

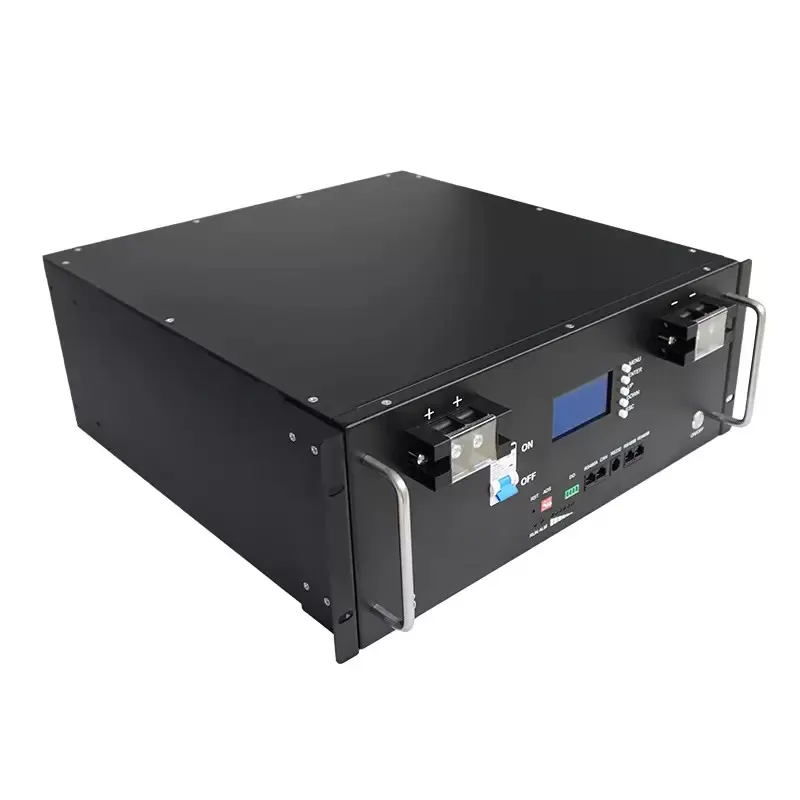

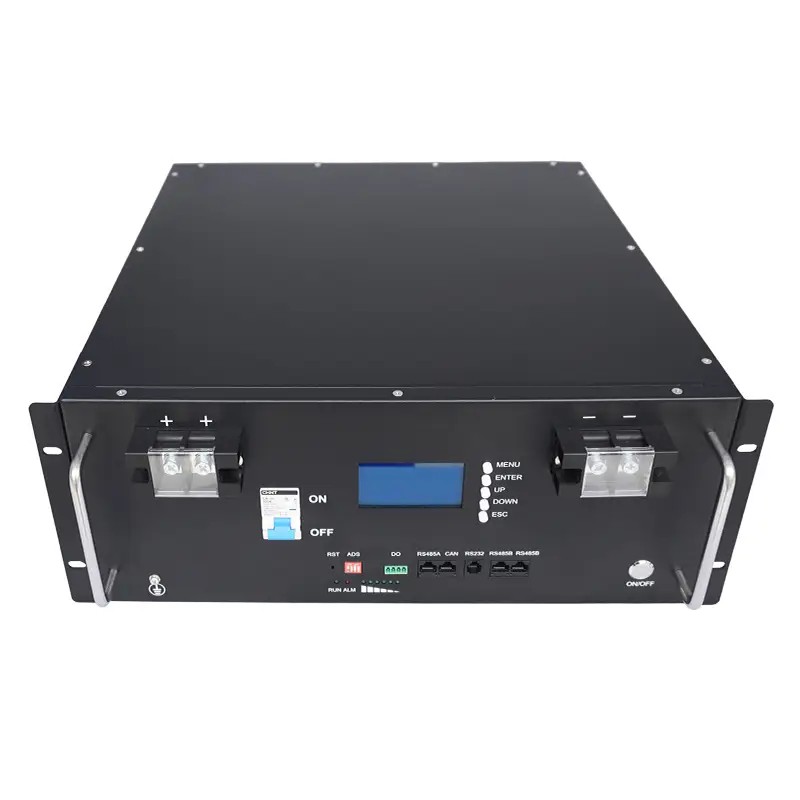

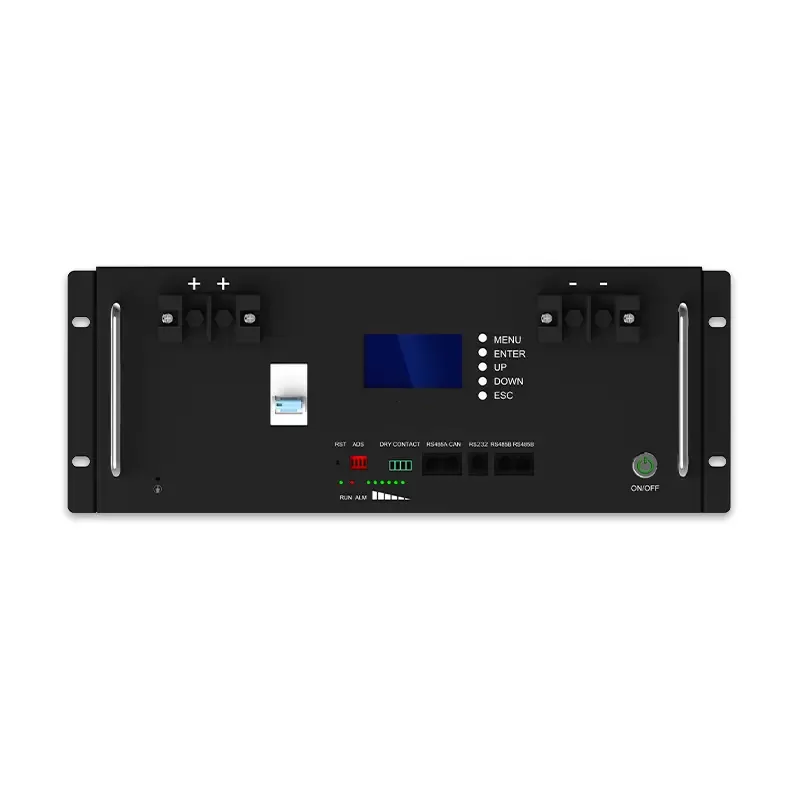

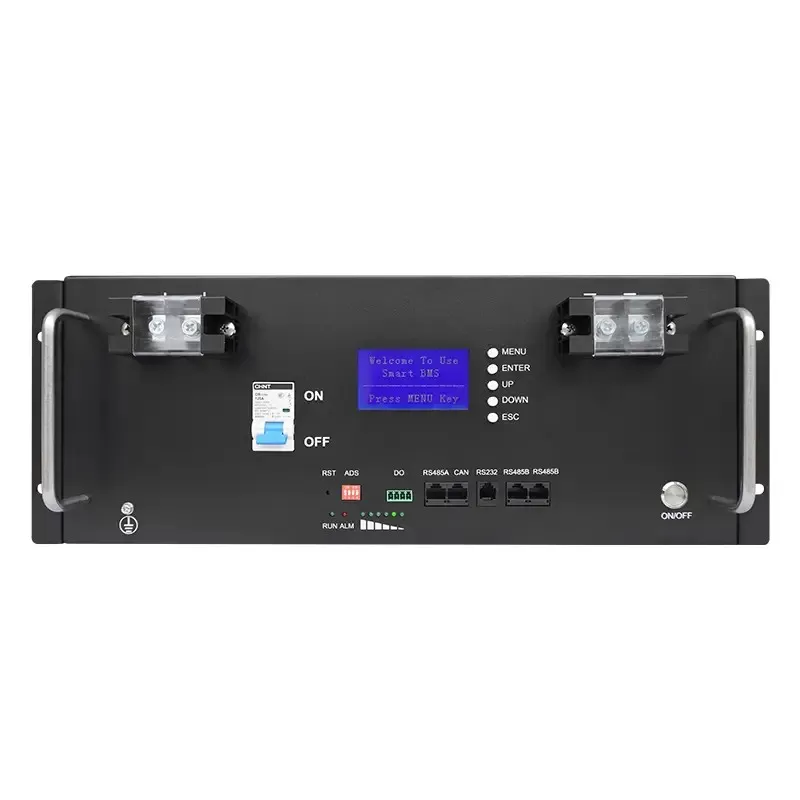

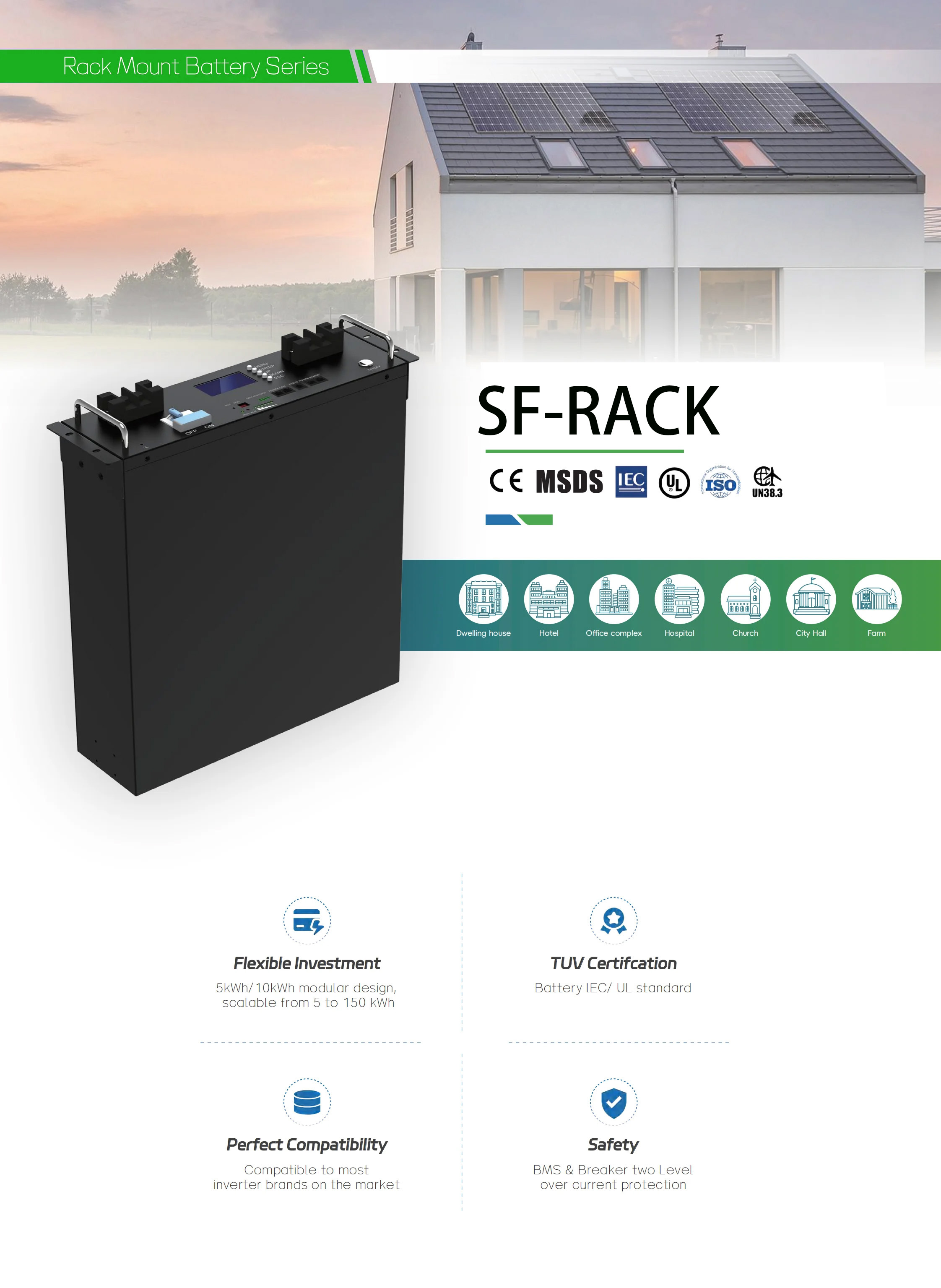

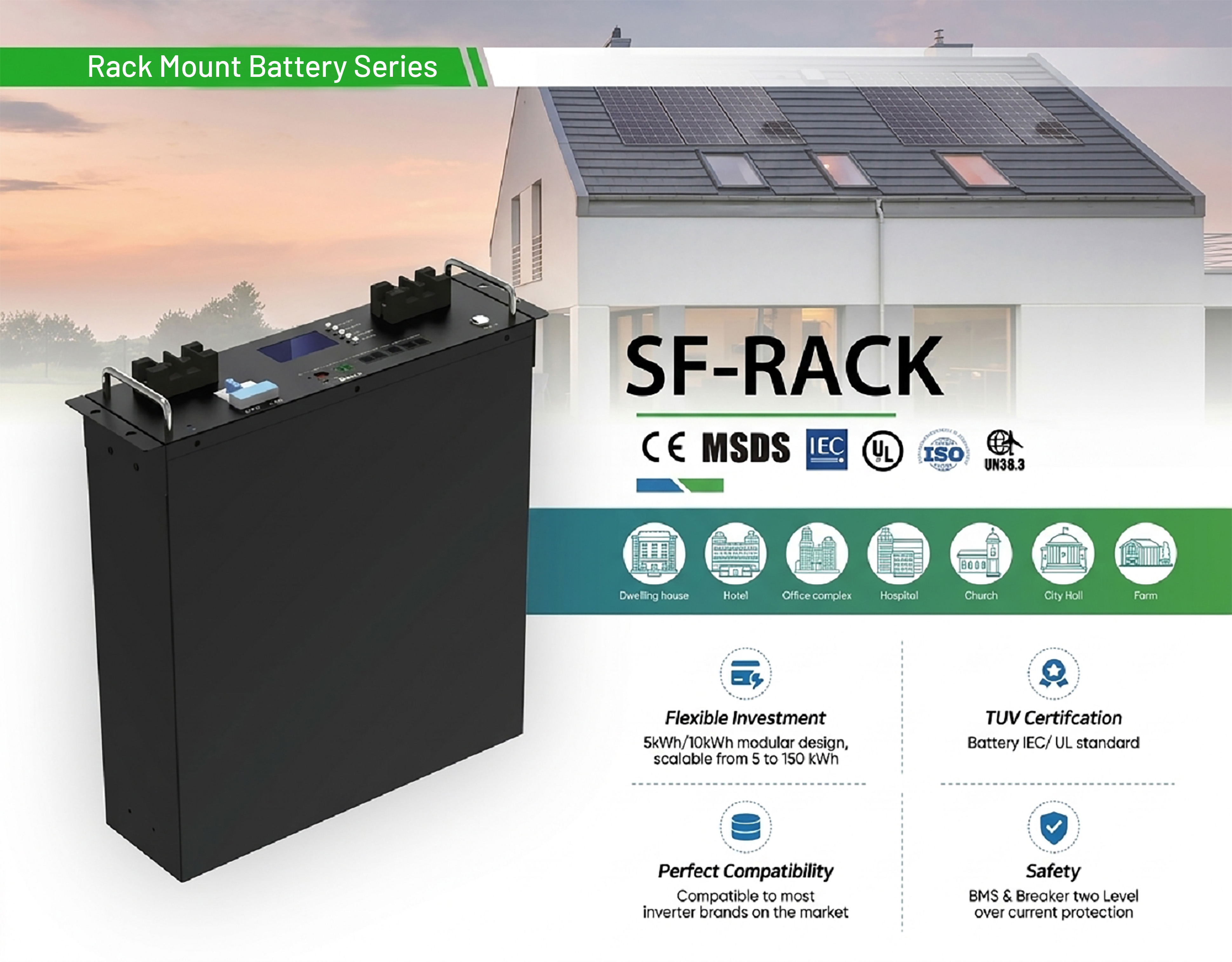

Rack Battery Series - SF-RACK
- Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
- Certification: Battery IEC/UL standard.
- Perfect Compatibility: Compatible to most inverter brands on the market.
- Safety: BMS & Breaker two levels over current protection.
- 10 years warranty(5+5): the first 5 years is unconditional warranty，the last 5 years can promise the capacity over 70%.

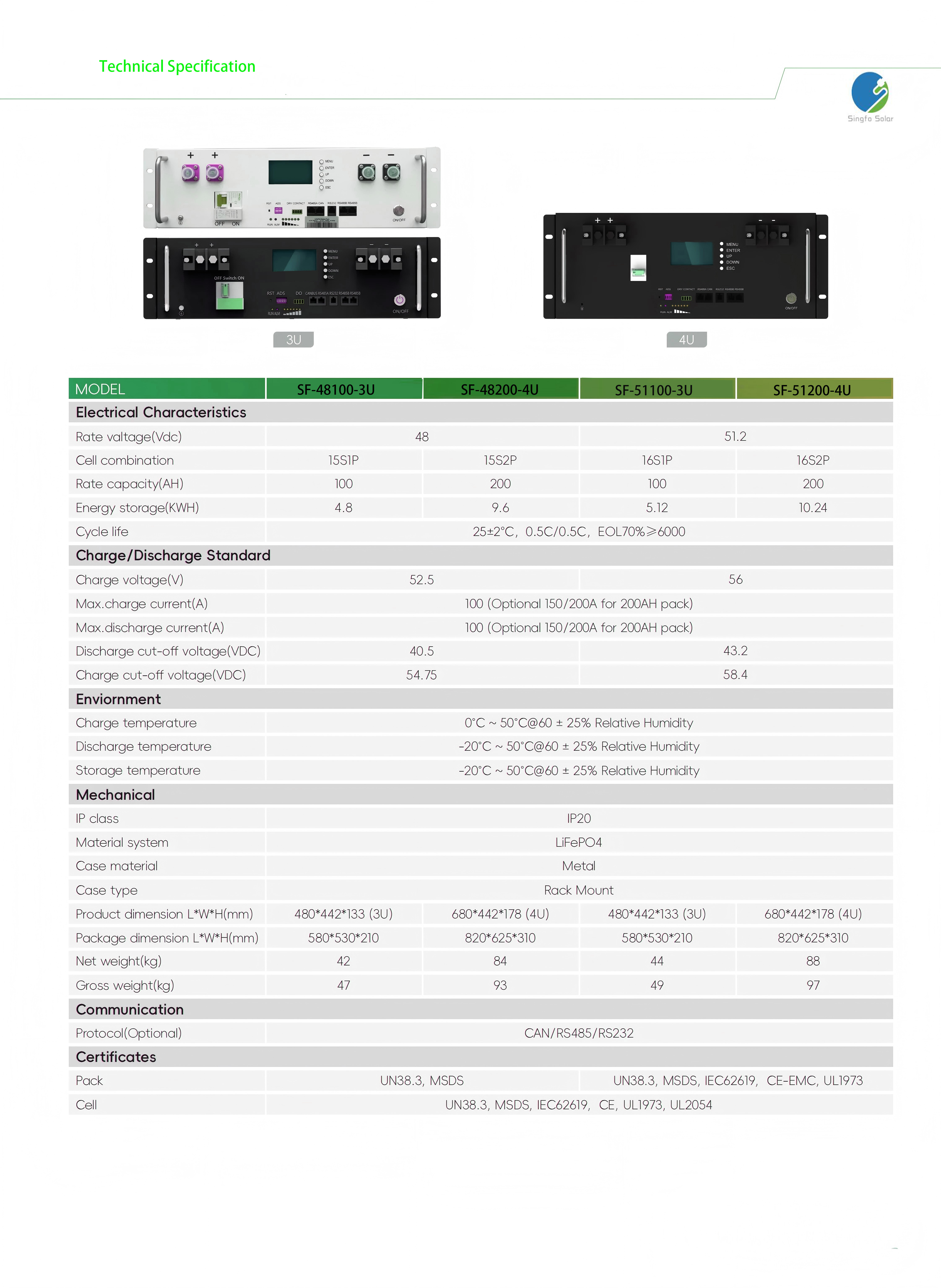

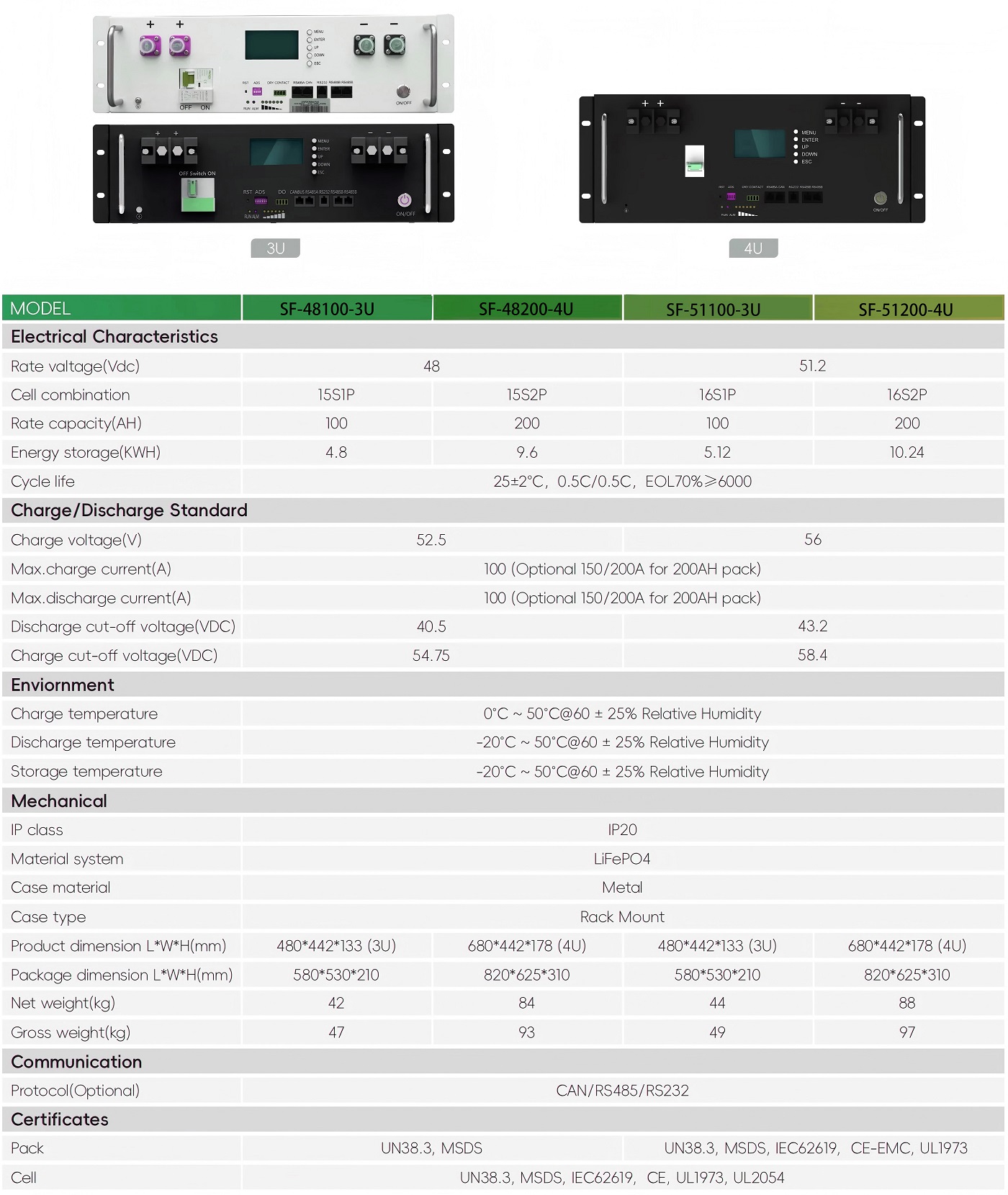

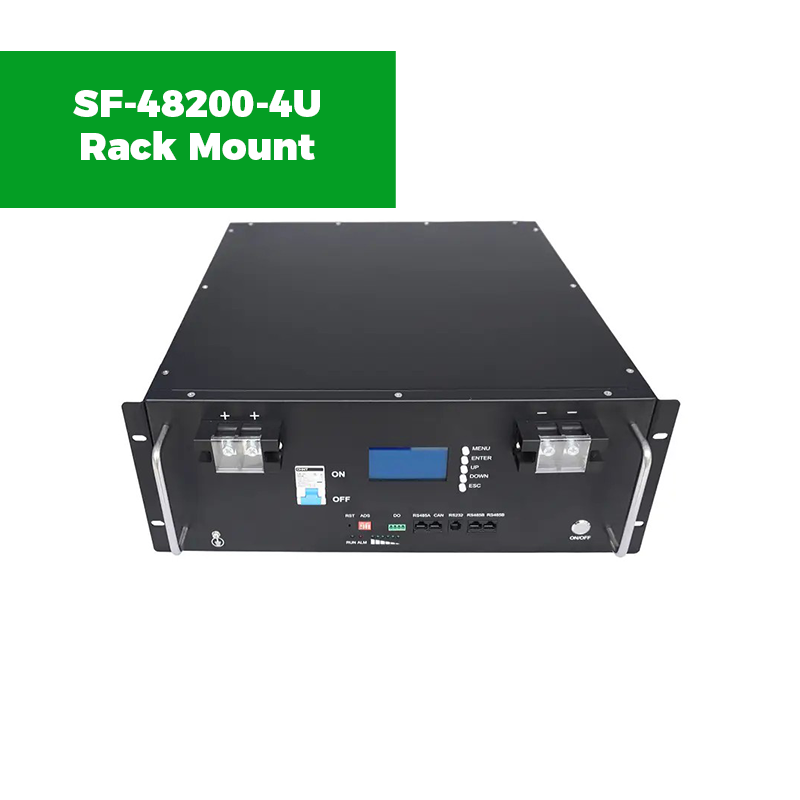

| Model | SF-48200-4U | |
| Electrical Characteristics | ||
| Rate valtage(Vdc) | 48 | |
| Cell combination | 15S2P | |
| Rate capacity(AH) | 200 | |
| Energy storage(KWH) | 9.6 | |
| Cycle life | 25±2℃,0.5C/0.5C,EOL70%≥6000 | |
| Charge/Discharge Standard | ||
| Charge voltage(V) | 52.5 | |
| Max.charge current(A) | 100(Optional 150/200A for 200AH pack) | |
| Max.discharge current(A) | 100(Optional 150/200A for 200AH pack) | |
| Discharge cut-off voltage(VDC) | 40.5 | |
| Charge cut-off voltage(VDC) | 54.75 | |
| Enviornment | ||
| Charge temperature | 0℃~50℃@60±25%Relative Humidity | |
| Discharge temperature | -20℃~50℃@60±25%Relative Humidity | |
| Storage temperature | -20℃~50℃@60±25%Relative Humidity | |
| Mechanical | ||
| IP class | IP20 | |
| Material system | LiFePO4 | |
| Case material | Metal | |
| Case type | Rack Mount | |
| Product dimension L*W*H(mm) | 680*442*178(4U) | |
| Package dimension L*W*H(mm) | 820*625*310 | |
| Net weight(kg) | 84 | |
| Gross weight(kg) | 93 | |
| Communication | ||
| Protocol(Optional) | CAN/RS485/RS232 | |
| Certificates | ||
| Pack | UN38.3,MSDS | |
| Cell | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |
