Product Details
Rack Battery Series - SF-RACK
- Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
- Certification: Battery IEC/UL standard.
- Perfect Compatibility: Compatible to most inverter brands on the market.
- Safety: BMS & Breaker two levels over current protection.
- 10 years warranty(5+5): the first 5 years is unconditional warranty，the last 5 years can promise the capacity over 70%.

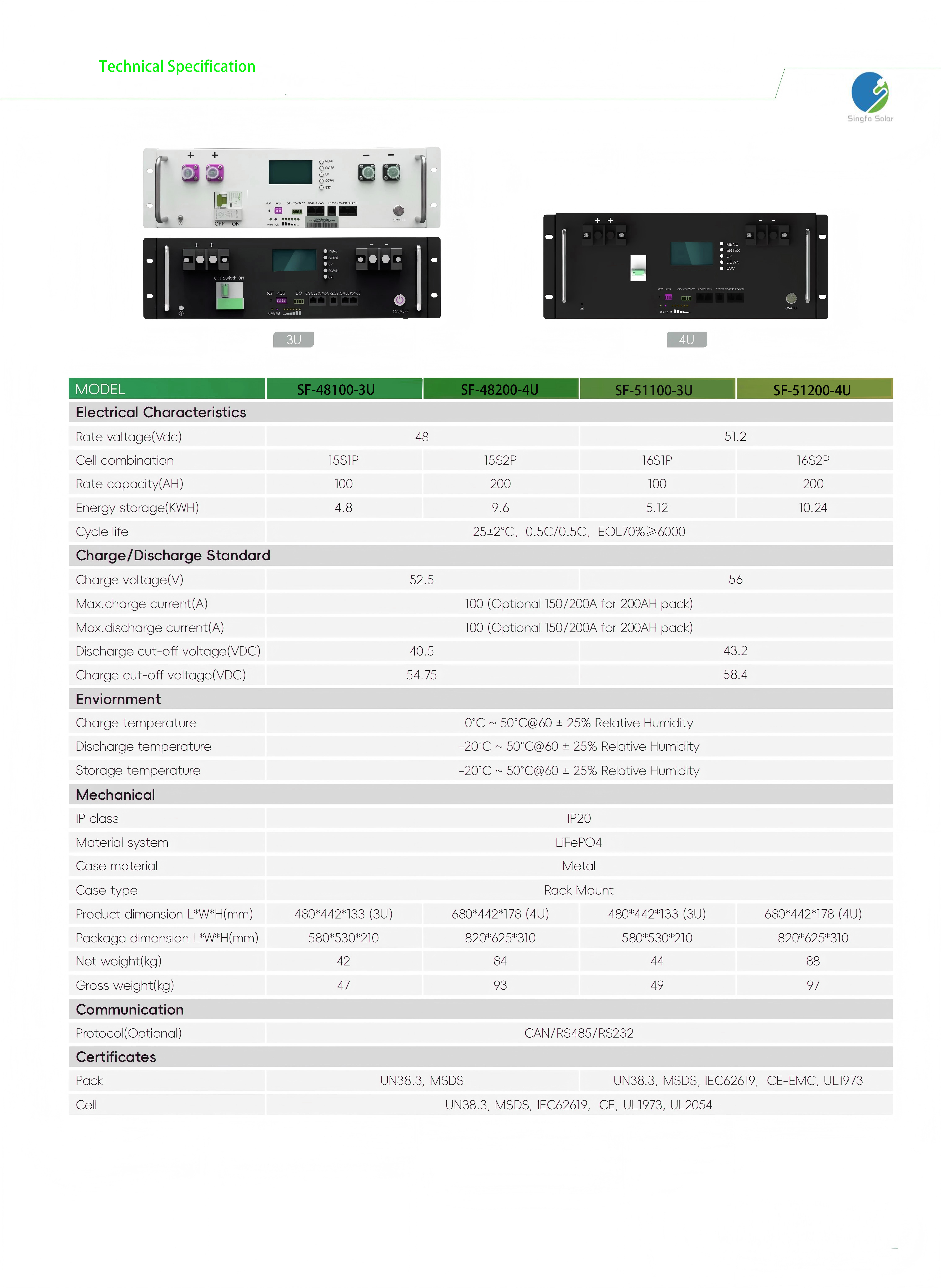

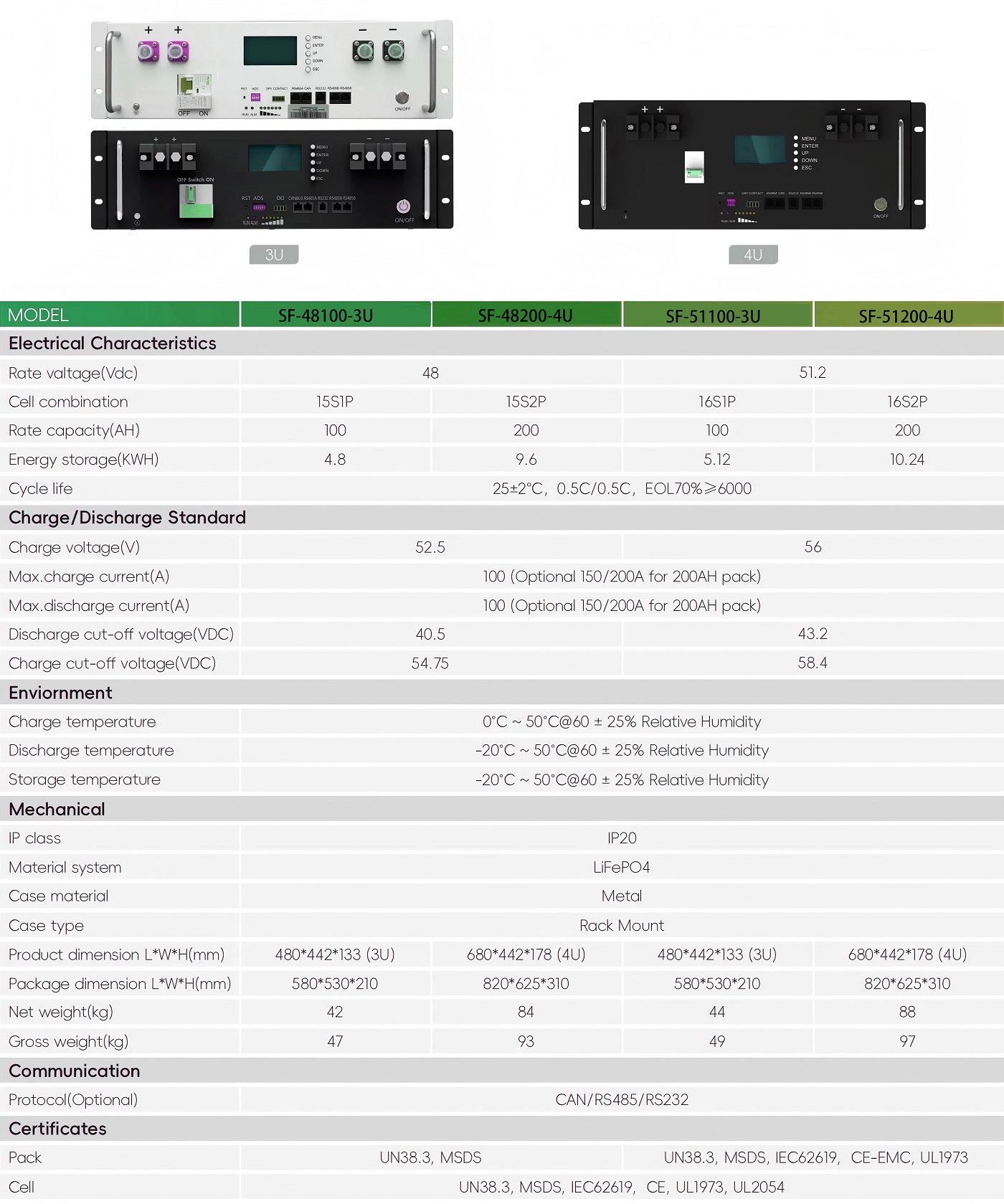

| Model | SF-51200-4U | |||
| Electrical Characteristics | ||||
| Rate valtage(Vdc) | 51.2 | |||
| Cell combination | 16S2P | |||
| Rate capacity(AH) | 200 | |||
| Energy storage(KWH) | 10.24 | |||
| Cycle life | 25±2℃,0.5C/0.5C,EOL70%≥6000 | |||
| Charge/Discharge Standard | ||||
| Charge voltage(V) | 56 | |||
| Max.charge current(A) | 100(Optional 150/200A for 200AH pack) | |||
| Max.discharge current(A) | 100(Optional 150/200A for 200AH pack) | |||
| Discharge cut-off voltage(VDC) | 43.2 | |||
| Charge cut-off voltage(VDC) | 58.4 | |||
| Enviornment | ||||
| Charge temperature | 0℃~50℃@60±25%Relative Humidity | |||
| Discharge temperature | -20℃~50℃@60±25%Relative Humidity | |||
| Storage temperature | -20℃~50℃@60±25%Relative Humidity | |||
| Mechanical | ||||
| IP class | IP20 | |||
| Material system | LiFePO4 | |||
| Case material | Metal | |||
| Case type | Rack Mount | |||
| Product dimension L*W*H(mm) | 680*442*178(4U) | |||
| Package dimension L*W*H(mm) | 820*625*310 | |||
| Net weight(kg) | 88 | |||
| Gross weight(kg) | 97 | |||
| Communication | ||||
| Protocol(Optional) | CAN/RS485/RS232 | |||
| Certificates | ||||
| Pack | UN38.3,MSDS,IEC62619,CE-EMC,UL1973 | |||
| Cell | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||
