With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability. The application of multi-busbar cells results in more uniform loads to prevent stress, resulting in better performance even in case of slight cracking. Nowadays the market share of PV modules featuring MBB technology is dominant in the global solar industry.
Excellent anti-LeTID &anti-PID performance. Low power degradation, high energy yield
| Cell Type | Monocrystal 166 |
| No. of Cells | 120(6×20) |

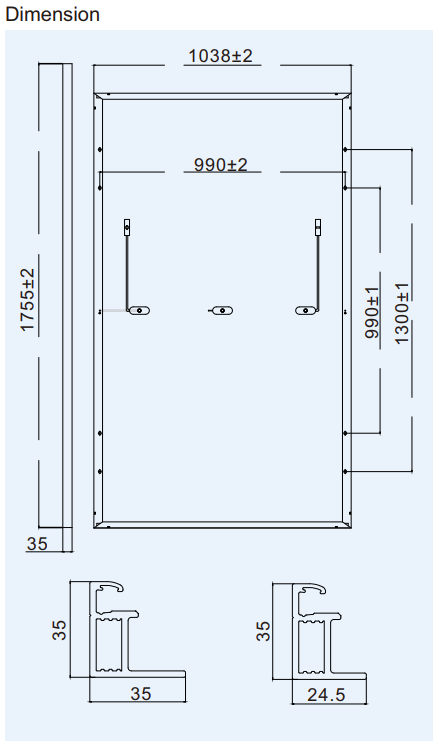

| Module Dimension | 1755*1038*35mm |
| Net Weight | 20Kgs |
| Maximum power (Pmax/W) | 375W |
| Open Circuit Voltage-Voc(V) | 41.01 |
| Short Circuit Current-lsc(A) | 11.41 |
| Maximum Power Voltage (Vmp/V) | 34.22 |
| Maximum Power Current (Imp/A) | 10.96 |
Glass
Anti Reflective Glass
Self-cleaning function
Module efficiency is increased by 2%
Service life is as long as25years(30years optional)
Translucency of normal luminance is increased by 2%
Solar Cell
Anti-PID
Appearance Consistency
High Efficiency PV Cells
Color sorting ensure consistent appearance on each module
Frame
Conventional frame
Seal-lip designglue injection
Silver or black frames are optional
Serrated-clip design tensile strength
Boost bearing capability and prolong service life

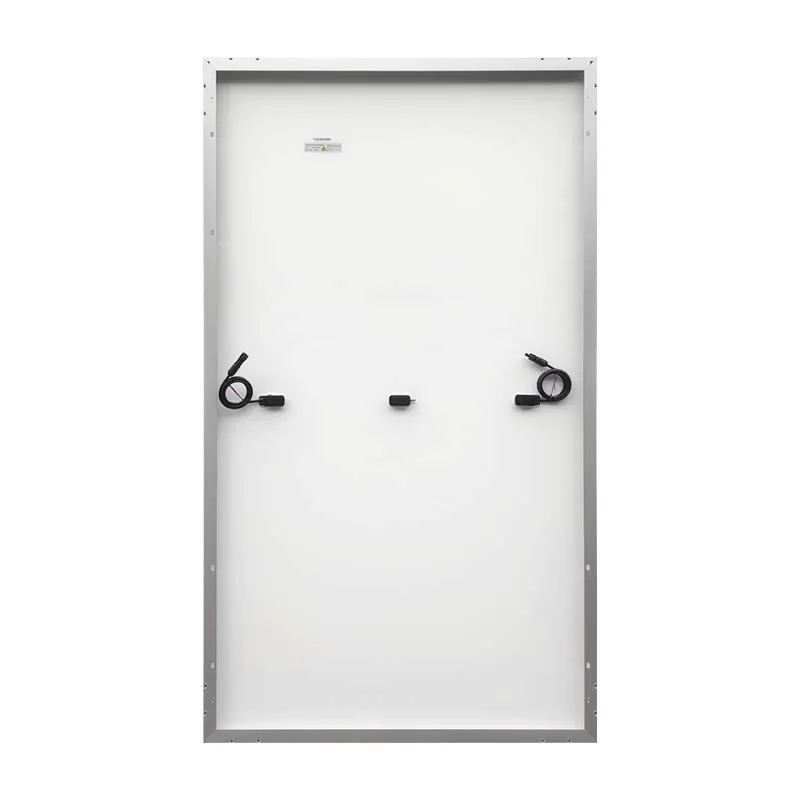

Junction box
Heat dissipation
Long service life
IP68 protection level
Quality diode ensures module running safety
Conventional standalone edition and engineering custom edition
Project Cases

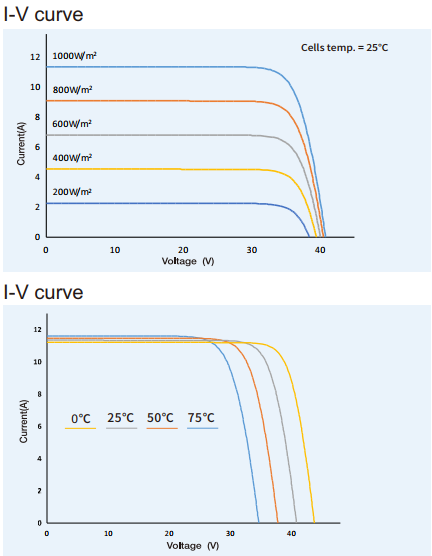

ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF2-355-375W | |||||
| Maximum power (Pmax/W) | 355 | 360 | 365 | 370 | 375 | |
| Open Circuit Voltage-Voc(V) | 40.21 | 40.41 | 40.61 | 40.81 | 41.01 | |
| Short Circuit Current-lsc(A) | 11.09 | 11.17 | 11.25 | 11.33 | 11.41 | |
| Maximum Power Voltage (Vmp/V) | 33.37 | 33.59 | 33.80 | 34.01 | 34.22 | |
| Maximum Power Current (Imp/A) | 10.64 | 10.72 | 10.80 | 10.88 | 10.96 | |
| Module Efficiency (%) | 19.5 | 19.8 | 20 | 20.3 | 20.6 | |
WANT TO SPEAK TO US?
We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.
Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
