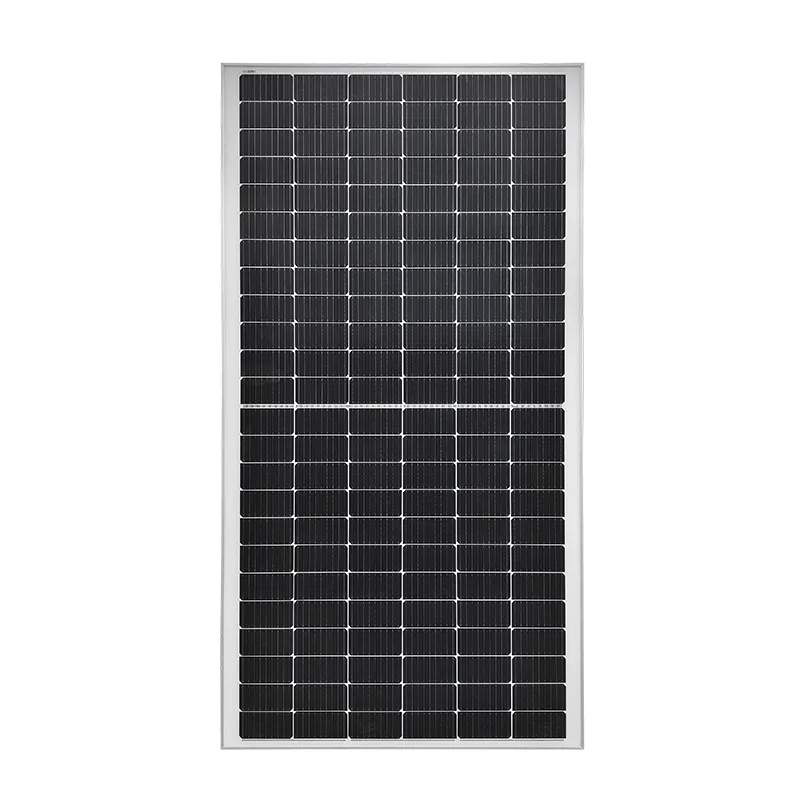

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.
With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability.
| Technical Data | |
| Cell Type | Monocrystal 182 |
| No. of Cells | 120(6×20) |
| Module Dimension | 1909*1134*35mm |
| Net Weight | 23.0Kgs |
| Maximum power (Pmax/W) | 460W |
| Open Circuit Voltage-Voc(V) | 41.55 |
| Short Circuit Current-lsc(A) | 14.05 |
| Maximum Power Voltage (Vmp/V) | 35.06 |
| Maximum Power Current (Imp/A) | 13.13 |
Glass
Anti Reflective Glass
Self-cleaning function
Module efficiency is increased by 2%
Service life is as long as25years(30years optional)
Translucency of normal luminance is increased by 2%

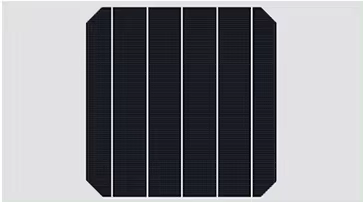

Solar Cell
Anti-PID
Appearance Consistency
High Efficiency PV Cells
Color sorting ensure consistent appearance on each module

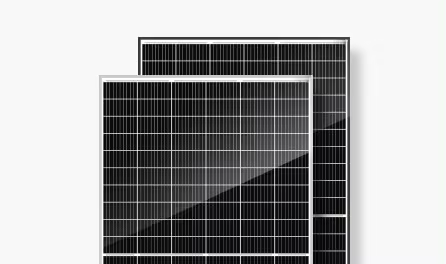

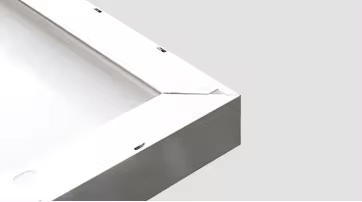

Frame
Conventional frame
Seal-lip designglue injection
Silver or black frames are optional
Serrated-clip design tensile strength
Boost bearing capability and prolong service life

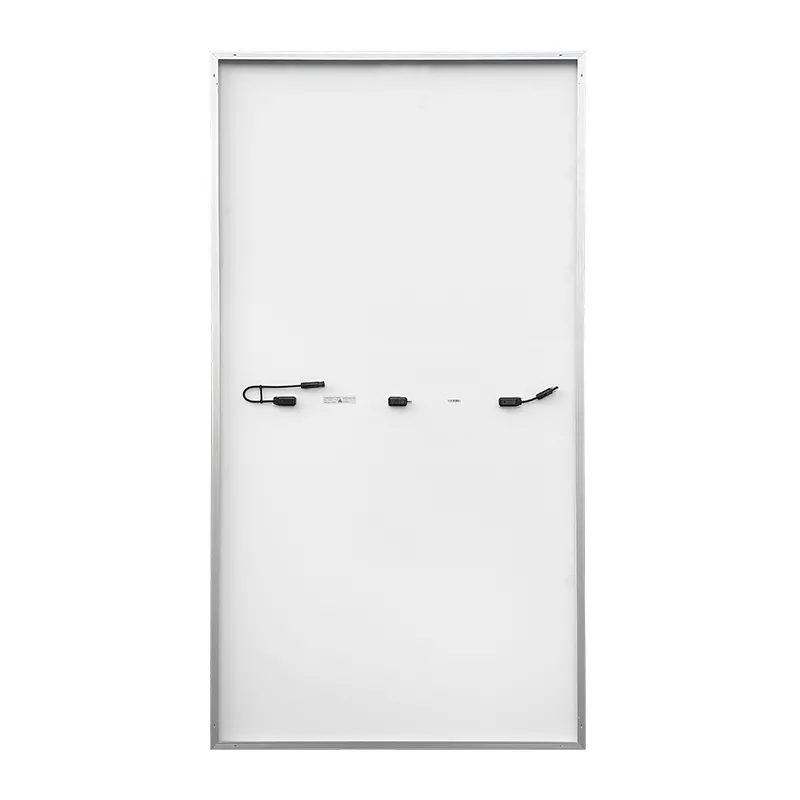

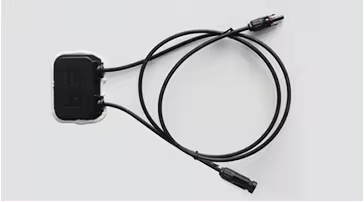

Junction box
Heat dissipation
Long service life
IP68 protection level
Quality diode ensures module running safety
Conventional standalone edition and engineering custom edition
Project Cases

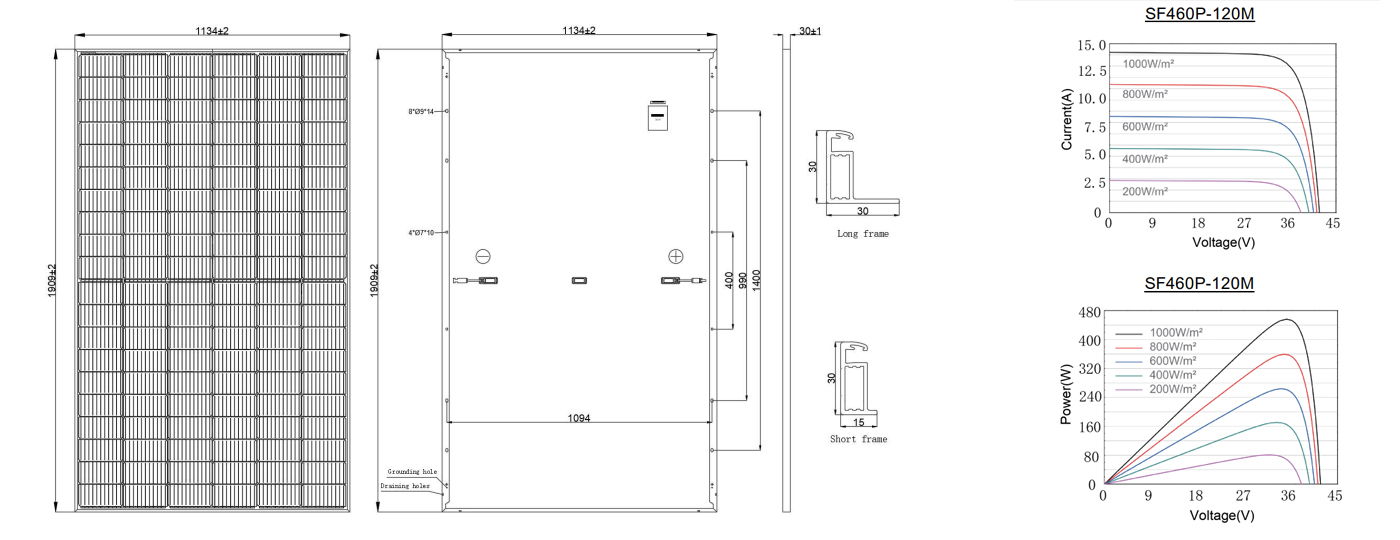

Mechanical Parameters
Cell Type: PERC Monocrystalline
Number of Half Cells: 120(6×20)
Module Size: 1909mm x 1134mm x 30mm
Weight: 23kg
Maximum System Voltage: 1500V
Glass: 3.2mm Coated tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP68 standard (3 bypass diode)
Output Cable: 4mm2/300mm
Connector: MC4 or (Compatible with MC4)
Hailstone Test: 25mm Hailstone at the speed of 23m/s
Mechanical Load: Max. Snow load 5400 Pa, Max. Wind load 2400 Pa
ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF2-440-460W | |||||
| Maximum power (Pmax/W) | 440 | 445 | 450 | 455 | 460 | |
| Open Circuit Voltage-Voc(V) | 40.95 | 41.10 | 41.25 | 41.40 | 41.55 | |
| Short Circuit Current-lsc(A) | 13.74 | 13.82 | 13.89 | 13.97 | 14.05 | |
| Maximum Power Voltage (Vmp/V) | 34.28 | 34.48 | 34.67 | 34.87 | 35.06 | |
| Maximum Power Current (Imp/A) | 12.84 | 12.91 | 12.98 | 13.05 | 13.13 | |
| Module Efficiency (%) | 20.3 | 20.6 | 20.8 | 21.0 | 21.3 | |
