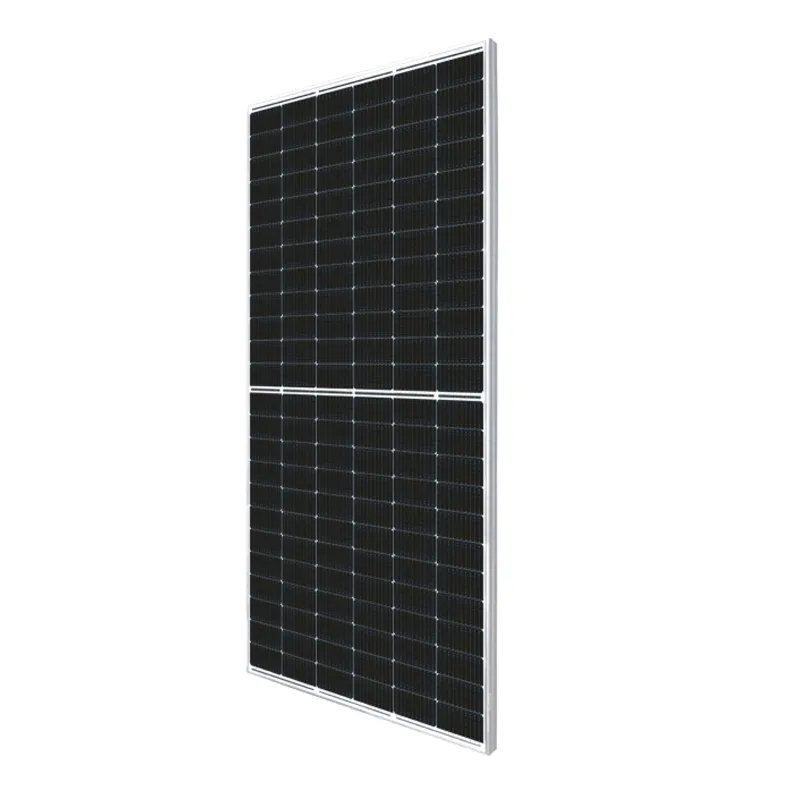

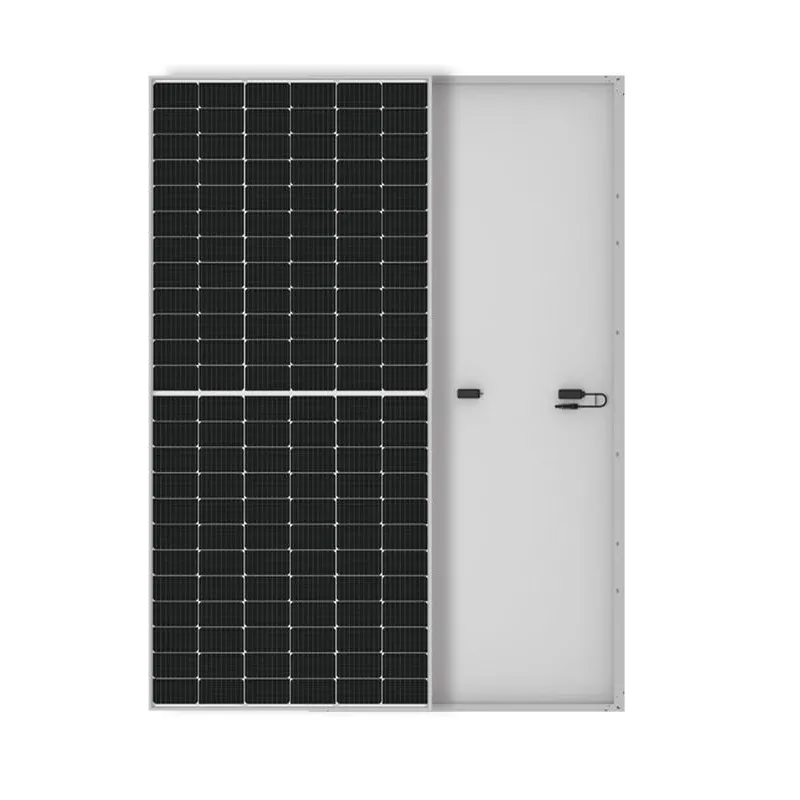

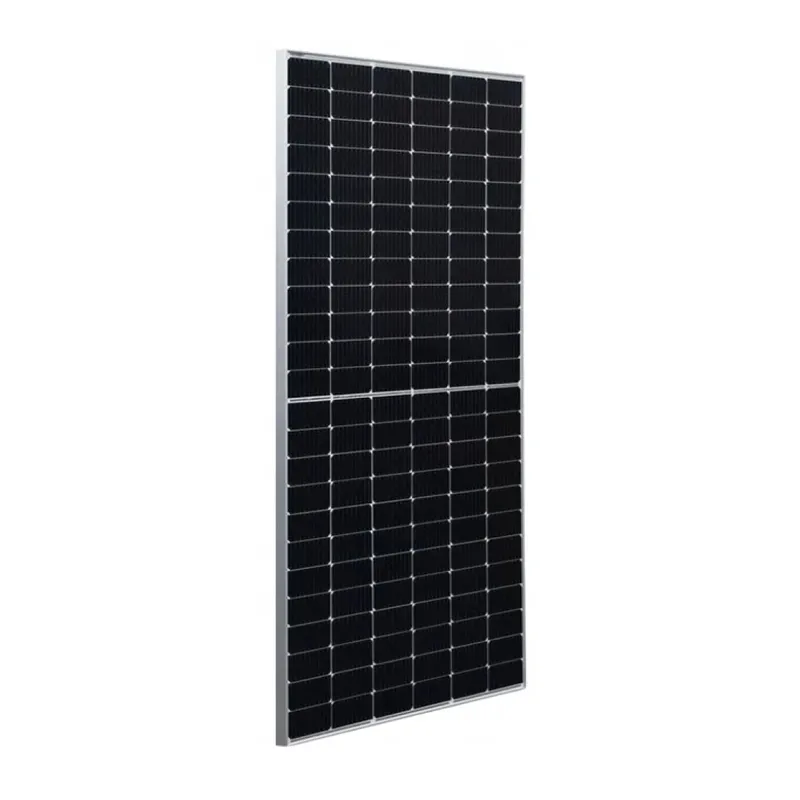

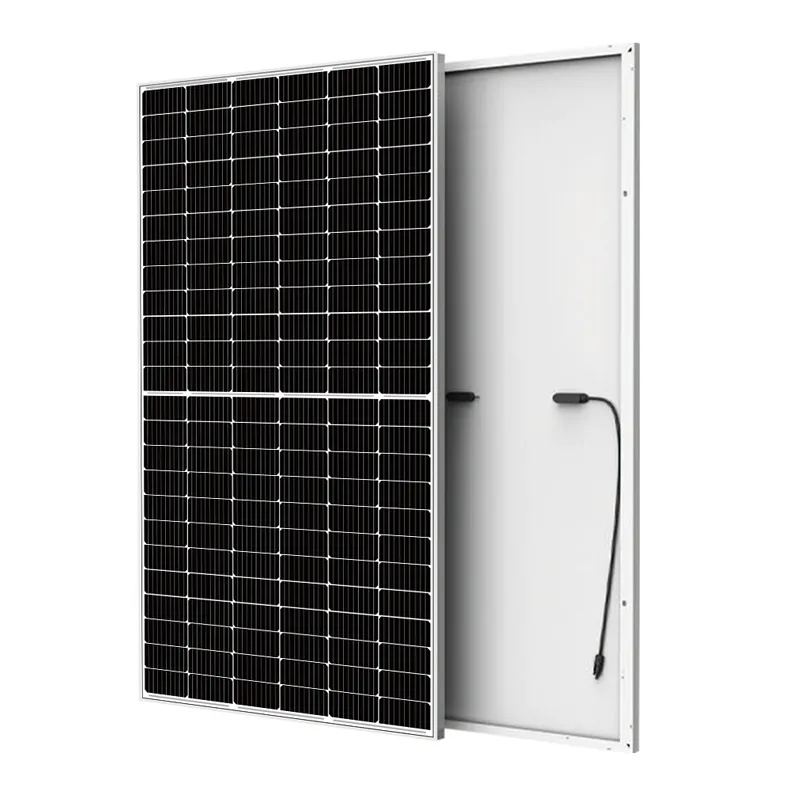

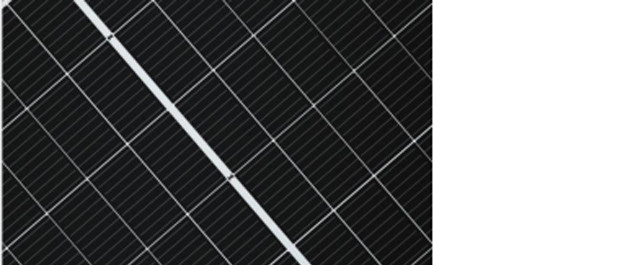

Based on leading multi-busbar technology, the Singfo modules adopt the Large-sized silicon wafer, non-destructive cutting and high-density interconnect technologies, which allow it to reach high power output and high module efficiency. By virtue of low-voltage and higher module string power output, it unlocks huge potential for further reducing balance-of-system costs.
| Cell Type | Monocrystal 182 |
| No. of Cells | 144(6× 24) |
| Module Dimension | 2279*1134*35 mm |
| Net Weight | 27.3Kgs |
| Maximum power (Pmax/W) | 540W |
| Open Circuit Voltage-Voc(V) | 49.55 |
| Short Circuit Current-lsc(A) | 13.89 |
| Maximum Power Voltage (Vmp/V) | 41.62 |
| Maximum Power Current (Imp/A) | 12.98 |
With stronger resistance against hotspots and excessive temperature, Singfo modules maintain high reliability.
Higher output power
More reliable, more stable
power generation
Less shading effect
Lower temperature coefficient
Your Best Choice for C&I Projects
High customer value
High power up to 560W
High reliability
High energy yield

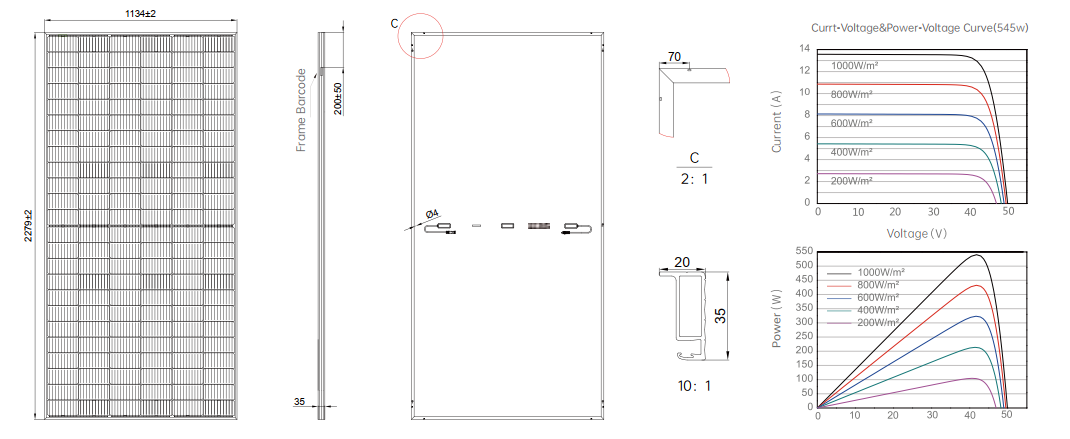

Mechanical Parameters
Cell Type: P-type PERC Monocrystalline
Number of Half Cells: 144 (2x72)
Module Size: 2279mmx1134mm x 35mm(30mm)
Weight: 27.3kg
Maximum System Voltage: 1500V
Glass: 3.2mm Coated tempered glass
Frame: Anodized aluminum alloy

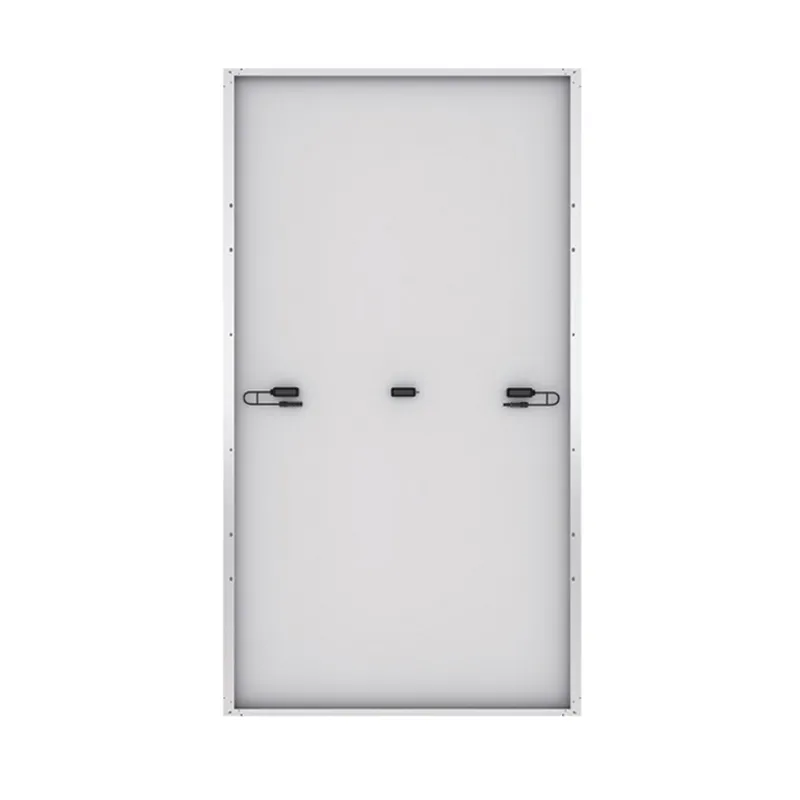

Junction Box: IP68 standard (3 bypass diode)
Output Cable: 4mm2/300mm
Connector: MC4 or (Compatible with MC4)
Hailstone Test: 25mm Hailstone at the speed of 23m/s
Mechanical Load: Max. Snow load 5400 Pa, Max. Wind load 2400 Pa
ELECTRIC CHARACTERISTICS (STC Test)
| Module type | SF2-540-560W | |||||
| Maximum power (Pmax/W) | 540 | 545 | 550 | 555 | 560 | |
| Open Circuit Voltage-Voc(V) | 49.55 | 49.75 | 49.95 | 50.10 | 50.25 | |
| Short Circuit Current-lsc(A) | 13.89 | 13.97 | 14.05 | 14.12 | 14.19 | |
| Maximum Power Voltage (Vmp/V) | 41.62 | 41.80 | 41.97 | 42.12 | 42.28 | |
| Maximum Power Current (Imp/A) | 12.98 | 13.05 | 13.11 | 13.18 | 13.25 | |
| Module Efficiency (%) | 20.90 | 21.10 | 21.30 | 21.50 | 21.70 | |
WANT TO SPEAK TO US?
We specialize in solar energy solutions for whole complete set with solar panel, inveter, battery, bracket, cable etc.
Acceptable for customized dimensions and power in solar panel, adjustable for solar power system configuration base on your real situation.
