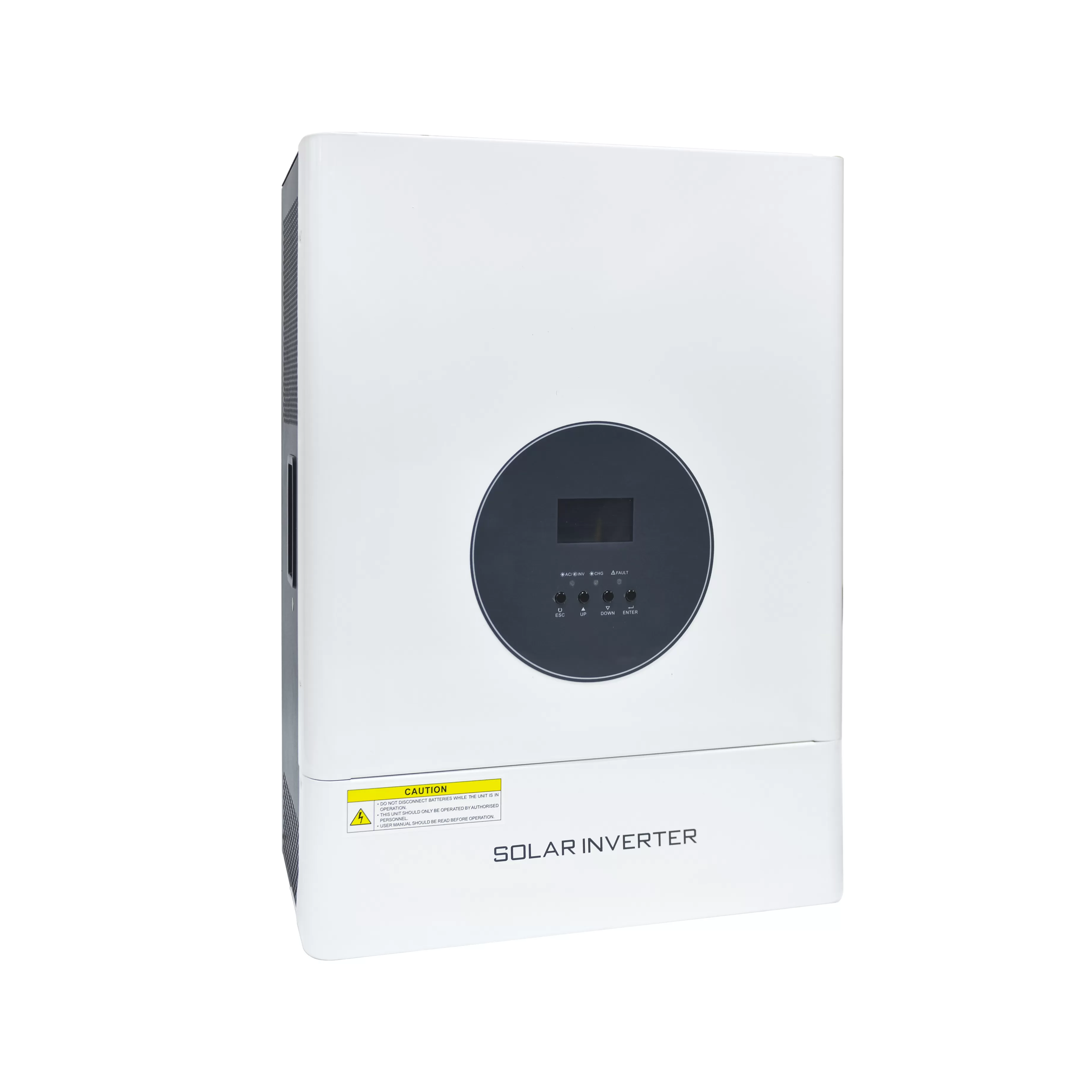

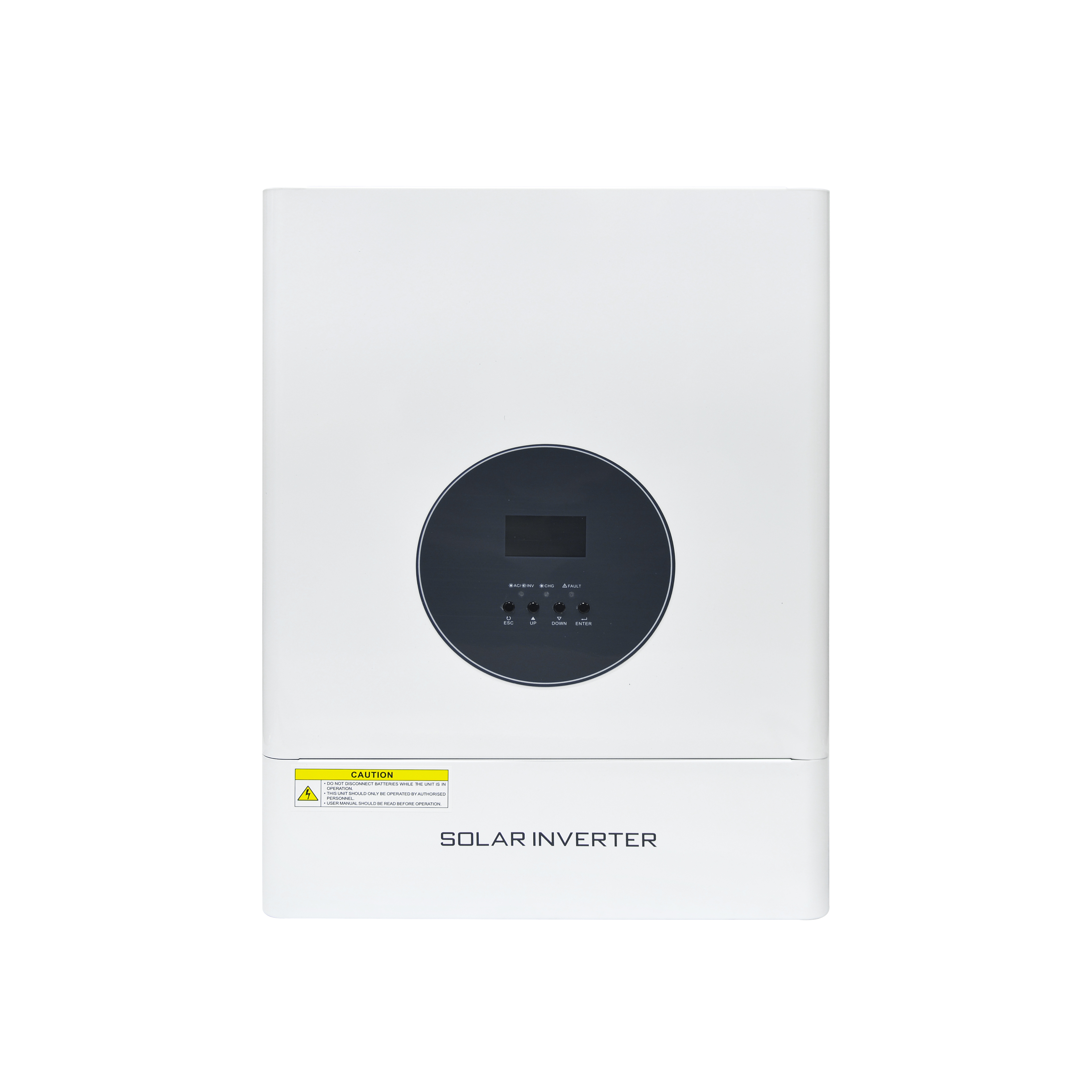

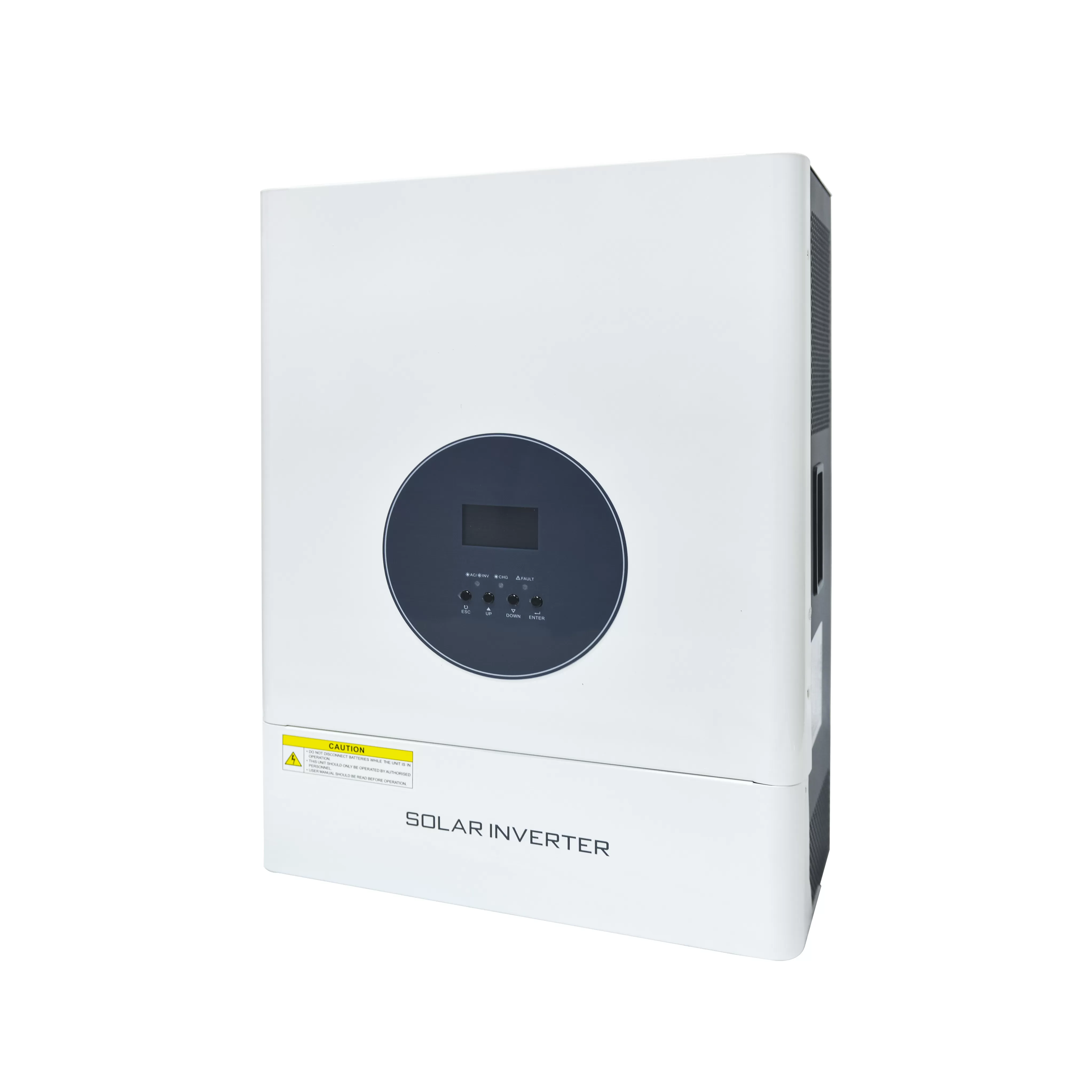

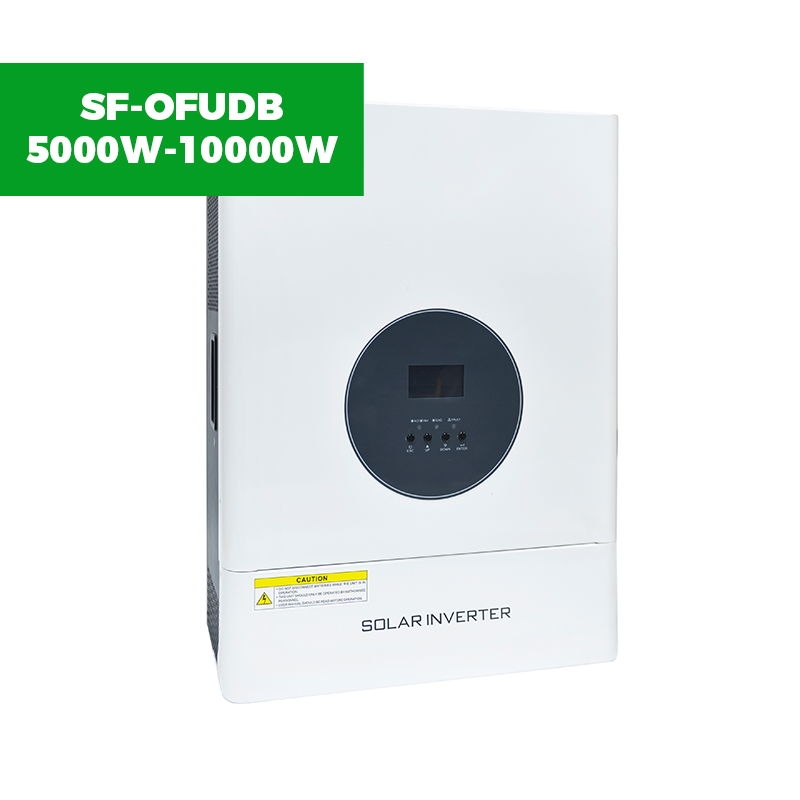

The SF-OFUD 5000W-10000W is pure sine wave output, compatible with sensitive equipment, support seamless switching between battery inverter and mains power (≤20ms).

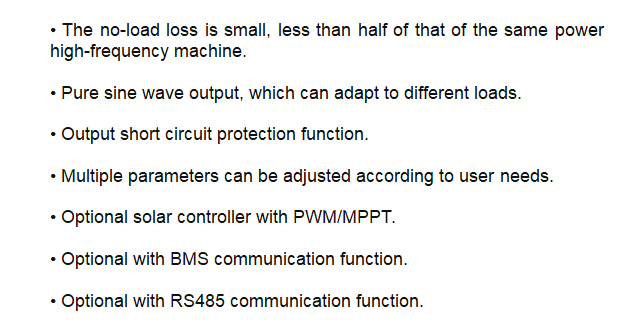

Product features
Pure sine wave output
Can support WIFI/ GPRS
MPPT efficiency max 98%
BMS function for lithium battery
DC start &. automatic self-diagnostic function
Automatically send signal to start generator
High efficiency design for optimized battery performance
Selectable charging current based on applications
AC start-up voltage auto restart voltage
lead acid battery/Lithium battery
| Model | SF-OFUD5 | SF-OFUD8 | SF-OFUD10 | ||
| AC Input voltage | 220VAC(standard) | ||||
| Input voltage range | 154-264VAC±3V(Nor Model) 185-264VAC±3V(UPS Model) 110V Model:77-132VAC±3V(Nor Model) 92-132VAC±3V(UPS Model) | ||||
| Input frequency | 50/60Hz±5% | ||||
| Out put power | 5000W | 8000W | 10000W | ||
| AC model output Voltage | The output voltage under the mains is the same as the input voltage | ||||
| AC model output frequency | The output frequency under the mains is the same as the input freguency | ||||
| Battery model output voltage | 220VAC+10%(customizable 110VAC+10%) | ||||
| Battery model output frequency | 50HZ or 60HZ+1% | ||||
| Battery model output wave | Pure sine wove | ||||
| Battery type | External lead-acid battery,Gel battery,water battery or Lithiun battery | ||||
| Battery voltage | 48VCD | ||||
| Battery charging voltage | 54.8VDC | ||||
| Maximum PV array power | 48V:6400W | ||||
| Solar input voltage range | 12V:MPPT 15V-I0VDC 24V:MPPT 30V-I50VDC 48V:MPPT 60V-I50VDC | ||||
| Maximum PV Display Open Circuit Voltage | 12V:PWM 50VDC 24V:MPPT I50VDC 48V:MPPT I50VDC | ||||
| Maximum solar charging curent | 120A | ||||
| Maximum AC Charge Current | 52A | 83A | 104A | ||
| Transter time | ≤10ms（UPS Mode）/≤20ms（INV Mode) | ||||
| load peak ratio | (MAX)3:1 | ||||
| Protective function | Under the mains:input over current fuse Under inverter: overload protection,short circuit protection,low voltage protection, (with battery anti-reverse connection, board). | ||||
| Status Display | You can view parameters such as AC voltage,ACtrequency,PV voltage,Pv curent output voltage. output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||
| Voice prompt | low battery protection buzzer long beep Blow battery buzzer beeps every second Machine fault burzer beeps Overioad buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output wil be turned off after 30s. When the overioad is greater than 150%, the output will be turned off after 300ms. | ||||
| Operating temperature | (-10℃-50℃) | ||||
| Storage temperature | ( -15℃-45℃) | ||||
| Relative temperature | (-10°C-90°C) no condensation | ||||
| Noise | <45dB | ||||
