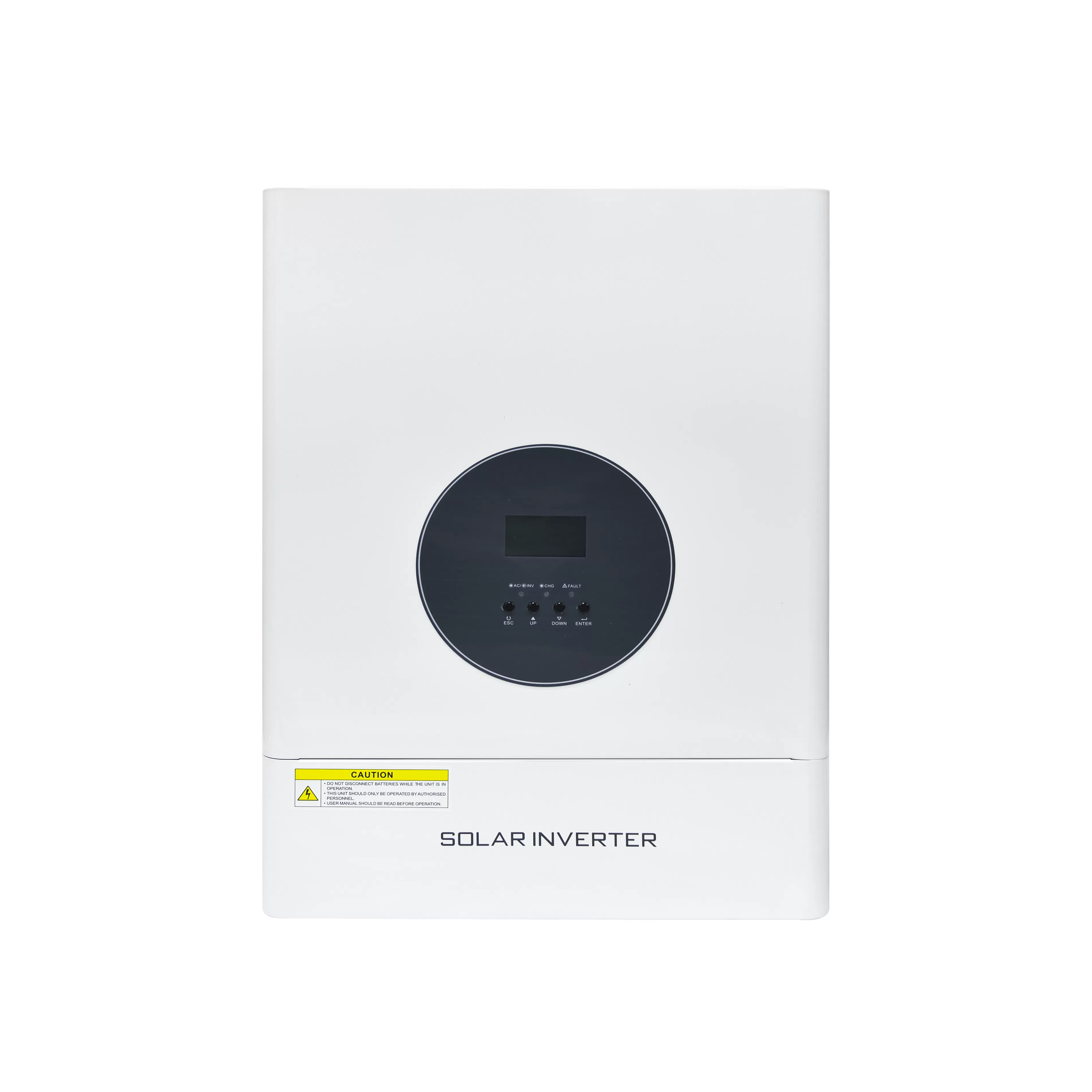

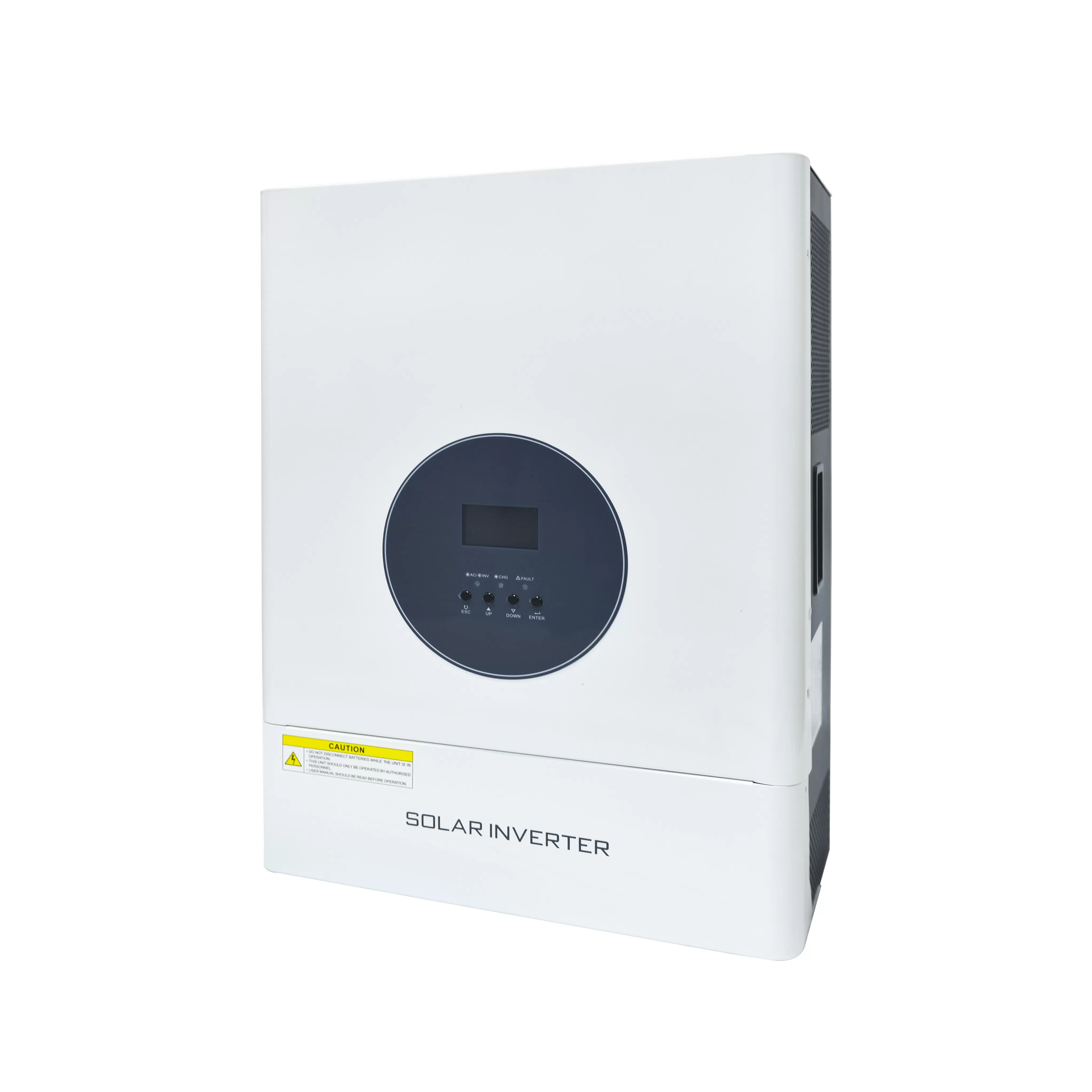

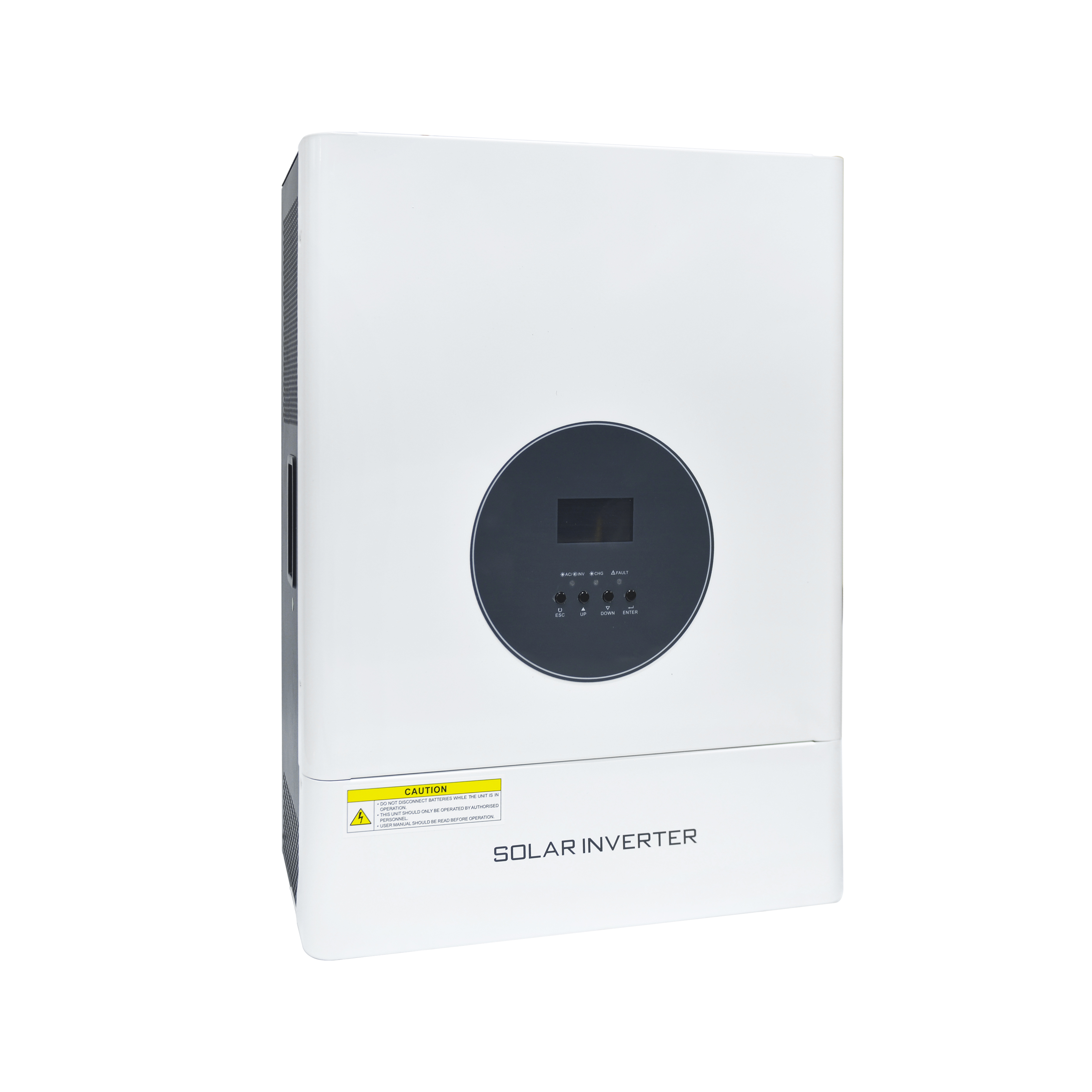

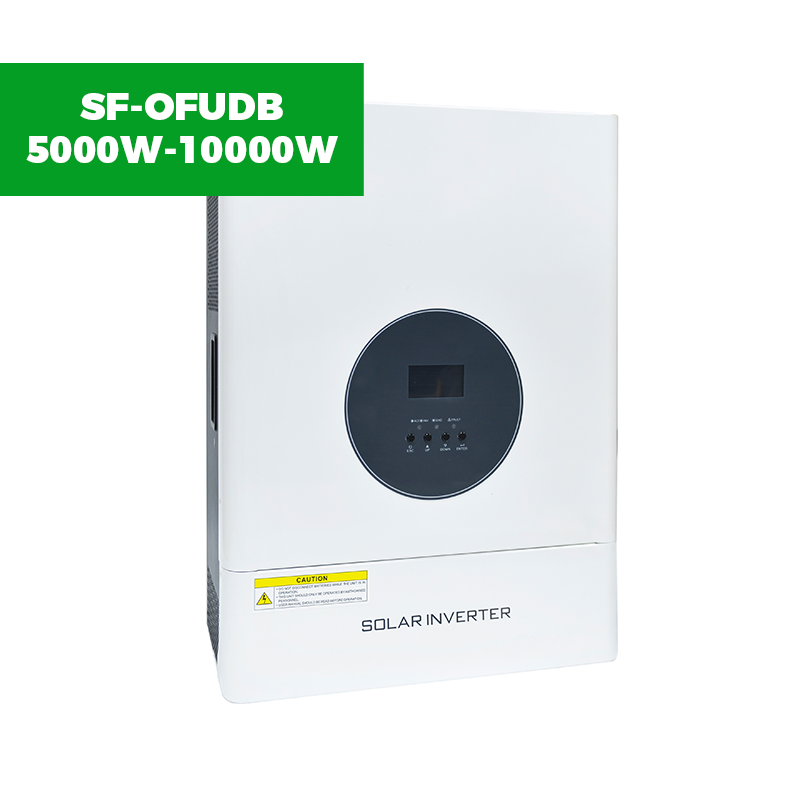

The SF-OFUDB 5000W-10000W's parallel funtion is optional, the input voltage covers 90-275VAC (170-275VAC in UPS mode), compatible with global power grids, and 50/60Hz self-adaptive.
Product features
Pure sine wave output
Self design PCB board and cooling system
MPPT efficiency max 98%
BMS function for lithium battery
High Efficiency Design &."Power Saving Mode’’ to Conserve Energy
Auto Restart when Ac in recovering
Parallel Function Up to Maximum 9 Units
Selectable charging current based on applications
AC start-up voltage auto restart voltage
Supports lithium battery communication and external WIFI
| Model | SF-OFUD5B | SF-OFUD10B | |||
| AC Input voltage | 220VAC(standard) | ||||
| Input voltage range | 90-275VAC±3V(Nor Model) 170-275VAC±3V(UPS Model) | ||||
| Input frequency | 50/60Hz±5% | ||||
| Out put power | 5000W | 10000W | |||
| AC model output Voltage | The output voltage under the mains is the same as the input voltage | ||||
| AC model output frequency | The output frequency under the mains is the same as the input freguency | ||||
| Battery model output voltage | 220VAC+10% | ||||
| Battery model output frequency | 50HZ or 60HZ+1% | ||||
| Battery model output wave | Pure sine wove | ||||
| Battery type | External lead-acid battery,Gel battery,water battery or Lithiun battery | ||||
| Battery voltage | 48VCD | ||||
| Battery charging voltage | 56.4VCD (The range can be set: 48V-61V) | ||||
| Maximum PV array power | 3200W | 6400W | |||
| Solar input voltage range | 48V:MPPT 60V-150VDC(customize 200VDC) | ||||
| Maximum PV Display Open Circuit Voltage | 48V: MPPT150VDC(customize 200VDC) | ||||
| Maximum solar charging curent | 60A | 120A | |||
| Maximum AC Charge Current | 30A | 60A | |||
| Transter time | ≤10ms（UPS Mode）/≤20ms（INV Mode) | ||||
| load peak ratio | (MAX)3:1 | ||||
| Protective function | Under the mains:input over current fuse Under inverter: overload protection,short circuit protection,low voltage protection, battery reverse connection protection(fuse). | ||||
| Status Display | You can view parameters such as AC voltage,ACtrequency,PV voltage,Pv curent output voltage. output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||
| Voice prompt | low battery protection buzzer long beep Blow battery buzzer beeps every second Machine fault burzer beeps Overioad buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output wil be turned off after 30s. When the overioad is greater than 150%, the output will be turned off after 300ms. | ||||
| Interface | RS232.lithium battery BMS comunication, parallel interface,dry junction card | ||||
| Operating temperature | (-10℃-50℃) | ||||
| Storage temperature | ( -15℃-45℃) | ||||
| Relative temperature | (20%-95%) no condensation | ||||
| Noise | <45dB | ||||
| size (L*w"H)mm | 527*330*149mm | 545*400*200mm | |||
